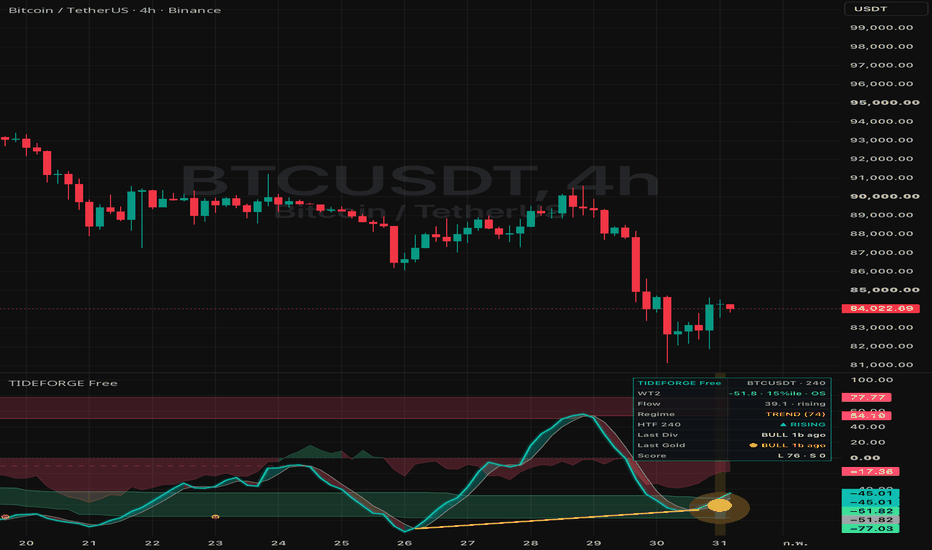

TIDEFORGE [ThrowMaster]TIDEFORGE — Adaptive WaveTrend Confluence Context
════════════════════════════════════════════
WHAT IT IS
════════════════════════════════════════════
TIDEFORGE Free is a context and confluence oscillator built on the classic WaveTrend engine, redesigned around one idea: fixed overbought/oversold numbers do not travel. A level that means "exhausted" on BTC 4H means nothing on a low-cap altcoin on 15m — yet most WaveTrend-family tools hard-code the same numbers for every market and every era.
This tool replaces every fixed threshold with self-calibrating percentile bands, reads the market through five independent dimensions, and fuses them into a single 0–100 confluence score. It does not print buy/sell signals and has no TP/SL. Instead it prints hints — attention markers that light up when several independent conditions align at once — so you look at the right place at the right moment and make your own decision.
════════════════════════════════════════════
HOW IT WORKS
════════════════════════════════════════════
1. WaveTrend core — the proven momentum engine (channel 9 / average 12 / smooth 3 on hlc3), kept exactly as the classic.
2. Adaptive bands — overbought/oversold are percentiles of WT2 (85th/96th and 15th/4th by default) over a rolling calibration window (300 bars). The zones breathe with each symbol and timeframe instead of forcing one number onto every chart. The bands you see are the actual live thresholds.
3. Real money flow — a true volume-based Money Flow Index, not a candle-body imitation. On symbols without volume data the script automatically falls back to a body-flow proxy mapped onto the same 0–100 scale and keeps working. The engine also detects absorption (new price low while flow refuses to make a new low) and distribution (the bearish mirror).
4. Regime awareness — a Kaufman Efficiency Ratio, percentile-ranked over the same calibration window, classifies conditions as RANGE / MID / TREND, so mean-reversion evidence is weighted with context instead of being trusted blindly inside strong trends.
5. Higher-timeframe anchor — WaveTrend bias from a higher timeframe of your choice, read strictly from the last completed HTF bar (lookahead off).
6. Structure — regular and hidden divergences detected on WT2 only. One source, one voice: no double counting the same momentum information across multiple correlated oscillators. Each divergence contributes to the score with linear decay over a memory window, then expires.
Each dimension contributes points — Zone 30 · Flow 20 · Divergence 25 · HTF 15 · Regime 10. Nothing vetoes anything: evidence votes. When WaveTrend crosses on a confirmed bar, the score is sampled:
• Hint (small circle) — moderate confluence.
• Strong hint (diamond, with a soft background flash) — high confluence.
════════════════════════════════════════════
GOLD MARKERS
════════════════════════════════════════════
The community-famous "gold circle" concept, re-engineered adaptively. A GOLD Bull prints when a confirmed regular bullish divergence has its origin pivot inside the extreme oversold percentile zone (capitulation territory) and money flow confirms (absorption or rising flow). GOLD Bear is the exact mirror on the extreme overbought side.
Because all three ingredients — extreme zone, divergence, flow — must coincide, GOLD markers are rare by construction. They are the strongest "look here" this tool can give. They are context, not commands.
════════════════════════════════════════════
NON-REPAINT POLICY & LIMITATIONS
════════════════════════════════════════════
• All events fire on confirmed bars only. Nothing flickers intra-bar.
• Higher-timeframe values come exclusively from completed HTF bars (lookahead off).
• Divergence connector lines are drawn back to their pivots for visual context — structure is only knowable in hindsight. The event, its marker, and its score contribution fire at the confirmation bar, never earlier. A pivot confirms Pivot-Right bars after it forms; this delay is the honest price of a non-repainting divergence.
• The first ~300 bars are a calibration period. Markers intentionally stay silent until the percentile bands are statistically meaningful.
• The dashboard updates live by design (display layer only, not a signal).
• This is an educational context tool. It makes no predictions and no performance claims. Markets carry risk — always do your own analysis and manage your own risk.
════════════════════════════════════════════
HOW TO USE
════════════════════════════════════════════
Load it on any symbol and timeframe and let it calibrate. Read the dashboard: WT2 value with its live percentile and zone, flow state, regime, HTF direction, last divergence, last GOLD, and the live long/short scores. Treat hints as invitations to analyze, GOLD as rare high-context moments, and combine everything with your own structure, levels, and risk plan. A Compact Mode is included for TradingView on mobile.
All thresholds are exposed as inputs with tooltips, but the defaults are deliberate — resist the urge to tune before you have watched enough live bars to know what you are tuning.
════════════════════════════════════════════
WHAT MAKES IT ORIGINAL
════════════════════════════════════════════
• Self-calibrating percentile bands replacing fixed overbought/oversold levels — the thresholds adapt per symbol and timeframe, and you can see them breathe on the chart.
• Orthogonal evidence design: one momentum voice (WaveTrend), one flow voice (real volume MFI with automatic fallback), one regime voice (Efficiency Ratio), one HTF voice, one structure voice — instead of stacking correlated oscillators that repeat each other.
• Additive confluence scoring with decaying divergence memory, sampled at confirmed crosses — no all-conditions-must-align gates.
• The gold-circle concept rebuilt on adaptive percentile logic with flow confirmation, plus a bearish mirror.
• Strict non-repaint discipline across every layer, disclosed honestly above.
════════════════════════════════════════════
CREDITS
════════════════════════════════════════════
Ground-up Pine Script v6 re-engineering inspired by "VuManChu B Divergences" by VuManChu, which itself builds on LazyBear's WaveTrend Oscillator, with concepts from dynausmaux, falconCoin, RicardoSantos, LucemAnb and andreholanda73. Published open-source with respect and gratitude to that lineage.
مؤشر
مؤشر
مؤشر

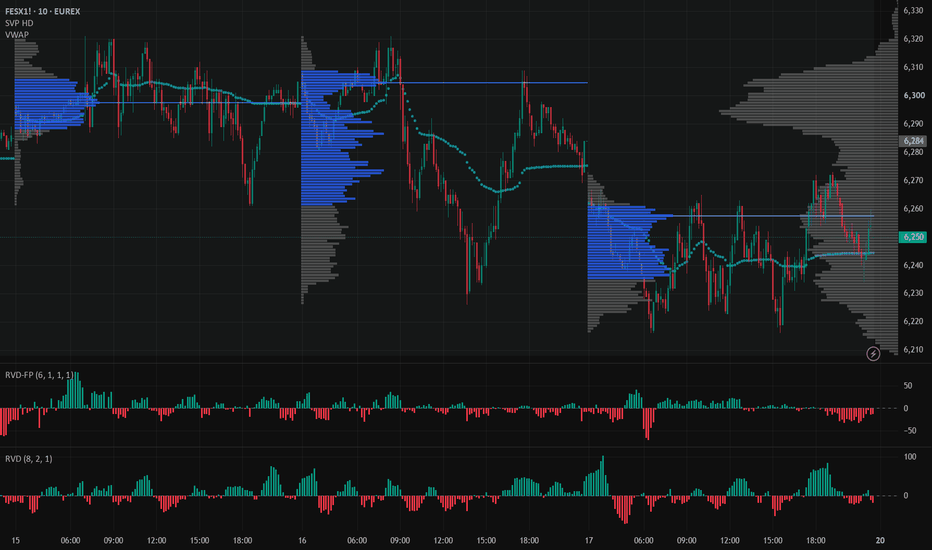

Rolling Volume Delta█ OVERVIEW
Rolling Volume Delta (RVD) estimates net buying vs. selling pressure per bar, then weights that pressure by how much price actually moved — so a strong directional bar counts for more than a quiet, indecisive one. The result is summed over a rolling window, smoothed, and normalized against total volume so it reads consistently across different instruments and volume regimes.
█ CONCEPT
Most volume delta tools estimate buy/sell pressure and stop there. RVD adds one more step: it multiplies each bar's estimated delta by the magnitude of that bar's price change. The logic is that a bar where buyers dominate AND price actually moved higher represents more conviction than a bar with the same buy/sell split during a flat, choppy stretch. That weighted delta is then summed over a rolling window and smoothed, so the final line reflects sustained pressure rather than single-bar noise.
█ HOW IT WORKS
1. Buy/sell split: each bar's volume is divided between buy and sell based on where the close landed within that bar's high-low range (close near the high = buy-weighted, close near the low = sell-weighted).
2. Price weighting: that delta is multiplied by the percentage price change over a configurable lookback, so bars with bigger moves are weighted more heavily.
3. Rolling sum: the weighted delta is summed over a configurable lookback window.
4. Smoothing: an EMA is applied to reduce noise.
5. Normalization: the smoothed result is divided by total volume over the same window and expressed as a percentage, keeping the scale comparable across tickers and sessions.
█ HOW IT DIFFERS FROM OTHER VOLUME DELTA SCRIPTS
Other delta oscillators calculate buy/sell pressure and smooth it directly. RVD's price-weighting step means the indicator isn't just "how much delta happened" but "how much delta happened relative to how much the market actually moved" — filtering out high-volume, low-conviction chop from the signal.
█ SETTINGS
- Lookback Length — bars summed together for the rolling delta. Longer = smoother, slower.
- Smoothing — EMA length applied to the rolling sum.
- Momentum Lookback — bars back used to measure price change for weighting. Higher values emphasize sustained moves over single-bar spikes.
As bars carry more information on their own (higher timeframes), less summing and smoothing is needed for a clean read. Within any timeframe, trending conditions benefit from longer/smoother settings that confirm sustained pressure and filter chop, while ranging conditions benefit from shorter/quicker settings that catch reversals near the extremes at the cost of more false flips in the middle of the range.
Suggested starting points:
Timeframe | Condition | Length | Smoothing | Momentum Lookback
5-30 min | Trend / Price Discovery | 14-20 | 3-5 | 1-2
5-30 min | Range / Accumulation | 8-10 | 1-2 | 1
1-4 hour | Trend / Price Discovery | 10-14 | 2-3 | 2-4
1-4 hour | Range / Accumulation | 6-8 | 1-2 | 1-2
Daily+ | Trend / Price Discovery | 8-10 | 2 | 3-5
Daily+ | Range / Accumulation | 5-6 | 1 | 2
These are included in each input's tooltip in the settings popup as well.
█ NOTES
This is a volume-estimation tool based on standard OHLCV data (bar range and close position), not true tick-level buy/sell data — most retail data feeds don't provide that, so this is the same practical tradeoff most public volume delta scripts make. It's intended as a context tool for reading order flow alongside price action, not a standalone signal generator.
This publication is for educational purposes only and does not constitute financial advice. Past performance and visual patterns do not guarantee future results. مؤشر
مؤشر
مؤشر
مؤشر
Candlestick Edge Auto-Preset MTF Self-CalibratingCandlestick Edge only fires a candlestick pattern when it is "rightly placed" — confirmed by a higher-timeframe trend AND by where price sits in the developing volume profile. Then it does what most pattern tools don't: it forward-tests every signal and reports the MEASURED edge per pattern, so you read realized performance instead of a marketing claim.
WHY THIS IS ONE TOOL (not a bundle)
The parts answer one question about one candle: "is this pattern in a place that has historically paid, and does it beat a coin-flip here?"
PATTERN detection says WHAT printed (24 classic candlestick patterns).
HTF ALIGNMENT says whether the bigger trend agrees.
VOLUME-PROFILE POSITIONING says WHERE it printed — reversals only at value-area edges, naked POC, HVN support/resistance, or liquidity sweeps; continuations only through low-volume voids or on a value breakout.
The CALIBRATION SPINE forward-resolves each signal with a triple barrier and reports Hit% vs a matched Base% (Edge) with a Wilson confidence interval, so a placed-and-confirmed pattern can be told apart from a small-sample fluke.
One pattern substrate, one location read, one calibration spine.
MEASUREMENT (the differentiator)
Each signal opens at close with target = ±TP·ATR, stop = ∓SL·ATR, over a fixed horizon. The first barrier touched decides win/loss (same-bar tie counts as the stop — conservative). Base% is the unconditional same-barrier win-rate for that direction. Edge = Hit% − Base%; a "*" marks rows whose Wilson 95% lower bound clears the base rate. A leave-one-out row prices each filter's marginal contribution, and a footer lists only the patterns that are green AND have enough samples to trust in the current configuration.
AUTO PRESET (default on)
Candlestick edges are timeframe-specific. Auto Preset reads the chart's timeframe and switches on the pattern subset plus higher-timeframe distance that performed best for that timeframe in the author's study of NSE index futures, and forces the two filters on. Turn it OFF for full manual research mode: all 24 patterns selectable, filters and HTF distance (3x / 5x / 15x / custom) under your control. Nothing is ever removed — the preset only curates which patterns are active by default per timeframe.
HOW TO USE
Leave Auto Preset on and read the labelled signals (teal = bullish, red = bearish, each tagged with the pattern name). Open "Show scoreboard" to see measured Edge per pattern — trust the EDGE column and the "*", never a raw hit-rate. Best behaviour is on intraday timeframes (1H and below).
ORIGINALITY
Standard techniques are credited below. What is original is the combination: a location-gated pattern engine whose every signal is forward-calibrated, a timeframe-adaptive auto-preset, a leave-one-out filter attribution, and an auto-surfaced tradeable set — measured edge, not asserted.
NON-REPAINT
Signals open on confirmed bars; triple-barrier outcomes resolve on bars AFTER the trigger; all higher-timeframe / lower-timeframe / prior-day-POC requests use lookahead_off and confirmed intrabars. Pivots used by sweeps confirm first.
DATA & MARKETS
Runs on any symbol that reports volume; the developing profile needs volume to be meaningful. Defaults are tuned for intraday index futures. On the Enhanced data tier the delta read uses intrabar aggregation (richer on paid plans) and auto-falls-back to an OHLCV proxy when intrabars aren't served — safe to leave on for any plan.
CONCEPT CREDITS (methods operationalized — original Pine re-derivations)
Candlestick patterns — Nison; pattern-performance framing per Bulkowski
Market / auction profile, POC / Value Area — Steidlmayer; Dalton
Bulk Volume Classification — Easley, Lopez de Prado & O'Hara (2012)
Triple-barrier labelling — Lopez de Prado
Wilson score interval — Wilson (1927)
HONESTY / LIMITS
The profile is an ATR-binned developing session profile (not tick POC). Delta is an estimate (proxy or intrabar reconstruction), not true bid/ask. Reported edge is context measured on loaded history — not a prediction or a promise. The preset defaults were tuned on one instrument over a recent window, so treat them as a well-measured hypothesis, not proven alpha.
Educational tool. Not financial advice — you alone are responsible for your trading decisions. مؤشر

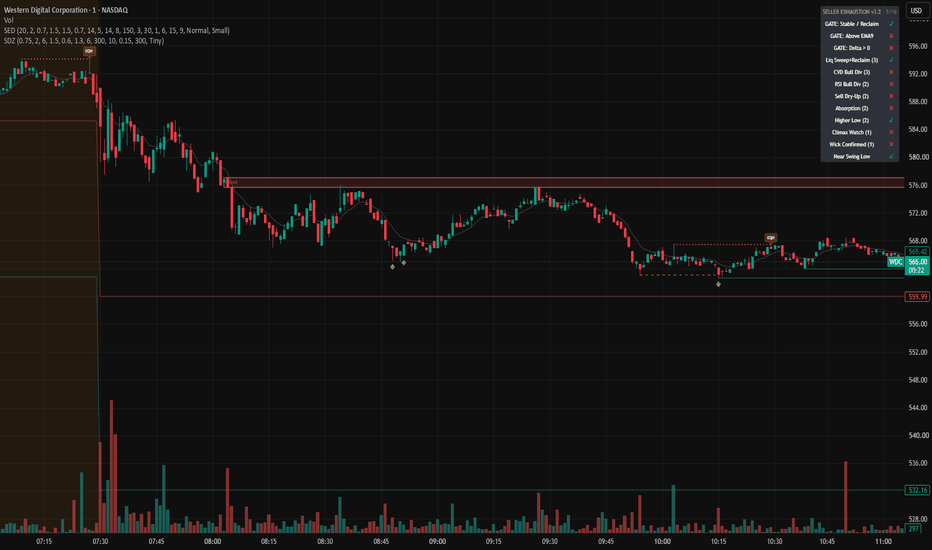

Seller Exhaustion DetectorSeller Exhaustion Detector (SED)
Overview
Seller Exhaustion Detector identifies the point where a downtrend's selling pressure is spent and buyers begin absorbing supply — the transition from distribution to accumulation. Instead of reacting to a single pattern, it scores seven independent exhaustion footprints and only confirms a signal when structural gates prove the low is actually holding.
How It Works
The detector scores confluence across a 16-point scale:
Liquidity Sweep + Reclaim (3 pts) — tracks untapped pivot-low liquidity pools; a wick below a pool followed by a close back above it marks a stop run absorbed by passive buyers.
CVD Bullish Divergence (3 pts) — price makes a lower low while session-reset cumulative volume delta makes a higher low: sell orders are no longer moving price.
RSI Bullish Divergence (2 pts) — momentum fails to confirm the new price low.
Sell-Volume Dry-Up (2 pts) — red-candle volume contracts near the lows; motivated sellers are done.
Absorption (2 pts) — elevated volume, compressed range, close in the upper half: supply being eaten without downside progress.
Higher Low (2 pts) — first structural higher pivot after the low.
Selling Climax Watch (1 pt) and Confirmed Wick Rejection (1 pt) — capitulation context and next-bar-confirmed hammer rejections.
A score alone never fires a signal. Three hard gates must also pass: the low must have held for a configurable number of bars (or a fresh sweep-reclaim substitutes as confirmation), price must be above a rising/flat EMA9, and fast volume delta must be positive. This eliminates premature signals printed while price is still making new lows.
Signals
Orange circle — selling climax (capitulation bar; watch window begins)
Gold diamond — liquidity pool swept and reclaimed
EXHAUSTION label — confirmed exhaustion (score + all gates)
ACCUMULATE label — post-exhaustion structure reclaim with positive delta
STOP-OUT label — the exhaustion low broke; the signal is invalid
Dashboard — live score breakdown and gate status, with selectable text size
Recommended Use
Built for 1-minute to 5-minute intraday charts on liquid symbols. Use EXHAUSTION as location, ACCUMULATE as trigger, and the invalidation print as a hard exit reference. Tune Climax Multiplier down (~1.7) and Pivot Left/Right to 3–4 for faster symbols.
Limitations
Volume delta is approximated from candle direction (up-volume minus down-volume), not exchange bid/ask data, so absorption and CVD reads are estimates. All components are derived from OHLCV and confirm after the fact by design — the detector locates high-probability reversal conditions; it does not predict bottoms. Not financial advice. مؤشر
مؤشر
مؤشر
Burst Size Flow Divergence Large vs Small CVDOverview
A single cumulative-delta line tells you net buying or selling, but hides who is doing the pushing. Burst-Size Flow Divergence splits the flow inside each bar by the size of each volume burst — small / medium / large sub-intervals — and runs a separate signed delta on each tier. The signal is the divergence between the large-burst delta and the small-burst delta: concentrated bursts leaning one way while trickle flow leans the other. It is a flow-structure read, not a signal to trade alone.
What this is — and is NOT (read this before using)
This measures activity-burst size, not per-trade size. Pine cannot see individual trades — it sees a bar's volume and, via lower-timeframe requests, the volume of each sub-interval within the bar. "Large" here means a sub-interval that printed a lot of volume relative to normal — not a large single trade, and not "institutional." Institutions deliberately slice big orders into many small child-orders, so burst size is a proxy, not proof of who is behind the flow. The classification is honest about this, and the built-in harness is there precisely to test whether the divergence carries any information rather than to assert that it does.
Why these components are ONE tool (mashup justification)
Each stage exists because the previous one is ambiguous on its own:
Intrabar bucketing. Each lower-timeframe sub-bar is classed small/medium/large by its volume against an adaptive average, so "large" means large for this symbol and session, not a fixed lot count. A fixed threshold would misclassify on every instrument and every volatility regime.
Per-tier directional imbalance. Each tier gets its own signed delta (up sub-bar → +volume, down → −volume), expressed as net ÷ gross in — what fraction of that tier was net buying versus selling. Normalising this way lets the tiers' directions be compared apples-to-apples even though the large tier moves far less total volume than the small one.
The divergence. The large-minus-small spread is the object. Three separate delta lines would just be clutter to eyeball; the disagreement between the concentrated and the trickle flow is the actual read, so the tool computes it directly.
The calibration harness. "Concentrated bursts are informed" is a hypothesis, not a law — so when the spread is strong, the harness checks forward whether price actually followed the large tier more than the unconditional base rate, and reports Hit / Base / Edge on confirmed bars. That's what turns the divergence from a story into something you can verify on your instrument.
How it works
For each chart bar the finest available sub-bars are requested. Each is signed by close-versus-open (a tick-rule aggressor proxy) and bucketed by volume against the adaptive average. Per-tier signed volume becomes a net÷gross imbalance in , the large-minus-small spread is smoothed into the oscillator, and a strong gated spread is the divergence signal.
How to use it
Read the histogram (the large-minus-small spread): green means large bursts are accumulating while small flow lags or sells; red means large bursts are distributing. The bold line is the large-tier imbalance, the faint line the small tier. A gated turn in the spread suggests concentrated flow is leading, and is marked in the pane and — optionally — on the price chart. Always check the Coverage row (how much real sub-bar resolution the current bar received) and the Edge row (whether the divergence has actually led on this instrument). It is never a standalone trigger.
Plan-adaptive & data note
Sub-bar precision auto-selects the finest your plan serves (seconds on Premium+, else 1-minute). Lower-timeframe data exists only for recent bars, so older bars fall back to whole-bar flow and the coverage read shows it. The tool needs an instrument with real volume — a cash index reports none, so use the futures. The adaptive average and the calibration harness advance only on confirmed bars, so they never drift or inflate intrabar. Edge is in-sample, no costs — a study aid, not a backtest.
Originality
The parts are public: cumulative volume delta, the close-vs-open (tick-rule) aggressor proxy, and the general idea of size-partitioned / flow-toxicity order flow. What's assembled here is the specific construction — the adaptive intrabar size-tiering, the net÷gross per-tier imbalance that makes tiers of very different volume directly comparable, the large-minus-small divergence as the headline object, and the forward-calibration harness that scores it against the base rate. This is a clean-room implementation; no third-party Pine code is reused.
Concept credits
Cumulative Volume Delta — standard order-flow technique.
Close-vs-open (tick-rule) aggressor classification — after the classic trade-sign literature (Lee & Ready).
Size-partitioned / flow-toxicity order flow (VPIN) — Easley, López de Prado & O'Hara.
Disclaimer
Research and educational tool only. Not financial advice, no recommendation, no guarantee of results. Burst size is not trade size and does not identify institutions versus retail; the up/down sign is a close-vs-open proxy for the aggressor, not the true tape. Indicators describe past behaviour; they do not predict the future. Trading carries risk of loss. Test out-of-sample and make your own decisions. The author accepts no liability. مؤشر
Intrabar Profile [Kioseff Trading]Hello Traders!
🔹 Intrabar Profile
Intrabar Profile is a lower-timeframe profile tool designed to draw a volume profile or delta profile on each individual candle .
Instead of only looking at where a candle opened, closed, wicked, or changed color, this indicator attempts to show:
Where did volume actually trade inside the bar?
It focuses on answering a deeper question:
What happened inside the candle that normal candlesticks do not show?
volume profile on every visible bar
delta profile on every visible bar
lower-timeframe volume distribution
POC detection per candle
value area visualization
buy-side vs sell-side imbalance display
optional volume-at-level labels
adaptive scaling as the chart zooms in or out
🔹 What the indicator shows
🔸 Intrabar Volume Profile
The indicator reconstructs a mini volume profile for each candle using lower timeframe data.
This allows you to see:
where volume was concentrated inside each bar
which price level had the highest volume
how volume was distributed across the candle range
whether volume was balanced or concentrated near specific levels
This shifts your perspective from:
“this candle closed bullish or bearish”
to:
“where did participation actually take place inside this candle?”
🔸 POC Per Candle
Each intrabar profile includes a Point of Control , or POC.
The POC marks the price level inside the candle where the highest amount of volume was detected.
This helps identify:
where the most trading activity occurred inside the bar
whether volume was concentrated near the high, low, or middle of the candle
potential areas of intrabar acceptance or rejection
where participation clustered before price moved away
🔸 Value Area Per Candle
The indicator can also display a value area for each profile.
The value area is calculated from total volume and highlights the region where the majority of volume occurred inside the bar.
This helps separate:
high-participation areas
lower-participation areas
balanced candles
thin or inefficient areas of the candle
Together, the POC and value area help show the internal structure of each candle instead of only the candle body and wick.
🔸 Intrabar Delta Profile
Intrabar Profile can also switch from standard volume profile mode to delta profile mode .
Delta mode estimates buy-side and sell-side pressure using lower timeframe price movement and volume.
This allows you to see:
where positive delta appeared inside the candle
where negative delta appeared inside the candle
whether aggressive activity was concentrated at the top, middle, or bottom of the bar
when total volume and directional pressure tell different stories
This can help answer:
Was volume only present, or was it meaningfully skewed toward buyers or sellers?
🔸 Volume Profile vs Delta Profile
The indicator includes two profile modes:
VP - displays total volume distribution inside each candle
Delta - displays directional volume imbalance inside each candle
Volume profile mode focuses on:
where participation occurred
where volume was concentrated
where the candle’s POC and value area formed
Delta profile mode focuses on:
which side had more pressure
where buy-side or sell-side imbalance appeared
whether pressure was distributed evenly or concentrated at specific levels
🔸 Adaptive Mini Profiles
The profiles are drawn directly on top of the chart candles and are designed to stay proportional as the chart is adjusted.
This means the visual structure adapts as you:
zoom in
zoom out
stretch the chart
compress the chart
The goal is to keep the profile readable without turning the chart into visual clutter.
🔹 Granularity Options
The indicator uses lower timeframe data to build each intrabar profile.
Available granularity options include:
5-minute
1-minute
1-second
1-tick
Lower granularity can provide a more detailed reconstruction of intrabar activity, depending on the symbol and data available from TradingView.
Important Note
Some lower timeframe data options may require specific TradingView data access or plan availability. If a selected granularity is not available on your chart or account, the indicator can only work with the data TradingView provides.
🔹 How to read it
Each candle can be read as its own mini profile.
larger profile rows show more volume or stronger absolute delta
the POC marks the highest-volume level inside the candle
the value area highlights the primary participation zone
gray areas show volume outside the selected value area
positive delta shows stronger buy-side pressure
negative delta shows stronger sell-side pressure
This helps you compare:
where the candle closed
where the most volume traded
where delta was strongest
whether the candle’s appearance matches its internal activity
🔹 Example interpretations
bullish candle + volume concentrated near the high → possible acceptance higher
bullish candle + heavy volume near the low → possible absorption or delayed response
bearish candle + negative delta near the low → aggressive selling into the bottom of the bar
large candle + thin profile → fast movement with less balanced participation
small candle + heavy profile → high activity with limited price movement
strong delta but weak candle movement → potential absorption or opposition
🔹 Why this indicator is useful
Intrabar Profile gives you a way to look beyond standard candles.
It helps you see:
where volume formed inside each candle
where the candle’s POC developed
whether participation was concentrated or spread out
whether buyers or sellers dominated specific levels
how volume and delta behaved inside the bar
whether the candle’s structure supports or contradicts the price action
Instead of only asking:
“Did this candle close green or red?”
you can ask:
“Where did the trading actually happen inside this candle?”
🔹 Best use cases
studying intrabar volume structure
analyzing candle quality
identifying high-volume zones inside individual bars
spotting possible absorption or imbalance
comparing price action against internal volume distribution
enhancing volume profile, order flow, or liquidity-based analysis
🔹 Inputs you can customize
profile type: VP or Delta
granularity: 5-minute, 1-minute, 1-second, or 1-tick
number of profile rows
buy-side and sell-side colors
POC color
mini profile transparency
value area visibility
volume-at-level labels
🔹 Important note
This script uses lower timeframe data to approximate intrabar volume and delta structure.
This means:
accuracy depends on available lower timeframe data
different symbols may behave differently
1-second or tick data may not be available for every user or market
delta is estimated from lower timeframe price movement and volume
this is an analytical visualization tool, not a predictive engine
Closing Notes
Intrabar Profile is built to show the internal volume structure of each candle .
It helps turn a normal candlestick chart into a more detailed profile-based view of participation, imbalance, and intrabar activity.
As always, thank you TradingView! مؤشر

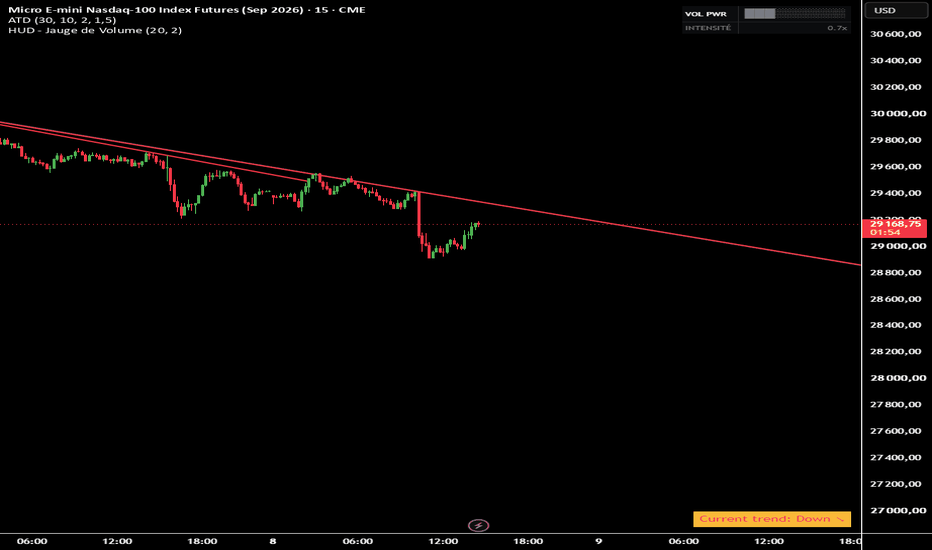

HUD - Jauge de VolumeL'Essentiel
Les histogrammes de volume classiques situés sous le graphique encombrent souvent l'espace de travail et nécessitent une charge cognitive supplémentaire pour comparer la taille des barres.
Cet indicateur supprime cette friction visuelle en remplaçant l'oscillateur traditionnel par un HUD (Head-Up Display) tactique et minimaliste, affiché directement sur le graphique. Il mesure le Volume Relatif (RVOL) en temps réel, permettant d'identifier instantanément les injections de liquidité et l'empreinte institutionnelle sans quitter l'action des prix des yeux.
⚙️ Le Moteur : Order Flow & RVOL
Le script ne se contente pas d'afficher le volume brut. Il calcule en permanence le ratio entre le volume de la bougie actuelle et sa moyenne mobile (RVOL).
C'est un outil redoutable pour les traders utilisant les concepts d'Order Flow ou la théorie de Wyckoff, car il met en évidence les anomalies de marché :
RVOL < 1.0 : Activité normale ou faible (souvent associé aux phases de compression).
RVOL > 1.5 : Pression anormale, début potentiel d'un mouvement impulsif.
RVOL > 2.0 : Injection massive de liquidité (climax, cassure de niveaux clés, ou absorption institutionnelle).
🖥️ Design & Interface Tactique
L'interface a été codée avec une approche "Dark Mode" translucide pour garantir un contraste maximal sans masquer les bougies. La jauge se remplit dynamiquement sur 10 segments avec un code couleur réactif :
⬜ Gris : Volume inférieur à la moyenne.
🟨 Jaune : Volume dans la moyenne (1.0x).
🟧 Orange : Pression haussière du volume (1.5x).
🟥 Rouge : Volume critique / Seuil d'alerte atteint (2.0x et +).
Par défaut, le dashboard est positionné en haut à droite pour optimiser l'espace de travail, mais le code peut être facilement adapté selon votre disposition.
🛠️ Paramètres Personnalisables
Période Moyenne du Volume : Détermine la fenêtre de calcul de la moyenne (par défaut : 20 périodes).
Seuil RVOL Max : Le niveau d'intensité requis pour remplir la jauge à 100% et déclencher la couleur rouge (par défaut : 2.0, soit 200% du volume moyen).
Optimisé pour le trading sur Futures (Indices, Métaux) et toute classe d'actifs où l'analyse de l'intensité du volume est critique. مؤشر
RVOL Candles | FALCON AIFalcon RVOL Candles — an educational volume study.
Most volume tools compare the current bar to a rolling average, which mixes the
busy market open with the quiet lunch hour and gives a distorted read. This study
does it differently: it compares each candle to the average volume at that SAME
time of day. The 9:30 bar is measured against past 9:30 bars, the 12:00 bar against
past 12:00 bars — like-for-like. That shows when a move is backed by genuine,
time-adjusted participation versus a low-liquidity drift.
How to read it:
• Extreme — volume ≥ 2× the time-of-day average (unusually heavy)
• High — volume ≥ 1.5×
• Normal — in between
• Low — volume ≤ 0.7× (quiet)
An optional top-right readout shows the live RVOL multiple and its tier.
Settings:
• Thresholds for each tier (multiples of the time-of-day average)
• Fully customizable colors
• Toggle the readout on/off
Notes:
• Works best on intraday timeframes, since it groups volume by time of day.
• Averages build as the chart loads more bars of each time slot — give it history
for a stable read.
• Chart study only: it does not place trades, does not backtest, and has no entry,
stop, target, or position-sizing logic. Your entry, your risk. Not financial advice. مؤشر
Strong Start RVOL Dashboard (Auto-Exchange)📢 Important Note: Adapted Replica
This script is an authorized and adapted replica of the original "Strong Start RVOL Dashboard" by @finallynitin . A huge thank you to him for approving this publication! You can check out his original work and implementation details here:
💡 What makes this version different? (The "Auto-Exchange" feature)
The main purpose of this adaptation is to remove the original script's restriction of using a forced default exchange (like NSE) for bare tickers.
With this update, there is no need to set a default exchange. If you paste a plain ticker, TradingView's global search engine will automatically resolve it and display the asset with the highest trading volume and market interest—exactly the same as when you search for a symbol manually on your chart.
📌 Best Practices for Watchlists:
US & Major Stocks: This automated system works flawlessly for common US equities and heavily traded assets. Just paste the ticker (e.g., AAPL, DELL, NVDA).
Dual-Listed or Low Volume Assets: If you are trading smaller names or assets listed across multiple global exchanges with lower volume, it is highly recommended to follow the original script's fully-qualified format to avoid any ambiguity: Exchange:Ticker (e.g., NYSE:DELL or NASDAQ:FROG).
⚠️ Notes & Limitations (Auto-Exchange Updates):
Double-check your list : Since the script automatically picks the exchange with the highest volume for bare tickers, it is always a good practice to double-check the results. You might be tracking a ticker from a different global exchange without realizing it.
Dynamic matching risk : TradingView resolves bare tickers dynamically based on current market interest and liquidity. If a low-volume stock you are tracking suddenly shares a ticker name with a highly active asset on another exchange, the script's selection might shift.
Absolute certainty : If you want to ensure 100% accuracy and lock a specific asset permanently into your dashboard, skip the auto-matching and manually input the exact Exchange:Ticker format.
مؤشر
Volume Force FieldVolume Force Field — TradingView publication kit
Volume Force Field turns a volume profile into a force map. A normal profile shows you where value is. This overlay shows you the net pull on price at every level — the slope of the volume landscape toward the nearest magnet — and then it measures, on your own history, whether that pull actually leads price. One plain-language panel tells a non-technical trader what it means at a glance.
What it plots
The force field — coloured bands across price. Green means price at that level is being drawn up toward a high-volume magnet; red means drawn down. Band opacity scales with how much volume sits there.
POC and magnets — the yellow line is the Point of Control (the single strongest magnet); green lines are secondary magnets; dashed red lines are low-volume ridges that price tends to cross quickly.
Value Area — the shaded band holding your chosen % of volume around the POC: the range where trade has been accepted.
Value centre ± band — a moving equilibrium (rolling VWAP / adaptive MA / EMA) with a σ band: the drift level price is pulled back toward.
Guidance panel — plain English: the current bias (pulling up / down / balanced), location vs value (inside / stretched above / stretched below), the nearest magnet and distance, and one line on what to watch.
Past signal marks — small triangles wherever the net pull historically turned strongly up or down, so you can eyeball how the field has behaved.
Why these components are one tool (not several indicators stacked)
Each part answers a question the others cannot, and removing any one breaks the read:
Volume kernel density builds a smooth value landscape whose peaks are magnets. Optional lower-timeframe slicing distributes each bar's volume across its true intrabar path; an optional half-life lets recent volume outweigh old, so the field is a living map, not a flat lookback.
The density gradient turns that landscape into a force — the direction and steepness of attraction at each level, which a plain density cloud never exposes.
The Value Area frames where price is accepted versus stretched, so the force is read in context.
The moving value centre adds the mean-reversion pull toward equilibrium.
The calibration harness back-measures the whole thesis: when the pull is strong, did price actually travel toward the magnet more often than the base rate? It reports Hit %, Base % and Edge.
Density is a picture; the gradient makes it a force; the Value Area frames it; the centre adds drift; the harness keeps it honest. Together they are one decision object.
How to use it
Read the guidance panel first — it states the bias, where price sits versus value, the nearest magnet, and what to watch. On the chart, treat green bands as upward pull toward the magnet above and red as downward pull; the POC and magnet lines are targets; dashed lines are fast low-volume gaps; the Value Area is the accepted range; the centre ± band is the drift equilibrium. Turn on the Calibration table and read Edge: a strong pull with a positive, matured Edge is the context this tool is built to surface. An Edge near zero means the attraction is not exploitable on that symbol/timeframe — that is useful information, not a trade trigger. This is a context map, not a signal generator; combine it with your own risk and execution rules.
Universal across markets
Price source and volume feed are inputs, so it runs on any symbol. Instruments without real volume fall back automatically to a price-density field. Default settings target an index-futures 1-minute chart; change the lookback, centre and slice resolution to suit other assets and timeframes.
Originality
The building blocks are standard and credited below; the original work is the coupling and the rendering — a volume kernel density whose gradient is drawn as a directional force field, fused with a Value Area and a moving value centre, with magnet/ridge extraction and a forward base-rate harness that reports each strong-pull setup's realised Edge instead of asserting that magnets work. No third-party Pine code is reused.
Concept credit
Kernel density estimation — Emanuel Parzen (1962) and Murray Rosenblatt (1956); bandwidth rule — B. W. Silverman (1986). Point of Control / Value Area / Market Profile — J. Peter Steidlmayer. Moving-equilibrium ("price in a moving potential") market models — Hideki Takayasu, Takayuki Mizuno and Tsutomu Watanabe. Not affiliated with, nor endorsed by, any third party.
Honesty / limitations
No tick or order-book tape is available to scripts, so the density is built from OHLCV and optional lower-timeframe slices — a proxy, not the true traded distribution. Lower-timeframe slices exist only for recent bars; older bars use bar price automatically. "Force" is a hypothesis the Edge stat exists to falsify. The harness uses a light proxy of the field (the full grid cannot be recomputed on every bar), so it tests the idea rather than the exact drawn object. Like any volume profile, the last (forming) bar's field refreshes in real time; on closed bars it is fixed. Edge figures are in-sample, close-to-close, without costs — a study aid, not a verified backtest. Nothing here predicts price.
Disclaimer
For research and educational purposes only. This script is not financial advice, not a recommendation, and not a guarantee of future results. Indicators describe past behaviour; they do not predict the future. Trading carries risk of loss. Test on out-of-sample data and make your own decisions. The author accepts no liability for any use of this script. مؤشر

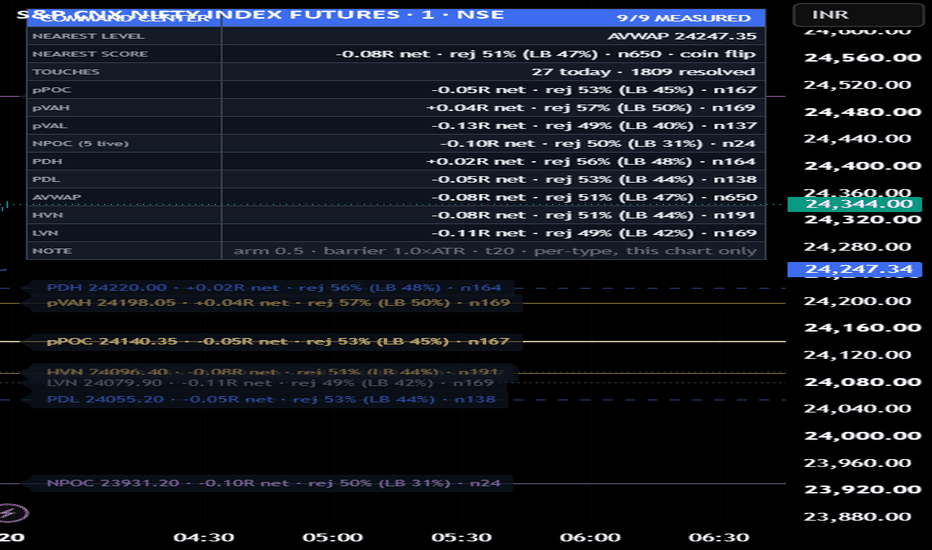

Auction & Liquidity Command Center Volume Profile, MeasuredAuction & Liquidity Command Center — Volume Profile, Measured
The levels traders already use — prior POC, value area, naked POCs, prior day high/low, session AVWAP, HVN/LVN — each scored by its measured reaction on this chart: how often price rejects vs breaks, and what the fade has been worth in R. Levels with evidence, not levels with vibes. Never a buy or sell.
What it does
Every structure tool draws levels. None of them measures what happens when price gets there. This tool builds the session-anchored auction map with profile-grade accuracy, detects qualified touches of every level, resolves each touch through a triple-barrier outcome, and pools the results by level TYPE into a live scoreboard: pPOC +0.01R · rej 50% · n156. You see not just where the levels are, but which kinds of levels have actually meant something on this chart — and which are coin flips.
The components, and why they are combined
This is a deliberate synthesis of four parts, each covering the previous one's weakness:
A profile-grade level engine (Market Profile — J. P. Steidlmayer). Nine level types from the session volume-at-price profile and session extremes: prior POC, prior VAH/VAL (classical two-row 70% expansion), naked POCs (prior POCs never revisited), prior day high/low, the session's anchored VWAP, and HVN/LVN volume nodes (prominence-filtered local extremes). Accuracy choices: each bar's volume is distributed range-proportionally across the rows it overlaps (not binned at one point); POC ties break toward the session center. Weakness left open: a drawn level says nothing about whether it matters.
A qualified-touch detector. A level must be ARMED — price fully away from it by at least k×ATR — before a touch of it can count, and it disarms after every touch. Chop sitting on a line cannot enter the record. Approach direction is stored with every event. Weakness left open: a touch is not an outcome.
Triple-barrier outcome resolution (outcome labelling — M. López de Prado). From each touch: REJECT if price moves m×ATR back the way it came first, BREAK if it moves m×ATR through first, TIMEOUT after T bars. Purity rules: barriers are fixed at the ATR of the touch moment; evaluation starts the bar after the touch; a bar hitting both barriers is a timeout, never a guess. Weakness left open: one level's history is n = 1.
Per-TYPE pooling with honesty gates. Statistics pool by level type, never by individual line — a type is a real sample. A type shows no score until a minimum number of its touches have resolved (default 20); until then it reads BUILDING with its count. Timeouts are reported in n but excluded from the reject/break ratio. Fade expectancy = (rejects − breaks) / (rejects + breaks), in R.
How to read it
Rails are colored and styled by type (solid profile levels, dashed day levels, dotted volume nodes, violet naked POCs); each label carries its type's live score or its BUILDING count.
Evidence on the chart: a gray • at every qualified touch, then ○ (teal) where the touch rejected and ✕ (amber) where it broke. Every number on the scoreboard can be audited against the chart.
Dashboard: nearest level and its score, with a plain-language verdict (tends to hold / coin flip / tends to break) so the read needs no statistics background; per-type scoreboard (fade R · reject % · n) for all nine types; touch counts; the exact engine settings in the NOTE row.
Honest expectations: most types on most charts score near zero — that is the truthful baseline, and seeing it protects you from folklore. The value is in the exceptions this chart's own history reveals (for example, day extremes often carry a modest positive fade expectancy while POC retests are a coin flip), and in knowing the difference.
How to use it
Use the scoreboard to weight your own playbook: give more respect to touches of types that have measured well here, less to types that grade as noise — and size accordingly. The "Touch of a MEASURED level" alert fires only when price reaches a type with a real sample behind it. This is context about where price reactions have had structure — never a direction, never an entry signal.
Non-repaint & universality
Profiles, POC/VA/nodes and day levels commit only at session close on confirmed bars; touches and outcomes resolve on confirmed bars; the AVWAP is cumulative within its session. Nothing repaints. The script requests no external data of any kind — no lower timeframes, no security calls — so it runs identically on every plan and every symbol with volume.
Use on any market
Volume source, profile rows, value-area %, node thresholds, arm distance, barriers and sample gates are all inputs. Defaults suit liquid intraday index futures; intraday timeframes give the engine the most touches to learn from.
Originality & credits
The synthesis — a range-proportional session profile, qualified-touch detection, touch-time-ATR triple-barrier outcomes, and per-type pooled reaction statistics displayed as a live scoreboard — is original work for this publication. Concept credits: Market Profile / point of control / value area — J. Peter Steidlmayer; naked (virgin) POC — market-profile literature; anchored VWAP — as popularised in modern trading literature; triple-barrier outcome labelling — M. López de Prado. Implementation and charting design are the author's own.
Disclaimer
Research and education only. NOT financial advice, NOT a signal service, NOT a guarantee of future results. Reaction statistics are empirical frequencies from this chart's limited history, pooled per level type; they change with regime and sample, and a positive expectancy is not a promise. Validate independently and manage your own risk. مؤشر

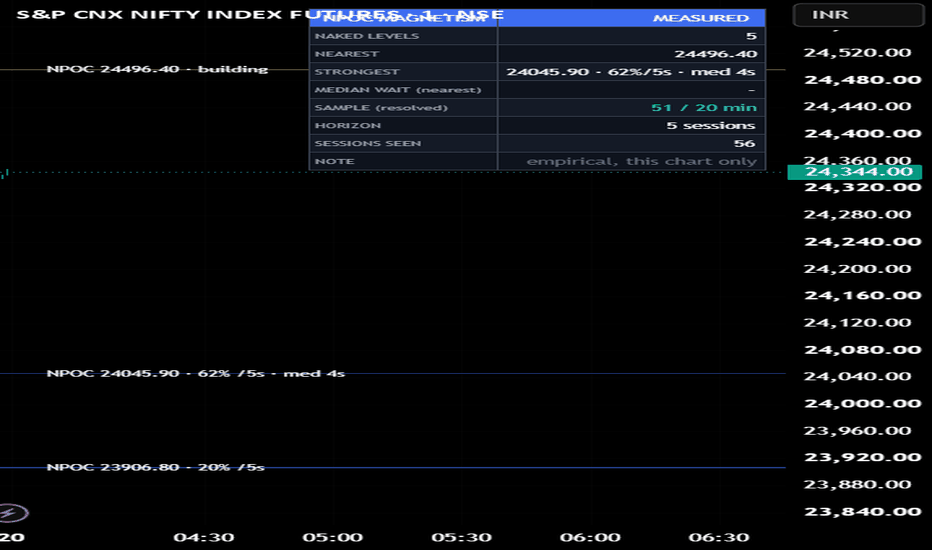

Naked POC Magnetism Fill Probability & Median WaitNaked POC Magnetism — Fill Probability & Median Wait
What it is
A naked POC is the highest-volume price of a past session that price has not revisited since. Traders treat them as magnets — but "it usually gets filled" is folklore until it's measured. This tool measures it. Every historical naked level on your chart becomes a data point (how many sessions it survived before being touched, or whether it never was), and a survival model (discrete-hazard life table) turns that history into, for each live naked level: the probability it fills within the next N sessions and the median wait. Levels are drawn with their measured magnetism, not just their location.
How the statistics work — and their honest limits
Each session's volume-at-price profile is built from that session's bars; at session close the peak-volume price (POC) becomes a naked level.
A level is filled the first time a later bar's range touches it; its age in sessions at that moment is one observation. Levels removed unfilled (history cap) are censored at their age — counted as "survived this long," never as fills. This is the standard treatment of incomplete observations from survival analysis (Kaplan–Meier 1958; classical life tables).
Hazard at age j = fills at age j ÷ levels at risk at age j. Survival multiplies (1 − hazard) across ages; fill-probability within a horizon and the median wait follow directly.
Reliability gates, enforced not footnoted: no probability is displayed until a minimum number of levels have resolved (input, default 20) — until then the tool says BUILDING and shows only counts. And hazard estimates at ages with fewer than 5 at-risk observations are truncated rather than trusted, per standard life-table convention.
Probabilities are empirical frequencies from this symbol and timeframe's own history — they change with regime and sample, and a 70% is not a promise.
Seeing the evidence
Every historical fill prints a small ◈ marker where a naked level was touched — the resolved observations the probabilities are measured from, visible on the chart rather than hidden in a table.
The dashboard shows both the NEAREST level and the STRONGEST magnet (highest fill probability) — they are often not the same level, and the strongest one is the better answer to "where is price most drawn".
An honest design note: this tool deliberately has NO multi-timeframe stack and NO state-debounce, unlike its siblings in this suite — sessions are the model's clock regardless of chart timeframe (a higher-timeframe copy would measure the same sessions with coarser bins), and nothing here chatters (levels are born at session close and resolve on touch). Features are added where they inform, not everywhere.
How to use it
Add to a liquid intraday chart; 5m–15m gives the model the most sessions to learn from. Let it run until the dashboard reads MEASURED.
Each rail is labelled like "NPOC 24512 · 68% /5s · med 3s" — the measured chance it fills within the horizon and the median sessions historically needed. Warm, saturated rails = strong magnets; faded = weak or unrated.
The dashboard shows the nearest level's read and — deliberately — the sample size behind every number.
Use magnetism as context about where price is drawn (targets, fade zones, expectations management), never as an entry signal by itself.
What makes it original
Naked-POC indicators draw lines. This one attaches a measured fill-probability and expected wait to each line, estimated with a proper survival model that handles censoring and refuses to show numbers it can't support. Turning a folklore level into a level with a live, honest statistic is the contribution.
Concept credits
Market Profile / point of control — J. Peter Steidlmayer. Naked (virgin) POC — market-profile trading literature. Survival estimation from incomplete observations — E. L. Kaplan & P. Meier (1958); classical life-table method. Implementation and charting design are the author's own.
Important disclaimer
Research and education only. Not financial advice, not a signal service, not a guarantee of future results. Fill probabilities are empirical frequencies measured on this chart's limited history. Validate independently and manage your own risk. مؤشر
Order Aggression Heatmap (Asymmetrical Volume Visualizer)Order Aggression Heatmap is a footprint-based visualization tool designed to highlight high-volume aggressive and/or asymmetrical buy/sell activity at individual price rows.
User-defined filters allow you to eliminate noise and only show the highest volume heat blocks.
Using TradingView’s footprint data, the indicator analyzes volume at individual price rows and identifies areas where one side demonstrates a meaningful advantage over the other. Qualifying rows are displayed as heatmap blocks, with or without text, allowing traders to quickly spot volume concentrations, directional pressure, and potential areas of market response.
The indicator is intended as a supplemental order-flow visualization and can be used alongside price action, support/resistance levels, supply-demand zones, volume profiles, or other market structure tools.
How It Works
For each footprint price row, the script evaluates:
Total traded volume
Buy volume
Sell volume
Delta (buy volume minus sell volume)
Relative dominance between buyers and sellers
Rows are displayed only when user-defined thresholds are met.
The filtering process allows traders to focus on meaningful participation while reducing visual noise from lower-volume activity.
Available Filters
Minimum Row Volume
Requires a footprint row to contain at least the specified amount of traded volume before it can be displayed.
Increasing this value reduces noise and emphasizes higher-activity areas.
Minimum Absolute Delta
Requires a minimum difference between buy and sell volume.
Higher values focus on stronger directional pressure.
Aggression Ratio
Measures how dominant one side is relative to the other.
Example:
Ratio = 2.0
Buy Volume = 100
Sell Volume = 50
The row qualifies because buyers traded at least twice the volume of sellers.
Aggressive Rows Only
When enabled, only rows meeting the aggression ratio requirement are displayed.
When disabled, rows may still qualify through volume and delta thresholds alone.
Visual Features
•Heatmap-style overlays
•Custom buy and sell colors
•Optional footprint Point of Control (POC) highlighting
•Adjustable historical display window
•Adjustable heatmap persistence
•Optional row volume and delta labels
•Heat intensity can be customized through the selected color and opacity settings.
Suggested Applications
This indicator may be useful for:
•Identifying areas of concentrated participation
•Monitoring directional pressure within a move
•Comparing buyer and seller dominance at specific price levels
•Studying footprint behavior around support and resistance
•Evaluating activity near supply and demand zones
•Visualizing market response after large directional candles
Notes
This indicator uses TradingView footprint data.
It does not use Level 2, DOM, or market-by-order data.
It does not identify individual trades or individual order sizes.
Results may vary depending on symbol, exchange data, and footprint resolution settings.
The snapshots above show the heatblocks hidden by the candles, but in use they appear in front of the candles. مؤشر
Session Value Ribbon [EXCAVO]Anchored volume-weighted mean with a harmonic value ribbon and HTF confluence
The Session Value Ribbon plots a volume-weighted mean of price and a volatility-scaled sigma envelope, then partitions the space between them into a harmonic value ribbon (0.236, 0.382, 0.5, 0.618, 0.786). Three anchor modes let the wave adapt to any chart: Rolling (a sliding N-bar window, default), Timeframe (classical anchored VWAP that resets each session), and Date (fixed anchor). A second accumulator on a slower reference timeframe runs the same math and plots as an HTF confluence line for multi-scale reads.
This is not a basic VWAP indicator. The ribbon layers, the volatility-regime scaling of the sigma bands, the HTF confluence overlay, and the auto-resolver that picks the anchor from the chart timeframe turn a single-line mean into a full value map of the current session.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
▸ HOW TO USE
Step 1 → Add the indicator. The anchored mean, sigma envelope
and value ribbon draw immediately on whatever anchor
mode is selected (Rolling by default).
Step 2 → Read the mean as fair value for the active anchor.
Price above the mean = participants are bidding higher
than the anchor-window average; price below = lower.
Step 3 → Watch the outer sigma bands. A close beyond them
means price is stretched from fair value; the ribbon
layers below act as pullback shelves.
Step 4 → Use ribbon layers as intraday shelves. The 0.5 layer
is the midpoint between mean and outer band; the 0.236
layer sits close to the mean; the 0.786 layer sits
close to the outer band. Look for stalls and false
breaks at each layer.
Step 5 → Cross-check with the HTF confluence line. When the
primary mean and the HTF mean converge, price is in a
multi-scale value zone; when they diverge, one session
is running ahead of the other.
Step 6 → Read the dashboard for anchor mode, current mean,
distance from mean in sigmas, slope regime and bar
count since the anchor.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
▸ HOW IT CALCULATES
◆ Volume-Weighted Mean
The mean is a running weighted average of the selected price source. Weights come from volume with three modes: Full uses raw volume (classical MIDAS weighting), Root uses the square root of volume (dampens single-bar spikes so one huge candle cannot drag the mean), and None uses equal weight (the mean degenerates to a plain arithmetic average of the source).
◆ Anchor Modes
Rolling accumulates over a sliding N-bar window (default 200 bars), so the wave is always N bars long regardless of chart timeframe. Timeframe resets the accumulator on each boundary of the chosen anchor timeframe (Daily by default), matching the behaviour of a classical anchored VWAP. Date locks the anchor to a specific timestamp and keeps accumulating forever after.
◆ Sigma Envelope
Sigma is computed from the anchor-window weighted variance, E − (E )². The outer bands are drawn at ±sigmaMultiplier × sigma around the mean. Optional Volatility Regime Adjust multiplies sigma by an ATR-relative factor, bounded between 0.7x and 1.4x, so the bands breathe with the current activity state, giving tighter bands in quiet regimes and wider bands in wild ones.
◆ Harmonic Value Ribbon
The space between the mean and each outer band is split into harmonic layers at 0.236, 0.382, 0.5, 0.618 and 0.786 of the sigma distance. The ribbon is rendered as a progressive-opacity fill, not as separate labelled lines, so the eye reads a continuous value gradient instead of a stack of horizontal ledger lines.
◆ HTF Confluence Layer
A second accumulator runs the exact same math on the next slower anchor timeframe (Rolling with a longer window when the primary is Rolling; the next-slower TF step when the primary is Timeframe). The HTF mean plots as a thin coloured line. When the primary mean and the HTF mean align, price is in a multi-scale value zone.
◆ Slope-Based Regime Classifier
The classifier measures the slope of the primary mean over the slope-lookback window and normalises it by ATR. If |slope|/ATR exceeds the slope threshold (default 0.05 xATR), the ribbon and mean tint bull or bear. Below the threshold the regime is flat and the palette stays neutral.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
▸ WHAT MAKES IT DIFFERENT
◆ Chart-Timeframe Auto-Resolver
The anchor timeframe is resolved automatically from the chart timeframe, so the wave shape stays consistent across intraday, swing and position TFs without manual tuning.
◆ Volatility-Regime Scaling
The sigma envelope adapts to activity state instead of being fixed at a static multiplier. Tight regimes contract the bands, wild regimes widen them, with a bounded 0.7x to 1.4x multiplier so the visual stays stable.
◆ Harmonic Ribbon as Progressive Fill
The intra-band space is drawn as a smooth value gradient rather than a stack of horizontal lines. Layer count is user-selectable (Harmonic 3, 5 or 7).
◆ HTF Confluence Overlay
A second anchored mean on the next slower timeframe plots as a companion line so multi-scale value alignment is visible without a second indicator on the chart.
◆ Distance-In-Sigma Readout
A right-edge readout reports the current mean and the current distance from mean in sigmas, so the extreme readings are legible without measuring.
◆ EXCAVO Overlay Visual
Chart-anchored overlay only, with no pane oscillator and no floating badges. The wave, ribbon and HTF line share a single tonal palette that stays out of the way of price action.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
▸ DASHBOARD
Real-time panel (top right by default) with all key metrics:
Anchor - active anchor mode with its parameter (Rolling N, Timeframe TF, or Date)
Mean - current value of the anchored mean
Distance - price distance from mean in sigmas, signed
Regime - Up / Down / Flat classification from the slope-based regime engine
Bars in Anchor - bar count since the anchor started accumulating
Legend table (bottom left) explains every glyph and colour used on the chart. Toggle in Dashboard settings.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
▸ SETTINGS
Anchor
Anchor Mode - Rolling (default), Timeframe, or Date
Rolling Length (bars) - 200 (window used in Rolling mode)
Anchor Timeframe - D (used in Timeframe mode)
Anchor Date - 01 Jan 2025 (used in Date mode)
Source
Price Source - (H+L+C)/3 (typical price)
Volume Weight - Full (raw volume) - Root (square root of volume) - None (equal weight)
Sigma Bands
Sigma Multiplier - 2.0 (band distance in sigmas)
Volatility Regime Adjust - OFF (ATR-scaled sigma with 0.7x-1.4x bounds)
Value Ribbon
Show Value Ribbon - ON
Ribbon Set - Harmonic 5 (0.236 / 0.382 / 0.5 / 0.618 / 0.786)
Ribbon Opacity Base - 80
Show Zone Fill - ON
Zone Fill Opacity - 88
HTF Confluence
Enable HTF Confluence - ON (draws a second mean from the next slower anchor)
Regime Coloring
Slope Regime Coloring - ON
Slope Lookback - 20 bars
Slope Threshold (xATR) - 0.05
Visualization
Bull Color - deep blue
Bear Color - red
Flat Color - neutral grey
HTF Confluence Color - amber
Show Right-Edge Readout - ON
Dashboard
Show Dashboard - ON
Dashboard Position - Top Right
Show Legend - ON
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
▸ ALERTS
Directional alerts only.
Price Crossed Above Anchored Mean - close crosses over the primary anchored mean
Price Crossed Below Anchored Mean - close crosses under the primary anchored mean
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Built on MIDAS anchored VWAP (Paul Levine, 1990s), extended with three anchor modes (Rolling / Timeframe / Date), selectable volume weighting, volatility-regime scaling of the sigma bands, a harmonic ribbon rendered as a progressive-opacity fill, an HTF confluence layer, a slope-based regime classifier, and a right-edge distance-in-sigma readout.
Best regards,
EXCAVO
Disclaimer
Trading involves significant risk. This indicator is a technical analysis tool
and does not constitute financial advice, investment recommendations, or a
guarantee of future results. Past indicator behavior does not guarantee future
performance. Always use proper risk management and your own judgment.
مؤشر
Adaptive Consensus Trail Structure, Regime & SelfAdaptive Consensus Trail — Structure, Regime & Self-Test
A trailing stop that sits on the agreement of several structural references, adapts to the market regime, and forward-tests its own signals so the numbers it shows are measured, not asserted.
What it is
Most trailing stops follow one idea — an ATR band, a SuperTrend, a moving average. This one places the stop where a small committee of independent structural references agree, reads how confident that agreement is, widens or tightens itself according to the market regime, and then continuously audits its own flips and reports the edge it actually produced on your data.
The committee has five members, each locating support/resistance from a different lens:
Anchored VWAP band — fair value for the session/week/month
Session / naked volume Point-of-Control — the price the most volume traded at, carried forward until revisited
Fair-Value-Gap midpoint — unfilled imbalance
Swing pivot — structural memory
Order-flow absorption — where aggressive buying/selling was absorbed (via Bulk Volume Classification)
Why these parts belong in one script (mashup justification)
Each reference alone whipsaws on an index, and each is right in different conditions. They are combined because they correct one another, and the entire value of the script is in that interaction — not in any single line:
A reliability layer scores every reference's historical respect rate with a Wilson lower bound, so a reference that keeps getting ignored loses its vote instead of dragging the stop around.
A consensus layer keeps only the densest agreeing cluster of references, so the stop sits on genuine agreement rather than on an average nobody respects, and far-apart references never force a permanent "no signal."
A regime layer (efficiency ratio + ADX + band-width + a volatility-cluster read + a Hurst persistence estimate) widens the band and tightens the flip confirmation in chop — this is what removes the whipsaw.
A self-test layer forward-scores every flip and recalibrates the confidence number so it means what it says.
Split apart, these are five overlays that each mislead in a range. Wired together, they are one self-correcting, self-auditing trail. That is the reason for combining them.
How it works (six layers)
References are computed on the bar close.
Reliability — rolling-capped respect counts per reference give a Wilson lower-bound "trust." POC is a magnet, so it is judged by forward reaction (did price reject away before breaking through?), not a same-bar close, which keeps its trust honest.
Consensus — the densest agreeing cluster within an ATR band becomes the trail's target; the envelope and confidence are measured on that cluster only.
Adaptive backbone — an efficiency-ratio / regime-adaptive band (Adaptive, Chandelier, or Blend) that widens in chop.
The trail — high confidence pulls the stop toward structure (floored a minimum ATR off price); low confidence rides the wide band, so it flips less in noise.
Self-test — every flip is forward-resolved by triple-barrier first-touch against an unconditional base rate, split by strength tier and by regime, with a walk-forward in-sample→out-of-sample check, a runs test of independence, a Brier score, and a confidence recalibration.
How to use it
Read the top banner for the one-line bias — BULLISH / BEARISH / WAIT — and the READ legend for what to do. The coloured line is your stop: support in an uptrend, resistance in a downtrend. BUY / SELL labels print only on confirmed, sufficiently-confident, higher-timeframe-aligned flips.
The dashboard gives detail top-down: each reference's level and trust, the consensus, raw → calibrated confidence, regime (with Hurst and ADX), the higher-timeframe invalidation stop, and a FULL / HALF / STAND-ASIDE suggestion.
Before sizing, open the Self-Test panel and read the Edge column (hit% − base%), not the raw hit-rate. A ★ means the edge's confidence interval clears the base rate. Prefer signals where the walk-forward change isn't badly negative and the runs test isn't "streaky." Being honest about it: on many indices this tool shows real edge in range and volatile regimes on higher timeframes and little-to-none on very low timeframes or once a trend is already confirmed — the panel makes that transparent so you can pick your spots.
Works on any market
Set the Price source, and for symbols with no native volume set a Borrow-volume proxy (e.g. a futures contract). The panel theme adapts to your chart background automatically. Backbone: Adaptive / Chandelier / Blend. Absorption: order-flow (BVC) or simple. An optional intrabar resolution builds a finer volume profile where available.
Originality
The committee-of-references design, the cluster-not-average consensus, the reliability weighting that lets references lose their vote, the forward-reaction POC respect test, and the confidence self-calibration are the author's own work. The underlying techniques are standard and fully credited below.
Non-repaint
References, regime, consensus and the trail all evaluate on the close of the bar; the live bar is provisional and settles on close. Self-test events are logged and resolved only on confirmed bars and resolve on bars after their trigger at fixed barriers, so hit / base / edge use no look-ahead. The higher-timeframe stop uses a lookahead-off request.
Concept credits
Wilson score interval (E. B. Wilson); efficiency ratio (P. Kaufman); ADX / DMI / ATR / volatility-stop lineage (J. W. Wilder); anchored VWAP (industry standard); volume profile / value area / point-of-control — Market Profile (J. P. Steidlmayer, developed by J. F. Dalton); triple-barrier first-touch labelling (M. López de Prado); runs test of randomness (A. Wald & J. Wolfowitz); rescaled-range / Hurst exponent (H. E. Hurst); Brier score (G. W. Brier); Bulk Volume Classification / VPIN (D. Easley, M. López de Prado & M. O'Hara); reliability-bin (isotonic-style) calibration is standard forecasting practice.
Limitations & disclaimer
"Absorption" is a volume proxy — base data has no true tick order flow, so the buy/sell split is estimated from bar moves, not measured. Confidence is context, not a promise of profit. The self-test is descriptive of past behaviour on the loaded symbol (fixed barriers, no costs or slippage) — a study aid, not a backtest and not a guarantee. A measured edge is what flips did historically here, not a forecast.
This script is for research and education only. It is not financial advice, not a recommendation to buy or sell, and not a guarantee of any outcome. Trading carries risk of loss; your decisions are your own. Test on your own data and use independent risk management before relying on it. مؤشر
