Aktualisiert Reaction Efficiency Meter [AGPro Series]
Reaction Efficiency Meter [AGPro Series]
A pure observation lens that scores every pivot-based support and resistance reaction from 0 to 100 and classifies it as WEAK, LIMITED, FAIR, STRONG or EFFICIENT. Designed to answer one specific question on any chart: how well did price actually react when it touched that level? Not a strategy, not a signal generator — a quality meter for S/R reactions.
🔹 Overview
Reaction Efficiency Meter watches pivot-based support and resistance levels and, the moment price touches any of them, opens a fixed reaction window to observe what happens next. At the end of that window the reaction is scored from 0 to 100 using four weighted components — strength, speed, cleanliness, follow-through — and then classified into a five-tier hierarchy. The result is printed directly on the chart as a color-coded label (BULL or BEAR), while a side panel keeps a live summary of the last bullish reaction, last bearish reaction and the currently active event window. The indicator is built as a post-event quality lens for traders who already work with horizontal levels, pivot zones, or structural S/R and want an objective readout of reaction quality instead of a subjective eyeball assessment.
🔸 Unique Edge
Most support and resistance indicators stop at drawing lines or zones. Reaction Efficiency Meter goes one step further and evaluates the reaction itself on a fixed, reproducible scale. Four distinct quality dimensions are blended into a single 0-100 score, and a separate adverse-excursion penalty reduces the score when price violated the level before reacting. The result is a transparent number tied to a five-tier verbal classification (WEAK / LIMITED / FAIR / STRONG / EFFICIENT), which makes reactions directly comparable across symbols and timeframes. There are no repainting signals, no lagging smoothers and no hidden strategy logic — the scoring is purely descriptive and fires only after the reaction window closes on a confirmed bar.
🔹 Methodology
The engine has four clear stages:
1. Level detection. Classic pivot highs and lows are tracked as dynamic resistance and support. Only the most recent N levels per side stay active — older ones are retired, so the chart never clutters.
2. Touch detection. A touch is registered when the bar's range enters a tolerance band around any active level (expressed in ATR units so the logic auto-scales across volatility regimes). A cooldown of N bars between tests on the same level prevents noise from restarting an event too quickly.
3. Event tracking. Once a touch fires, a reaction window of N bars is opened. During that window the script tracks (a) the best favorable excursion in ATR units, (b) the worst adverse excursion in the wrong direction, (c) which bar produced the peak favorable move, (d) the net retained move at window close.
4. Scoring and classification. At window close the four components are combined with a penalty:
• Strength (0-35): best favorable excursion relative to 1.5 ATR reference.
• Speed (0-20): how early the peak favorable bar occurred inside the window.
• Cleanliness (0-20): reduced linearly by adverse excursion.
• Follow-through (0-15): how much of the peak move was retained at window close.
• Adverse penalty (up to -15): applied when price broke through the level.
Final score is clamped 0-100 and mapped to: WEAK (<25), LIMITED (25-44), FAIR (45-64), STRONG (65-79), EFFICIENT (80+).
🔸 Signals & Alerts
The indicator does not emit buy or sell alerts. Its outputs are purely descriptive:

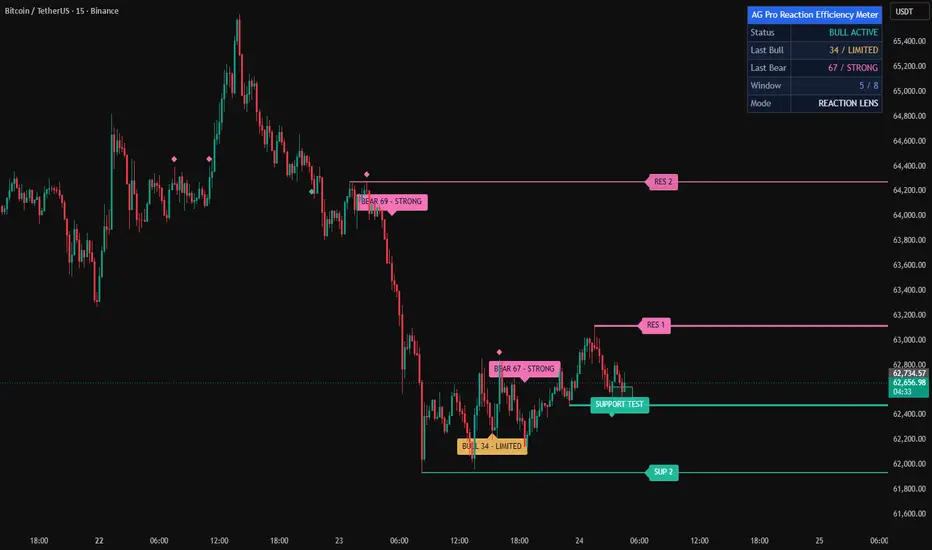

• A color-coded reaction label (BULL or BEAR with score and tier) plotted after each completed window.
• Active zone rectangle and reaction corridor drawn around the touched level while the window is open.
• Touch markers on the bar where a new event begins.
• Live status tag showing BULL WINDOW x/N or BEAR WINDOW x/N during an active event.
• A stateful side panel with Status, Last Bull, Last Bear, Window progress and Mode rows.
All visuals render on confirmed bars only, so the score and tier of a completed reaction do not change afterwards.
🔹 Key Inputs
• Pivot Length — bar distance used to qualify pivot highs and lows.
• Max Active Levels / Side — how many recent resistance and support levels stay active.
• ATR Length — volatility reference for tolerance, corridor depth and scoring.
• Touch Tolerance (ATR) — how close to the level a bar must come to count as a touch.
• Reaction Window Bars — fixed observation length per event.
• Minimum Bars Between Tests — cooldown on the same level.
• Reaction Corridor Depth (ATR) — vertical span of the reaction corridor drawn during the window.
• Display group — toggles for levels, tags, markers, labels, active zone, corridor, panel.
• Theme & Layout — panel theme (Auto / Dark / Light), position, font size, line width and opacity controls.
🔸 How to Use
The indicator is intended as a companion lens, not a standalone system. Typical workflows include:
• Confluence study. Compare reaction scores at different levels on the same chart to see which zones historically produced stronger reactions.
• Bias assessment. Watching whether BULL and BEAR labels on a given timeframe skew toward higher or lower tiers can inform directional bias for discretionary decisions made elsewhere.
• Framework validation. Add it on top of an existing S/R, order block or pivot framework to quantify whether the levels those tools produce actually generate efficient reactions.
• Multi-timeframe scanning. Running the indicator on multiple timeframes shows where strong reactions cluster — often useful for context, not entry timing.
The tool is descriptive and retrospective. It is not designed to replace risk management, structural analysis or the user's own trading plan.
🔹 Limitations & Transparency
• The reaction window is fixed per event. Very fast V-reversals may still register as WEAK if most of the favorable move happens after the window closes; conversely, slow grind reactions may score lower on the Speed component even when the net outcome is good.
• Pivot-based levels are, by definition, confirmed with a lag equal to Pivot Length bars.
• Scores are descriptive — a STRONG tag on a past reaction does not imply that the next test of the same level will also react strongly.
• All scoring uses confirmed-bar logic, so the indicator is non-repainting by design.
🔸 Risk Disclosure
This indicator is provided for educational and analytical purposes only. It is not financial advice, not a trade signal generator, and not a recommendation to buy or sell any instrument. Trading involves substantial risk of loss. Past reactions do not guarantee future reactions. Users are solely responsible for their own trading decisions and risk management.
A pure observation lens that scores every pivot-based support and resistance reaction from 0 to 100 and classifies it as WEAK, LIMITED, FAIR, STRONG or EFFICIENT. Designed to answer one specific question on any chart: how well did price actually react when it touched that level? Not a strategy, not a signal generator — a quality meter for S/R reactions.
🔹 Overview
Reaction Efficiency Meter watches pivot-based support and resistance levels and, the moment price touches any of them, opens a fixed reaction window to observe what happens next. At the end of that window the reaction is scored from 0 to 100 using four weighted components — strength, speed, cleanliness, follow-through — and then classified into a five-tier hierarchy. The result is printed directly on the chart as a color-coded label (BULL or BEAR), while a side panel keeps a live summary of the last bullish reaction, last bearish reaction and the currently active event window. The indicator is built as a post-event quality lens for traders who already work with horizontal levels, pivot zones, or structural S/R and want an objective readout of reaction quality instead of a subjective eyeball assessment.
🔸 Unique Edge
Most support and resistance indicators stop at drawing lines or zones. Reaction Efficiency Meter goes one step further and evaluates the reaction itself on a fixed, reproducible scale. Four distinct quality dimensions are blended into a single 0-100 score, and a separate adverse-excursion penalty reduces the score when price violated the level before reacting. The result is a transparent number tied to a five-tier verbal classification (WEAK / LIMITED / FAIR / STRONG / EFFICIENT), which makes reactions directly comparable across symbols and timeframes. There are no repainting signals, no lagging smoothers and no hidden strategy logic — the scoring is purely descriptive and fires only after the reaction window closes on a confirmed bar.
🔹 Methodology
The engine has four clear stages:
1. Level detection. Classic pivot highs and lows are tracked as dynamic resistance and support. Only the most recent N levels per side stay active — older ones are retired, so the chart never clutters.
2. Touch detection. A touch is registered when the bar's range enters a tolerance band around any active level (expressed in ATR units so the logic auto-scales across volatility regimes). A cooldown of N bars between tests on the same level prevents noise from restarting an event too quickly.
3. Event tracking. Once a touch fires, a reaction window of N bars is opened. During that window the script tracks (a) the best favorable excursion in ATR units, (b) the worst adverse excursion in the wrong direction, (c) which bar produced the peak favorable move, (d) the net retained move at window close.
4. Scoring and classification. At window close the four components are combined with a penalty:
• Strength (0-35): best favorable excursion relative to 1.5 ATR reference.
• Speed (0-20): how early the peak favorable bar occurred inside the window.
• Cleanliness (0-20): reduced linearly by adverse excursion.
• Follow-through (0-15): how much of the peak move was retained at window close.
• Adverse penalty (up to -15): applied when price broke through the level.
Final score is clamped 0-100 and mapped to: WEAK (<25), LIMITED (25-44), FAIR (45-64), STRONG (65-79), EFFICIENT (80+).
🔸 Signals & Alerts
The indicator does not emit buy or sell alerts. Its outputs are purely descriptive:
• A color-coded reaction label (BULL or BEAR with score and tier) plotted after each completed window.
• Active zone rectangle and reaction corridor drawn around the touched level while the window is open.
• Touch markers on the bar where a new event begins.
• Live status tag showing BULL WINDOW x/N or BEAR WINDOW x/N during an active event.
• A stateful side panel with Status, Last Bull, Last Bear, Window progress and Mode rows.
All visuals render on confirmed bars only, so the score and tier of a completed reaction do not change afterwards.
🔹 Key Inputs
• Pivot Length — bar distance used to qualify pivot highs and lows.
• Max Active Levels / Side — how many recent resistance and support levels stay active.
• ATR Length — volatility reference for tolerance, corridor depth and scoring.
• Touch Tolerance (ATR) — how close to the level a bar must come to count as a touch.
• Reaction Window Bars — fixed observation length per event.
• Minimum Bars Between Tests — cooldown on the same level.
• Reaction Corridor Depth (ATR) — vertical span of the reaction corridor drawn during the window.
• Display group — toggles for levels, tags, markers, labels, active zone, corridor, panel.
• Theme & Layout — panel theme (Auto / Dark / Light), position, font size, line width and opacity controls.
🔸 How to Use
The indicator is intended as a companion lens, not a standalone system. Typical workflows include:
• Confluence study. Compare reaction scores at different levels on the same chart to see which zones historically produced stronger reactions.
• Bias assessment. Watching whether BULL and BEAR labels on a given timeframe skew toward higher or lower tiers can inform directional bias for discretionary decisions made elsewhere.
• Framework validation. Add it on top of an existing S/R, order block or pivot framework to quantify whether the levels those tools produce actually generate efficient reactions.
• Multi-timeframe scanning. Running the indicator on multiple timeframes shows where strong reactions cluster — often useful for context, not entry timing.
The tool is descriptive and retrospective. It is not designed to replace risk management, structural analysis or the user's own trading plan.
🔹 Limitations & Transparency
• The reaction window is fixed per event. Very fast V-reversals may still register as WEAK if most of the favorable move happens after the window closes; conversely, slow grind reactions may score lower on the Speed component even when the net outcome is good.
• Pivot-based levels are, by definition, confirmed with a lag equal to Pivot Length bars.
• Scores are descriptive — a STRONG tag on a past reaction does not imply that the next test of the same level will also react strongly.
• All scoring uses confirmed-bar logic, so the indicator is non-repainting by design.
🔸 Risk Disclosure
This indicator is provided for educational and analytical purposes only. It is not financial advice, not a trade signal generator, and not a recommendation to buy or sell any instrument. Trading involves substantial risk of loss. Past reactions do not guarantee future reactions. Users are solely responsible for their own trading decisions and risk management.
Versionshinweise
🔧 UPDATE NOTES - 1.6This update focuses on publication safety, panel consistency, zone ownership, label control, and visual readability.
The core purpose of the script remains unchanged.
This release improves how the existing support and resistance reaction logic is presented, organized, and interpreted on the chart.
This script continues to function as an analytical and visualization tool.
It does not attempt to predict price direction or provide guaranteed outcomes.
------------------------
What Changed
------------------------
• Removed non-required legal text
The script header is now aligned with the current AGPro public-free release format.
• Standardized the AG Pro panel header
The panel now uses a single merged blue header row with the script panel title.
• Added expanded panel controls
Panel visibility, Elite Dark / Slate / Clean Light themes, and broader panel locations are now available.
• Added minimum level spacing
A new ATR-based spacing filter reduces same-side SUP / RES clustering when pivot levels form too close together.
• Added opposite-side level spacing
Support and resistance levels now use a separate ATR filter to avoid tight mixed SUP / RES stacks.
• Added side-aware active level cleanup
Resistance levels that move below current price and support levels that move above current price are removed from the active map.
• Added centered zone badges
Active reaction zones and reaction corridors now use separate centered badges so boxes do not appear orphaned.
• Unified label font sizing
Level tags, active status tags, reaction labels, and zone badges now use the same label font-size control.
• Added reaction alerts
Alerts are available for scored reaction windows and efficient reaction outcomes.
------------------------
Visual Improvements
------------------------
• Improved active zone readability with centered SUPPORT TEST and RESISTANCE TEST badges
• Added a REACTION WINDOW badge inside the active corridor
• Reduced fixed-size label behavior so chart text follows user settings
• Preserved controlled historical reaction labels while keeping the chart cleaner
------------------------
Interface & Usability
------------------------
• Added Show Panel control
• Expanded panel themes and locations
• Added Huge support for label and panel font sizes
• Preserved support / resistance level tags with staggered placement
• Added a Minimum Level Spacing input for cleaner level selection on dense charts
• Reduced default active levels and historical labels for cleaner first-glance reading
• Increased default label offset, label cooldown, and anti-overlap spacing
• Cleaned stale level direction so RES remains above price and SUP remains below price
------------------------
Behavior Notes
------------------------
This update does not change the core analytical goal of the script.
The goal is to improve readability, publication safety, and interface consistency.
Users should interpret outputs as reaction-quality observations, not trade instructions.
------------------------
Limitations Reminder
------------------------
The script remains a rule-based analytical tool.
Liquidity, volatility, timeframe selection, and pivot density may affect how reactions appear.
Outputs should always be interpreted within broader market context.
------------------------
Risk Reminder
------------------------
This script is for educational and analytical purposes only.
It does not provide financial advice or guaranteed trading outcomes.
Users remain responsible for their own decisions.
Versionshinweise
🔧 UPDATE NOTES - v1.9This update focuses on label contrast and on-chart overlap cleanup.
The core purpose of the script remains unchanged. It still scores how
efficiently price reacts to pivot-based support and resistance levels from
strength, speed, cleanliness and follow-through, and classifies each reaction
as WEAK, LIMITED, FAIR, STRONG or EFFICIENT.
This script continues to function as an analytical and visualization tool.
It does not attempt to predict price direction or provide guaranteed outcomes.
------------------------
What Changed
------------------------
• Contrast-aware label text
On-chart text color is now chosen from the actual badge background luminance for
every element: scored reaction labels, SUP / RES level tags, the active test
badge, and the panel header. Text no longer leans light by default, so it reads
crisply on the brighter backgrounds (resistance pink and the efficient-class
indigo) as well as the darker ones.
• No tag overlap at an actively tested level
While a level is being tested, its own SUP / RES tag is hidden, because the
active "SUPPORT TEST" / "RESISTANCE TEST" badge already labels that exact level.
The tag returns automatically once the reaction window resolves.
• Single, clean active-test badge
The separate "REACTION WINDOW" corridor badge was removed. During a live test
the corridor box is still drawn, but it is now labeled by the single
"SUPPORT TEST" / "RESISTANCE TEST" badge at the level instead of stacking two
badges in the same small area. Live window progress remains available in the
panel (Window row). This removes the badge-on-badge overlap that could appear on
lower timeframes.
------------------------
Visual Improvements
------------------------
• Higher-contrast reaction result labels across all classes (Weak, Limited,
Fair, Strong, Efficient) and both directions.
• Higher-contrast SUP / RES level tags and the active test badge.
• Eliminated the badge / tag and badge / badge overlaps that could appear around
an actively tested level, improving first-glance readability across
timeframes.
------------------------
Interface & Usability
------------------------
• Panel readability preserved on every theme; the header and value cells keep
their layout (Status, Last Bull, Last Bear, Window, Mode).
------------------------
Behavior Notes
------------------------
This update does not change any level detection, touch, reaction-scoring or
classification logic. Only label text-color handling and the on-chart placement
of level tags and active-test badges were adjusted. Interpretation of all
outputs is unchanged.
------------------------
Limitations Reminder
------------------------
The script remains a rule-based analytical tool. Market conditions such as
volatility, liquidity and timeframe differences may affect how reactions and
scores appear. Outputs should always be interpreted within broader market
context.
------------------------
Risk Reminder
------------------------
This script is for educational and analytical purposes only. It does not provide
financial advice or guaranteed trading outcomes. Users remain responsible for
their own decisions.
Open-source Skript
Ganz im Sinne von TradingView hat dieser Autor sein/ihr Script als Open-Source veröffentlicht. Auf diese Weise können nun auch andere Trader das Script rezensieren und die Funktionalität überprüfen. Vielen Dank an den Autor! Sie können das Script kostenlos verwenden, aber eine Wiederveröffentlichung des Codes unterliegt unseren Hausregeln.
Public-free scripts + invite-only AGPro workflows for market analysis, liquidity context, risk planning and execution review.
Rules-based. No hype. No guesswork.
Library & access: agprolabs.com/
Telegram: t.me/agprolabs
Rules-based. No hype. No guesswork.
Library & access: agprolabs.com/
Telegram: t.me/agprolabs
Haftungsausschluss
Die Informationen und Veröffentlichungen sind nicht als Finanz-, Anlage-, Handels- oder andere Arten von Ratschlägen oder Empfehlungen gedacht, die von TradingView bereitgestellt oder gebilligt werden, und stellen diese nicht dar. Lesen Sie mehr in den Nutzungsbedingungen.
Open-source Skript
Ganz im Sinne von TradingView hat dieser Autor sein/ihr Script als Open-Source veröffentlicht. Auf diese Weise können nun auch andere Trader das Script rezensieren und die Funktionalität überprüfen. Vielen Dank an den Autor! Sie können das Script kostenlos verwenden, aber eine Wiederveröffentlichung des Codes unterliegt unseren Hausregeln.
Public-free scripts + invite-only AGPro workflows for market analysis, liquidity context, risk planning and execution review.
Rules-based. No hype. No guesswork.
Library & access: agprolabs.com/
Telegram: t.me/agprolabs
Rules-based. No hype. No guesswork.
Library & access: agprolabs.com/
Telegram: t.me/agprolabs
Haftungsausschluss
Die Informationen und Veröffentlichungen sind nicht als Finanz-, Anlage-, Handels- oder andere Arten von Ratschlägen oder Empfehlungen gedacht, die von TradingView bereitgestellt oder gebilligt werden, und stellen diese nicht dar. Lesen Sie mehr in den Nutzungsbedingungen.
