OPEN-SOURCE SCRIPT
Actualizado Compression Clock (Axiom Multi-TF Adaptive)
**Compression Clock (Axiom Multi-TF Adaptive) — Volatility Regime & State Age**
---
### **Description**
#### **Overview**
The **Compression Clock** is a non-directional volatility regime indicator based on the **Axiom quantitative research framework**. Instead of attempting to forecast market direction, it isolates the temporal dimension (**WHEN**) by measuring the duration and depth of volatility compression across any resolution.
Markets do not transition from quiet to expansion instantaneously; they exhibit a survival-rate decay where prolonged low-volatility states exponentially elevate the baseline probability of large physical displacement. The Compression Clock standardizes this process by normalizing rolling volatility and volume percentiles against a physical-time benchmark.
---
#### **Mathematical & Architectural Core**
1. **Dual-Feature Quiet Filter**:
* Evaluates rolling True Range ($\text{ATR}_{24}$) and Traded Volume ($\text{SMA}_{24}$) scaled against an intraday 24-hour physical window:
$$\text{ATR}_{\text{rolling}} = \text{SMA}(\text{TR}, N_{\text{bars}}), \quad \text{Vol}_{\text{rolling}} = \text{SMA}(\text{Volume}, N_{\text{bars}})$$
* Computes the rolling percentile rank of both features across a rolling 180-day baseline distribution.
* A bar qualifies as **Quiet** if and only if both features sit simultaneously in the lower tercile:
$$\text{Quiet}_t = \mathbb{I}\left(\text{Rank}(\text{ATR}_t) \le 33.33\%\right) \land \mathbb{I}\left(\text{Rank}(\text{Vol}_t) \le 33.33\%\right)$$
2. **Physical-Time Normalization**:
* TradingView indicators often suffer from timescale distortion when hardcoding bar-based periods across multiple resolutions.

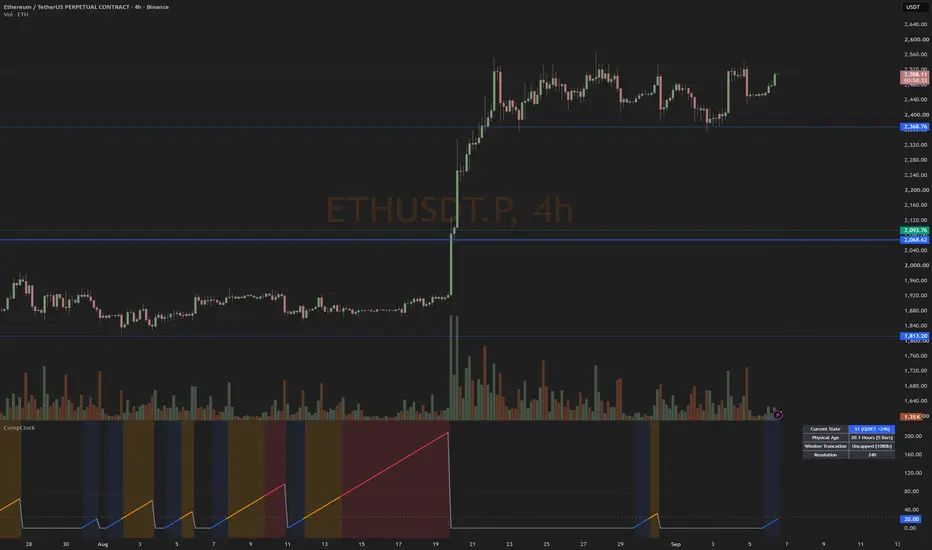

* This script dynamically translates resolution minutes ($M_{\text{tf}}$) into actual **physical hours**. Whether applied to a 5-minute, 30-minute, or 4-hour chart, the Y-axis consistently represents **elapsed physical hours of continuous compression**.
3. **Regime State Categorization**:
* **S0 (ACTIVE)**: Market is expanding or fluctuating outside the quiet threshold. Compression age resets to 0.
* **S1 (QUIET, < 24 Hours)**: Early-stage compression. Natural volatility dampening without statistical hazard elevation.
* **S2 (MATURE, 24 – 72 Hours)**: Statistically mature compression. Historical survival analysis indicates a significant elevation in large-displacement probability.
* **S3 (DEEP, > 72 Hours)**: Extreme volatility exhaustion. Persistent absence of dispersion indicating imminent volatility expansion.
---
#### **How to Use (Methodological Discipline)**
* **Decoupled Architecture**:
* The Clock dictates **WHEN** (volatility environment), not **WHAT** (direction) or **HOW** (execution).
* Never treat an S2/S3 state as a directional trade signal. A compression state is directionally agnostic—it warns of imminent displacement hazard, but the direction must be governed by external momentum or structural acceptance/rejection models.
* **Multi-Timeframe Scope**:
* Low-scale compression (e.g., 5m/15m entering S3) reflects localized intraday order book exhaustion. It does **not** override a higher-timeframe S0 state. For macro regime filtering, monitor higher physical resolutions (such as 4H).
* **Buffer Safety**:
* Includes a built-in 4,900-bar memory clamp to prevent buffer overflow exceptions on ultra-low timeframes while maintaining valid causal percentile rankings.
---
#### **Inputs**
* **Rolling Feature Duration (Hours)**: Physical length of the short-term smoothing window (Default: 24h).
* **Lookback Days (Days)**: Historical distribution window for empirical percentile rankings (Default: 180 days).
* **Quantile Rank Threshold (%)**: Cutoff for the quiet regime (Default: 33.333% — bottom tercile).
---
### **Description**
#### **Overview**
The **Compression Clock** is a non-directional volatility regime indicator based on the **Axiom quantitative research framework**. Instead of attempting to forecast market direction, it isolates the temporal dimension (**WHEN**) by measuring the duration and depth of volatility compression across any resolution.
Markets do not transition from quiet to expansion instantaneously; they exhibit a survival-rate decay where prolonged low-volatility states exponentially elevate the baseline probability of large physical displacement. The Compression Clock standardizes this process by normalizing rolling volatility and volume percentiles against a physical-time benchmark.
---
#### **Mathematical & Architectural Core**
1. **Dual-Feature Quiet Filter**:
* Evaluates rolling True Range ($\text{ATR}_{24}$) and Traded Volume ($\text{SMA}_{24}$) scaled against an intraday 24-hour physical window:
$$\text{ATR}_{\text{rolling}} = \text{SMA}(\text{TR}, N_{\text{bars}}), \quad \text{Vol}_{\text{rolling}} = \text{SMA}(\text{Volume}, N_{\text{bars}})$$
* Computes the rolling percentile rank of both features across a rolling 180-day baseline distribution.
* A bar qualifies as **Quiet** if and only if both features sit simultaneously in the lower tercile:
$$\text{Quiet}_t = \mathbb{I}\left(\text{Rank}(\text{ATR}_t) \le 33.33\%\right) \land \mathbb{I}\left(\text{Rank}(\text{Vol}_t) \le 33.33\%\right)$$
2. **Physical-Time Normalization**:
* TradingView indicators often suffer from timescale distortion when hardcoding bar-based periods across multiple resolutions.
* This script dynamically translates resolution minutes ($M_{\text{tf}}$) into actual **physical hours**. Whether applied to a 5-minute, 30-minute, or 4-hour chart, the Y-axis consistently represents **elapsed physical hours of continuous compression**.
3. **Regime State Categorization**:
* **S0 (ACTIVE)**: Market is expanding or fluctuating outside the quiet threshold. Compression age resets to 0.
* **S1 (QUIET, < 24 Hours)**: Early-stage compression. Natural volatility dampening without statistical hazard elevation.
* **S2 (MATURE, 24 – 72 Hours)**: Statistically mature compression. Historical survival analysis indicates a significant elevation in large-displacement probability.
* **S3 (DEEP, > 72 Hours)**: Extreme volatility exhaustion. Persistent absence of dispersion indicating imminent volatility expansion.
---
#### **How to Use (Methodological Discipline)**
* **Decoupled Architecture**:
* The Clock dictates **WHEN** (volatility environment), not **WHAT** (direction) or **HOW** (execution).
* Never treat an S2/S3 state as a directional trade signal. A compression state is directionally agnostic—it warns of imminent displacement hazard, but the direction must be governed by external momentum or structural acceptance/rejection models.
* **Multi-Timeframe Scope**:
* Low-scale compression (e.g., 5m/15m entering S3) reflects localized intraday order book exhaustion. It does **not** override a higher-timeframe S0 state. For macro regime filtering, monitor higher physical resolutions (such as 4H).
* **Buffer Safety**:
* Includes a built-in 4,900-bar memory clamp to prevent buffer overflow exceptions on ultra-low timeframes while maintaining valid causal percentile rankings.
---
#### **Inputs**
* **Rolling Feature Duration (Hours)**: Physical length of the short-term smoothing window (Default: 24h).
* **Lookback Days (Days)**: Historical distribution window for empirical percentile rankings (Default: 180 days).
* **Quantile Rank Threshold (%)**: Cutoff for the quiet regime (Default: 33.333% — bottom tercile).
