OPEN-SOURCE SCRIPT
Diupdate Zebra Grid & Time Verticals
This indicator provides dynamic price-shelf visual scaffolding and multi-timeframe session timing using non-cluttering overlays.
Dynamic Centered Horizontal Grid: Calculates a dynamic centerPrice rounded to the user-defined point step (e.g., 10 or 100 points) and tracks upper/lower boundary triggers. When price expands outside the current range boundary, the entire grid dynamically shifts to re-center around live price action.
Zebra Interval Shading: Draws alternating background filled boxes (box.new) between even step intervals alongside persistent horizontal price lines (line.new), giving immediate visual definition to price bins across the chart space.
Historical Timeframe Markers: Detects period transitions (ta.change(time(tf_input)) != 0) on a user-designated higher timeframe (e.g., 15m or 6h) and plots full-chart-height vertical lines at each interval open.
Forward (+1) Projection Line: Requests higher timeframe closing timestamps via request.security to project a future vertical line (lineFuture) using xloc.bar_time to show precisely where the next interval will start before it arrives.
Memory Management: Operates exclusively on barstate.islast using arrays (gridBoxes, gridLines) to purge and redraw horizontal elements, keeping line counts clean within standard TradingView script limits (max_lines_count=500).
How to Use It in Trading:

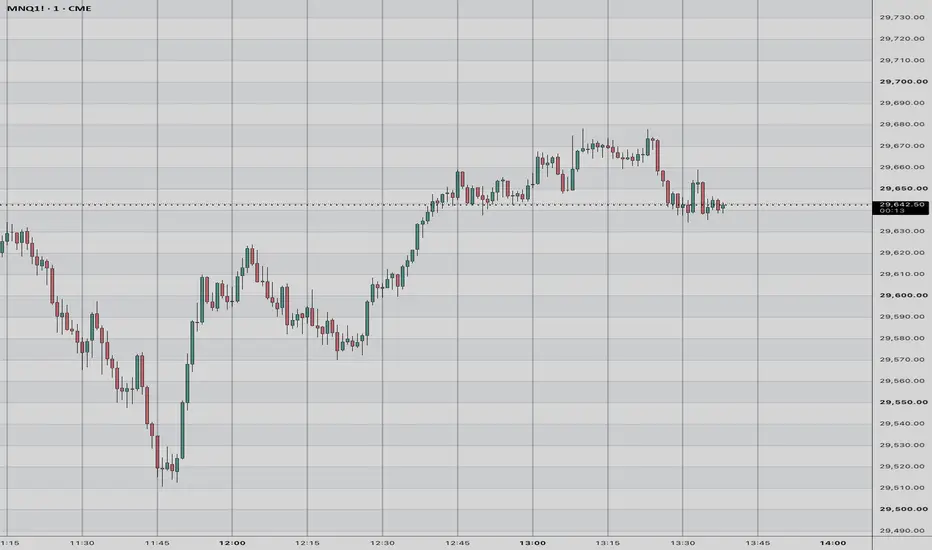

Intraday Execution (Left 1m Chart): Set step sizes to 10 points with 15-minute vertical lines. Use the alternating zebra bands as visual target shelves for scalping micro-swings, and monitor the 15-minute vertical lines to anticipate volatility shifts around candle opens/closes.
Macro Structure (Bottom-Right 30m Chart): Set step sizes to 100 points with 6-hour (360m) vertical lines. The 100-point bands map institutional round-number zones, while the 6-hour vertical intervals visually segregate the trading day into four distinct structural sessions (Asia, London, US Morning, US Afternoon).
Session Timing & Preparation: Use the +1 Future Vertical Line to pre-plan trade execution windows, identifying exactly how much time remains in the current higher-timeframe candle before structural resets occur.
Other Script Features
Independent Modular Toggles: Dedicated user inputs (showZebra, showVerts) allow instantaneous toggling of horizontal price grids and vertical time lines without removing the script.
Custom Styling Options: Complete user control over horizontal step sizes, grid line counts, line styles (Solid, Dashed, Dotted), line widths, and fill color transparency.
Dynamic Centered Horizontal Grid: Calculates a dynamic centerPrice rounded to the user-defined point step (e.g., 10 or 100 points) and tracks upper/lower boundary triggers. When price expands outside the current range boundary, the entire grid dynamically shifts to re-center around live price action.
Zebra Interval Shading: Draws alternating background filled boxes (box.new) between even step intervals alongside persistent horizontal price lines (line.new), giving immediate visual definition to price bins across the chart space.
Historical Timeframe Markers: Detects period transitions (ta.change(time(tf_input)) != 0) on a user-designated higher timeframe (e.g., 15m or 6h) and plots full-chart-height vertical lines at each interval open.
Forward (+1) Projection Line: Requests higher timeframe closing timestamps via request.security to project a future vertical line (lineFuture) using xloc.bar_time to show precisely where the next interval will start before it arrives.
Memory Management: Operates exclusively on barstate.islast using arrays (gridBoxes, gridLines) to purge and redraw horizontal elements, keeping line counts clean within standard TradingView script limits (max_lines_count=500).
How to Use It in Trading:
Intraday Execution (Left 1m Chart): Set step sizes to 10 points with 15-minute vertical lines. Use the alternating zebra bands as visual target shelves for scalping micro-swings, and monitor the 15-minute vertical lines to anticipate volatility shifts around candle opens/closes.
Macro Structure (Bottom-Right 30m Chart): Set step sizes to 100 points with 6-hour (360m) vertical lines. The 100-point bands map institutional round-number zones, while the 6-hour vertical intervals visually segregate the trading day into four distinct structural sessions (Asia, London, US Morning, US Afternoon).
Session Timing & Preparation: Use the +1 Future Vertical Line to pre-plan trade execution windows, identifying exactly how much time remains in the current higher-timeframe candle before structural resets occur.
Other Script Features
Independent Modular Toggles: Dedicated user inputs (showZebra, showVerts) allow instantaneous toggling of horizontal price grids and vertical time lines without removing the script.
Custom Styling Options: Complete user control over horizontal step sizes, grid line counts, line styles (Solid, Dashed, Dotted), line widths, and fill color transparency.
Catatan Rilis
added feature to contain display of verticals to one just closed and the future oneSkrip open-source
