Ichimoku Cloud Thickness Spectrum
Overview
Ichimoku Cloud Thickness Spectrum is an overlay for studying the geometry and relative thickness of the projected Ichimoku cloud. It plots the classical Tenkan-sen, Kijun-sen, Senkou Span A, Senkou Span B, and an optional Chikou Span, then adds a configurable research layer derived only from the distance and relationship between the two Senkou spans.
The script is designed to make three questions easier to inspect:
- How wide is the projected cloud in a unit suited to the current instrument?
- How unusual is that width compared with the cloud's own recent history?
- Is the smoothed cloud thickness expanding, contracting, or comparatively stable?
This is a context and visualization tool. It does not generate buy or sell instructions, forecasts, targets, stops, position sizing, or performance claims.
Original contribution
Cloud thickness is a known Ichimoku concept. The original contribution of this implementation is the integrated workflow used to transform raw Span A/B distance into a configurable research display:
1. Selectable ATR, percentage, or raw-price normalization.
2. Rolling empirical percentile ranking of the selected thickness measure.
3. Percentile-weighted cloud opacity and an optional dense inner core.
4. A stabilized expansion/contraction spine with a near-zero denominator floor and release-ratio hysteresis.
5. Confirmed thin-cloud seams filtered by thin-state membership, two-sided prominence, and minimum spacing.
6. Directional projected-cloud twist markers.
7. Separate handling of the newly calculated forward cloud and the historically shifted cloud aligned with the current price bar.
8. A bilingual confirmed/live readout, confirmed-bar alerts, and Data Window diagnostics.
The classical Ichimoku formulas are standard, widely known calculations. The percentile, motion-state, seam-filtering, visualization, readout, and alert logic were implemented for this script. No source code from another Community Script is reused.
Core calculations
- Tenkan-sen: midpoint of the highest high and lowest low over the Conversion length.
- Kijun-sen: midpoint of the highest high and lowest low over the Base length.
- Senkou Span A: average of Tenkan-sen and Kijun-sen.
- Senkou Span B: midpoint of the highest high and lowest low over the Span B length.
- Raw cloud thickness: absolute distance between Senkou Span A and Senkou Span B.
- Cloud midpoint: average of Senkou Span A and Senkou Span B.
Thickness modes and percentile ranking
- ATR: raw cloud thickness divided by ATR. This is the default and relates cloud width to recent price range.
- Percent: raw cloud thickness divided by the absolute close, multiplied by 100.
- Raw: the unnormalized price distance between Span A and Span B.
The selected measure is ranked against its own rolling history with a percent-rank calculation. A reading near 10 is relatively thin within the selected lookback, while a reading near 90 is relatively thick. The result is specific to the symbol, timeframe, settings, and available history; it is not a universal market-strength score.
Stabilized expansion and contraction
The selected thickness measure is smoothed with an EMA. A one-bar percentage change is then calculated. Near a cloud twist, Span A and Span B can converge and the previous thickness can approach zero, which can make an unrestricted percentage change unstable. To reduce this effect, the denominator cannot fall below a configurable fraction of a slower EMA baseline.
The state classifier also uses release-ratio hysteresis. Entry into expansion or contraction requires the main sensitivity threshold, while release from an existing state uses a smaller configurable threshold. This reduces bar-to-bar color chatter. The state uses the previous bar and does not rely on intrabar-only persistent memory.

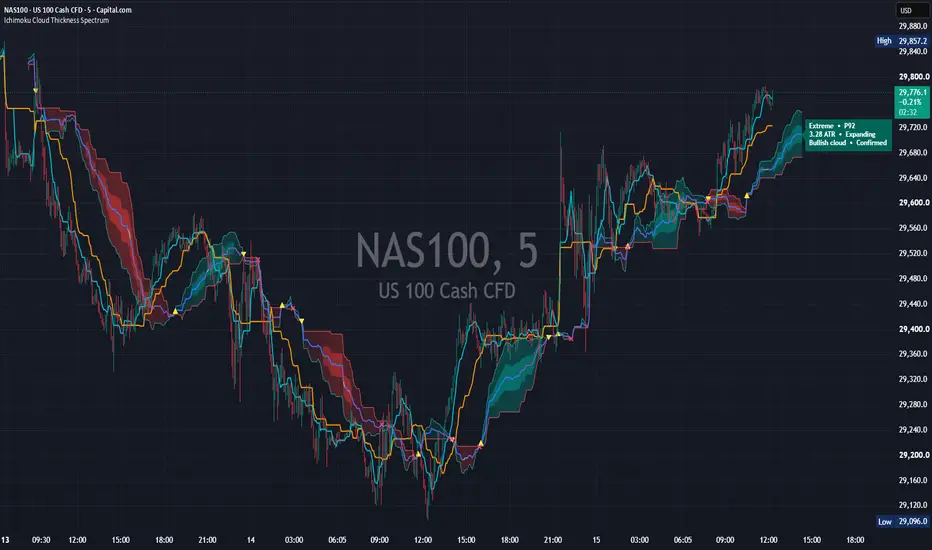

Visual interpretation
- Teal cloud: Senkou Span A is at or above Senkou Span B.
- Red cloud: Senkou Span A is below Senkou Span B.
- More transparent cloud: lower thickness percentile.
- More visible cloud: higher thickness percentile.
- Dense inner core: optional emphasis when thickness percentile is above the selected threshold.
- Blue midpoint spine: thickness is in an expanding state.
- Purple midpoint spine: thickness is in a contracting state.
- Gray midpoint spine: thickness motion is inside the release threshold.
- Yellow upward/downward triangle: confirmed bullish/bearish projected-cloud twist.
- Small pink X: confirmed local thin-cloud seam that passed the thin-state, prominence, and spacing filters.
The cloud opacity and inner core encode relative thickness only. They do not guarantee support, resistance, continuation, reversal, or breakout behavior.
Filtered thin-cloud seams
A thin seam is not every low-thickness bar. It must be a confirmed local minimum in the thickness percentile, remain at or below the user-defined thin threshold, rebound by at least the selected prominence on both sides, and pass the minimum-spacing filter.
The pivot becomes known only after the selected number of right-side bars has closed. By default, a marker is not placed to the left of the bar where confirmation became available. The optional Allow seam placement before confirmation setting can place the marker at the original pivot-projected cloud position after confirmation. This changes the visual location only and does not make the event available earlier.
Projected cloud versus current aligned cloud
The newly calculated Span A and Span B values are displayed forward by the selected displacement. This positive offset shifts calculations made from current and historical bars into future chart positions; it does not access future market data.
Price-context calculations use a different alignment. They reference the historically shifted spans that are actually visible at the current price bar. Optional inside-cloud highlighting and current-cloud transition alerts therefore do not compare current price with the newly calculated cloud plotted in the future.
Forward readout, alerts, and research outputs
The three-line readout displays the thickness state and percentile, the selected normalized thickness value and motion state, and the future-cloud direction with Live or Confirmed status. English is the default. Japanese changes the readout, hover tooltip, and combined dynamic alert messages; input names and tooltips are bilingual.
Use confirmed values in readout is enabled by default. While the latest realtime bar is open, the label uses the previous closed bar. Once the latest bar is confirmed, it uses that bar. Users can disable the setting to inspect the open realtime bar, in which case the label shows Live and may change until close.
Confirmed-bar alert conditions are available for projected twists, thin/thick state transitions, current-cloud position transitions, expansion/contraction changes, and filtered thin seams. A combined bilingual alert is also available through Any alert() function call. Additional raw, normalized, percentile, motion, seam, current-cloud, direction, and state values are provided in the Data Window.
Realtime behavior and limitations
The script does not use request.security(), lookahead, or future bars. On an open realtime bar, Tenkan-sen, Kijun-sen, the projected spans, cloud opacity, and motion state can update as the bar's high, low, and close change. Confirmed historical values do not use intrabar-only memory. The supplied alert conditions are evaluated on confirmed bars, and the combined alert() call uses once-per-bar-close frequency.
Percentile readings require sufficient history and can show a warming-up state. Results depend on the symbol, timeframe, Ichimoku lengths, normalization basis, percentile lookback, and available data. Non-time-based charts and sparse datasets may behave differently from standard time-based candles.
A thick cloud is not automatically strong support or resistance. A thin or contracting cloud is not a breakout prediction. This script provides research context and should be combined with the user's own analysis and risk process.
日本語概要
Ichimoku Cloud Thickness Spectrumは、一目均衡表の将来雲について、方向だけでなく、厚み、履歴内の相対順位、拡大・収縮状態を研究するためのオーバーレイ型インジケーターです。転換線、基準線、先行スパン1・2、任意の遅行スパンを表示し、追加分析はすべて先行スパン1と2の距離および関係から算出します。
主な特徴
- 雲の厚みをATR比率、価格比率、価格差から選択可能。
- 選択した厚みを直近履歴内のパーセンタイルへ変換。
- 厚み順位を雲の透明度と任意の高密度インナーコアへ反映。
- ゼロ近傍の分母下限とヒステリシスを備えた拡大・収縮中心線。
- 薄い状態、左右プロミネンス、最小間隔を満たした確認済み局所薄化点。
- 上向き・下向きを分けた確認済み将来雲ツイスト。
- 将来へ描画する新規計算雲と、現在価格バーへ整列した過去計算雲を分離。
- 英語・日本語を切り替えられる将来ラベル、確定足アラート、データウィンドウ研究値。
雲の厚みという概念自体は既知です。本実装の差異は、生の雲幅を正規化し、履歴順位化し、厚みの動きを安定化し、薄化点を確認・選別し、それらを一貫した視覚表現と研究出力へ統合している点です。標準一目均衡表の計算式は広く知られた古典計算であり、追加した順位化、状態判定、薄化点フィルター、表示、ラベル、アラートのロジックは本スクリプト用に実装しています。他のCommunity Scriptのソースコードは再利用していません。
表示の読み方
- 青緑の雲: 先行スパン1が先行スパン2以上。
- 赤の雲: 先行スパン1が先行スパン2未満。
- 透明度が高い雲: 厚み順位が低い。
- 濃い雲とインナーコア: 厚み順位が高い。
- 青の中心線: 厚みが拡大状態。
- 紫の中心線: 厚みが収縮状態。
- 灰色の中心線: 安定状態。
- 黄色の三角: 確認済みの上向き・下向き将来雲ツイスト。
- 小さなピンクのX: 条件を満たした確認済み局所薄化点。
厚み順位は銘柄、時間足、設定、参照期間、利用可能な履歴に依存する相対値です。雲の濃さやインナーコアは支持抵抗の保証ではありません。
確認、シフト、ライブ動作
将来雲は、現在および過去バーから計算した先行スパンを正のoffsetで将来位置へ描画したもので、未来データを取得していません。現在価格との関係には、現在バー上に実際に整列している過去計算の先行スパンを使用します。
薄化点は右側に指定本数の確定バーを必要とするため、認識に意図的な遅延があります。初期設定では確認可能になったバーより左側へ表示しません。任意設定で元の投影位置へ表示する場合も、認識自体は確認後です。
未確定リアルタイムバーでは、高値・安値・終値の更新に伴い、転換線、基準線、先行スパン、雲の透明度、拡大・収縮状態が終値確定まで変化する場合があります。将来ラベルは初期設定で確定値を使用し、用意したアラートは確定足で判定します。
本インジケーターは研究・可視化ツールです。売買指示、将来予測、目標価格、損切り、ポジションサイズ、成績統計、投資助言を提供しません。厚い雲を必ず強い支持抵抗、薄い雲や収縮中の雲を必ずブレイクする状態とは定義していません。
Ichimoku Cloud Thickness Spectrum is an overlay for studying the geometry and relative thickness of the projected Ichimoku cloud. It plots the classical Tenkan-sen, Kijun-sen, Senkou Span A, Senkou Span B, and an optional Chikou Span, then adds a configurable research layer derived only from the distance and relationship between the two Senkou spans.
The script is designed to make three questions easier to inspect:
- How wide is the projected cloud in a unit suited to the current instrument?
- How unusual is that width compared with the cloud's own recent history?
- Is the smoothed cloud thickness expanding, contracting, or comparatively stable?
This is a context and visualization tool. It does not generate buy or sell instructions, forecasts, targets, stops, position sizing, or performance claims.
Original contribution
Cloud thickness is a known Ichimoku concept. The original contribution of this implementation is the integrated workflow used to transform raw Span A/B distance into a configurable research display:
1. Selectable ATR, percentage, or raw-price normalization.
2. Rolling empirical percentile ranking of the selected thickness measure.
3. Percentile-weighted cloud opacity and an optional dense inner core.
4. A stabilized expansion/contraction spine with a near-zero denominator floor and release-ratio hysteresis.
5. Confirmed thin-cloud seams filtered by thin-state membership, two-sided prominence, and minimum spacing.
6. Directional projected-cloud twist markers.
7. Separate handling of the newly calculated forward cloud and the historically shifted cloud aligned with the current price bar.
8. A bilingual confirmed/live readout, confirmed-bar alerts, and Data Window diagnostics.
The classical Ichimoku formulas are standard, widely known calculations. The percentile, motion-state, seam-filtering, visualization, readout, and alert logic were implemented for this script. No source code from another Community Script is reused.
Core calculations
- Tenkan-sen: midpoint of the highest high and lowest low over the Conversion length.
- Kijun-sen: midpoint of the highest high and lowest low over the Base length.
- Senkou Span A: average of Tenkan-sen and Kijun-sen.
- Senkou Span B: midpoint of the highest high and lowest low over the Span B length.
- Raw cloud thickness: absolute distance between Senkou Span A and Senkou Span B.
- Cloud midpoint: average of Senkou Span A and Senkou Span B.
Thickness modes and percentile ranking
- ATR: raw cloud thickness divided by ATR. This is the default and relates cloud width to recent price range.
- Percent: raw cloud thickness divided by the absolute close, multiplied by 100.
- Raw: the unnormalized price distance between Span A and Span B.
The selected measure is ranked against its own rolling history with a percent-rank calculation. A reading near 10 is relatively thin within the selected lookback, while a reading near 90 is relatively thick. The result is specific to the symbol, timeframe, settings, and available history; it is not a universal market-strength score.
Stabilized expansion and contraction
The selected thickness measure is smoothed with an EMA. A one-bar percentage change is then calculated. Near a cloud twist, Span A and Span B can converge and the previous thickness can approach zero, which can make an unrestricted percentage change unstable. To reduce this effect, the denominator cannot fall below a configurable fraction of a slower EMA baseline.
The state classifier also uses release-ratio hysteresis. Entry into expansion or contraction requires the main sensitivity threshold, while release from an existing state uses a smaller configurable threshold. This reduces bar-to-bar color chatter. The state uses the previous bar and does not rely on intrabar-only persistent memory.
Visual interpretation
- Teal cloud: Senkou Span A is at or above Senkou Span B.
- Red cloud: Senkou Span A is below Senkou Span B.
- More transparent cloud: lower thickness percentile.
- More visible cloud: higher thickness percentile.
- Dense inner core: optional emphasis when thickness percentile is above the selected threshold.
- Blue midpoint spine: thickness is in an expanding state.
- Purple midpoint spine: thickness is in a contracting state.
- Gray midpoint spine: thickness motion is inside the release threshold.
- Yellow upward/downward triangle: confirmed bullish/bearish projected-cloud twist.
- Small pink X: confirmed local thin-cloud seam that passed the thin-state, prominence, and spacing filters.
The cloud opacity and inner core encode relative thickness only. They do not guarantee support, resistance, continuation, reversal, or breakout behavior.
Filtered thin-cloud seams
A thin seam is not every low-thickness bar. It must be a confirmed local minimum in the thickness percentile, remain at or below the user-defined thin threshold, rebound by at least the selected prominence on both sides, and pass the minimum-spacing filter.
The pivot becomes known only after the selected number of right-side bars has closed. By default, a marker is not placed to the left of the bar where confirmation became available. The optional Allow seam placement before confirmation setting can place the marker at the original pivot-projected cloud position after confirmation. This changes the visual location only and does not make the event available earlier.
Projected cloud versus current aligned cloud
The newly calculated Span A and Span B values are displayed forward by the selected displacement. This positive offset shifts calculations made from current and historical bars into future chart positions; it does not access future market data.
Price-context calculations use a different alignment. They reference the historically shifted spans that are actually visible at the current price bar. Optional inside-cloud highlighting and current-cloud transition alerts therefore do not compare current price with the newly calculated cloud plotted in the future.
Forward readout, alerts, and research outputs
The three-line readout displays the thickness state and percentile, the selected normalized thickness value and motion state, and the future-cloud direction with Live or Confirmed status. English is the default. Japanese changes the readout, hover tooltip, and combined dynamic alert messages; input names and tooltips are bilingual.
Use confirmed values in readout is enabled by default. While the latest realtime bar is open, the label uses the previous closed bar. Once the latest bar is confirmed, it uses that bar. Users can disable the setting to inspect the open realtime bar, in which case the label shows Live and may change until close.
Confirmed-bar alert conditions are available for projected twists, thin/thick state transitions, current-cloud position transitions, expansion/contraction changes, and filtered thin seams. A combined bilingual alert is also available through Any alert() function call. Additional raw, normalized, percentile, motion, seam, current-cloud, direction, and state values are provided in the Data Window.
Realtime behavior and limitations
The script does not use request.security(), lookahead, or future bars. On an open realtime bar, Tenkan-sen, Kijun-sen, the projected spans, cloud opacity, and motion state can update as the bar's high, low, and close change. Confirmed historical values do not use intrabar-only memory. The supplied alert conditions are evaluated on confirmed bars, and the combined alert() call uses once-per-bar-close frequency.
Percentile readings require sufficient history and can show a warming-up state. Results depend on the symbol, timeframe, Ichimoku lengths, normalization basis, percentile lookback, and available data. Non-time-based charts and sparse datasets may behave differently from standard time-based candles.
A thick cloud is not automatically strong support or resistance. A thin or contracting cloud is not a breakout prediction. This script provides research context and should be combined with the user's own analysis and risk process.
日本語概要
Ichimoku Cloud Thickness Spectrumは、一目均衡表の将来雲について、方向だけでなく、厚み、履歴内の相対順位、拡大・収縮状態を研究するためのオーバーレイ型インジケーターです。転換線、基準線、先行スパン1・2、任意の遅行スパンを表示し、追加分析はすべて先行スパン1と2の距離および関係から算出します。
主な特徴
- 雲の厚みをATR比率、価格比率、価格差から選択可能。
- 選択した厚みを直近履歴内のパーセンタイルへ変換。
- 厚み順位を雲の透明度と任意の高密度インナーコアへ反映。
- ゼロ近傍の分母下限とヒステリシスを備えた拡大・収縮中心線。
- 薄い状態、左右プロミネンス、最小間隔を満たした確認済み局所薄化点。
- 上向き・下向きを分けた確認済み将来雲ツイスト。
- 将来へ描画する新規計算雲と、現在価格バーへ整列した過去計算雲を分離。
- 英語・日本語を切り替えられる将来ラベル、確定足アラート、データウィンドウ研究値。
雲の厚みという概念自体は既知です。本実装の差異は、生の雲幅を正規化し、履歴順位化し、厚みの動きを安定化し、薄化点を確認・選別し、それらを一貫した視覚表現と研究出力へ統合している点です。標準一目均衡表の計算式は広く知られた古典計算であり、追加した順位化、状態判定、薄化点フィルター、表示、ラベル、アラートのロジックは本スクリプト用に実装しています。他のCommunity Scriptのソースコードは再利用していません。
表示の読み方
- 青緑の雲: 先行スパン1が先行スパン2以上。
- 赤の雲: 先行スパン1が先行スパン2未満。
- 透明度が高い雲: 厚み順位が低い。
- 濃い雲とインナーコア: 厚み順位が高い。
- 青の中心線: 厚みが拡大状態。
- 紫の中心線: 厚みが収縮状態。
- 灰色の中心線: 安定状態。
- 黄色の三角: 確認済みの上向き・下向き将来雲ツイスト。
- 小さなピンクのX: 条件を満たした確認済み局所薄化点。
厚み順位は銘柄、時間足、設定、参照期間、利用可能な履歴に依存する相対値です。雲の濃さやインナーコアは支持抵抗の保証ではありません。
確認、シフト、ライブ動作
将来雲は、現在および過去バーから計算した先行スパンを正のoffsetで将来位置へ描画したもので、未来データを取得していません。現在価格との関係には、現在バー上に実際に整列している過去計算の先行スパンを使用します。
薄化点は右側に指定本数の確定バーを必要とするため、認識に意図的な遅延があります。初期設定では確認可能になったバーより左側へ表示しません。任意設定で元の投影位置へ表示する場合も、認識自体は確認後です。
未確定リアルタイムバーでは、高値・安値・終値の更新に伴い、転換線、基準線、先行スパン、雲の透明度、拡大・収縮状態が終値確定まで変化する場合があります。将来ラベルは初期設定で確定値を使用し、用意したアラートは確定足で判定します。
本インジケーターは研究・可視化ツールです。売買指示、将来予測、目標価格、損切り、ポジションサイズ、成績統計、投資助言を提供しません。厚い雲を必ず強い支持抵抗、薄い雲や収縮中の雲を必ずブレイクする状態とは定義していません。
