OPEN-SOURCE SCRIPT
Squeeze Pro [StrixEDGE]
📊 WHAT IT DOES
StrixEDGE Squeeze Pro detects when Bollinger Bands contract inside Keltner Channels — a condition known as the "squeeze" — indicating extremely low volatility that typically precedes explosive moves. It measures squeeze intensity across three levels and uses MACD momentum to predict the breakout direction.
🔬 WHY IT'S DIFFERENT
Standard squeeze indicators show only ON/OFF. This version introduces three intensity levels: the tighter the Bollinger Bands compress inside Keltner Channels, the more powerful the expected breakout. Level 3 (extreme) squeezes historically produce the largest moves. Additionally, a real-time statistics table shows squeeze frequency, average duration, directional bias, and average post-squeeze move size for the current chart.
⚙️ HOW IT WORKS
The indicator calculates Bollinger Band width relative to Keltner Channel width. When BB fits inside KC, a squeeze is active. The ratio between their widths determines intensity:
• Level 1 (yellow dots): Light compression, ratio 0.8-1.0
• Level 2 (orange dots): Medium compression, ratio 0.5-0.8
• Level 3 (red dots): Extreme compression, ratio below 0.5

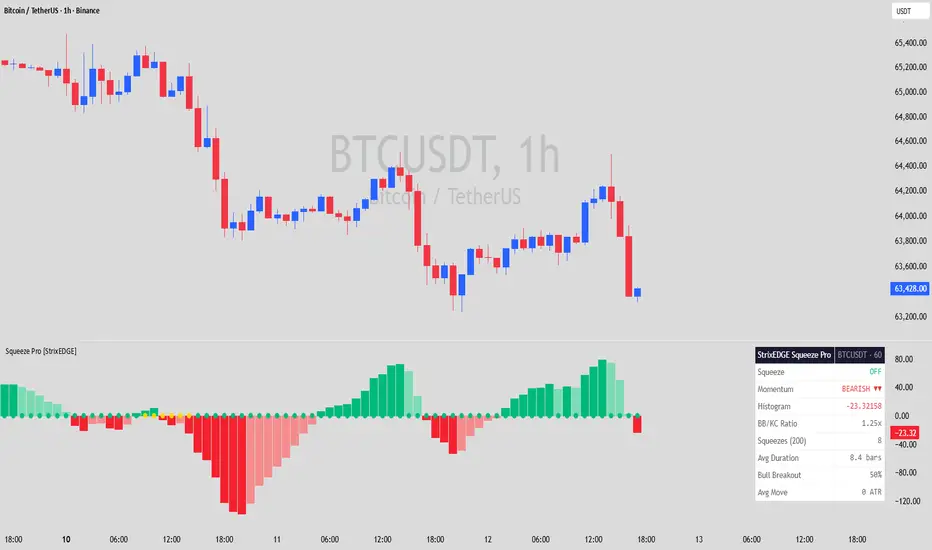

A four-color MACD momentum histogram shows breakout direction:
• Dark green = bullish accelerating, Light green = bullish fading
• Light red = bearish fading, Dark red = bearish accelerating
📈 HOW TO USE
• Wait for red/orange squeeze dots (Level 2-3) to accumulate
• When dots turn green (squeeze fires), enter in the histogram's direction
• Dark green histogram bars after squeeze = LONG entry
• Dark red histogram bars after squeeze = SHORT entry
• Level 3 squeezes produce the most reliable and powerful breakouts
• Use the stats table to understand squeeze behavior on your specific chart/timeframe
🎛️ INPUTS & DEFAULTS
BB: 20 period, 2.0 multiplier | KC: 20 period, 1.5 multiplier
MACD: 12/26/9 | Stats Lookback: 200 bars
All fully customizable.
═══════════════════════════════════════════════════════
🔧 CUSTOMIZATION
All parameters are fully adjustable through the indicator settings panel. Inputs are grouped logically:
• ⚙️ Core Parameters — main calculation settings
• 📊 Table Settings — table size (Tiny to Huge), position (4 corners), visibility toggle
• 🎨 Visual Settings — colors, show/hide elements
• 🔔 Alert Settings — threshold values for notifications
📊 DATA TABLE
A built-in data table displays all key metrics in real-time. Adjust the table size from Tiny to Huge to match your chart layout. Position it in any corner. Toggle visibility on/off.
🔔 ALERTS
Pre-built alert conditions for all major signals. Set up alerts via TradingView's alert dialog — select this indicator and choose from the available conditions.
⏱️ RECOMMENDED TIMEFRAMES
Works on all timeframes. Recommended: 1H, 4H, Daily for best signal quality. Lower timeframes produce more signals but with higher noise. Weekly/Monthly for position trading context.
✅ COMPLIANCE
• No repainting — all signals based on confirmed bar close data
• No future data references
• Open-source code — verify the logic yourself
⚠️ DISCLAIMER
This indicator is a technical analysis tool, not financial advice. It does not predict future price movements. Past patterns and signals do not guarantee future results. Trading involves substantial risk of loss. Always use proper risk management, including stop losses and appropriate position sizing. Never risk more than you can afford to lose.
