Momentum Consensus Heatmap [StrixEDGE]
█ MOMENTUM CONSENSUS HEATMAP
A multi-timeframe momentum aggregation system that scans 6 oscillators across 4 customizable timeframes and fires high-conviction BUY/SHORT signals only when a critical mass of indicators reach overbought or oversold consensus simultaneously.
█ CONCEPT
Most momentum-based strategies rely on a single oscillator on a single timeframe — a setup prone to false signals and noise. This indicator solves that by requiring cross-timeframe and cross-indicator agreement before generating a signal.
The core logic works in two layers:
Layer 1 — Timeframe Consensus (per indicator):
Each oscillator is evaluated across 4 timeframes (default: 15m, 1H, 4H, 1D). An indicator only qualifies as "Overbought" or "Oversold" when at least 3 out of 4 timeframes agree (configurable: 2/4, 3/4, or 4/4).
Layer 2 — Indicator Consensus (overall signal):
A chart signal fires only when a user-defined number of indicators (default: 4 out of 6) have all independently reached Layer 1 consensus in the same direction.
This dual-filter architecture dramatically reduces noise and isolates moments of genuine, broad-based momentum exhaustion.
█ OSCILLATORS USED
• RSI (Relative Strength Index) — Classic momentum oscillator measuring speed and magnitude of price changes. Default OB/OS: 70/30.
• Stochastic RSI — Stochastic formula applied to RSI values, more sensitive to short-term momentum shifts than raw RSI. Default OB/OS: 80/20.
• Stochastic Oscillator — Compares closing price to the high-low range over a lookback period. Independent from Stoch RSI. Default OB/OS: 80/20.
• CCI (Commodity Channel Index) — Measures deviation from the statistical mean. Unbounded, making it useful for detecting extreme momentum. Default OB/OS: +100/−100.
• Williams %R — Reflects where the current close sits relative to the highest high. Inverted scale (−100 to 0). Default OB/OS: −20/−80.
• MFI (Money Flow Index) — Volume-weighted RSI. Adds a volume confirmation dimension that pure price-based oscillators lack. Default OB/OS: 80/20.

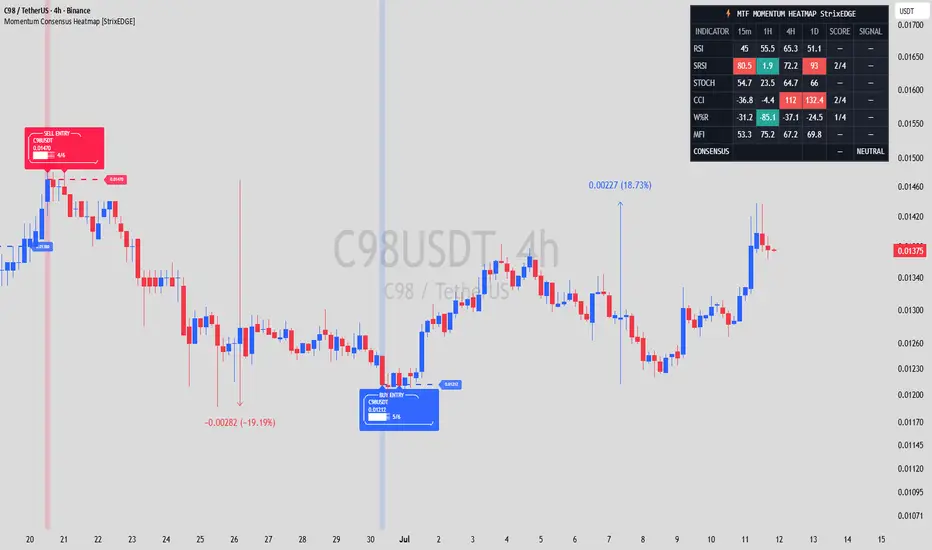

█ HEATMAP TABLE
The on-chart heatmap table provides a real-time dashboard of all 24 data points (6 indicators × 4 timeframes):
• Each cell shows the live oscillator value with color-coded background:
🔴 Red = Overbought zone
🟢 Green = Oversold zone
⚫ Gray = Neutral
• SCORE column shows how many timeframes agree for each indicator (e.g., "3/4 OB").
• SIGNAL column shows whether that individual indicator has reached consensus ("SHORT ▼" / "BUY ▲" / "—").
• CONSENSUS row at the bottom shows the overall verdict with a percentage score of indicator agreement.
Table position and text size are fully customizable through the settings panel.
█ CHART SIGNALS
When the overall consensus threshold is met:
▲ Green triangle below bar = BUY signal (oversold consensus)
▼ Red triangle above bar = SHORT signal (overbought consensus)
Signals fire only on the first bar of a new consensus event (no repeated signals while conditions persist). A subtle background color flash highlights the signal bar.
█ OPTIONAL TREND FILTER (EMA)
When enabled, signals are filtered by an EMA trend bias:
• BUY signals require price above the EMA (buying in an uptrend)
• SHORT signals require price below the EMA (shorting in a downtrend)
This is disabled by default to keep the indicator pure momentum-based, but can significantly improve signal quality in trending markets.
█ SETTINGS OVERVIEW
⏱ Timeframes — All 4 timeframes are independently configurable.
⚙ Indicator Lengths — Full control over each oscillator's lookback period.
📊 OB/OS Thresholds — Adjust overbought/oversold levels for every oscillator independently.
🎯 Signal Rules:
• Min TF Consensus: How many timeframes must agree per indicator (2-4, default 3).
• Min Indicators: How many indicators must reach consensus for a chart signal (1-6, default 4).
🎨 Table Appearance — Position, size, and full color customization (OB color, OS color, neutral, header, text).
🔔 Alerts — Native TradingView alerts with detailed messages including ticker, timeframe, and consensus count.
█ HOW TO USE
1. Apply the indicator to any chart (works on all instruments and timeframes).
2. The heatmap table updates in real time — use it as a momentum dashboard.
3. Watch for chart signals:
• When 4+ indicators show oversold consensus across 3+ timeframes → BUY signal.
• When 4+ indicators show overbought consensus across 3+ timeframes → SHORT signal.
4. Set up TradingView alerts to get notified when signals fire.
5. For higher conviction:
• Increase "Min Indicators" to 5 or 6 (fewer but stronger signals).
• Require 4/4 timeframe agreement instead of 3/4.
• Enable the EMA trend filter.
█ IMPORTANT NOTES
• This indicator uses request.security() to fetch multi-timeframe data. On the current timeframe, values update in real time. Higher timeframe values reflect the last closed bar of that timeframe.
• Signals are non-repainting once the bar closes. Intrabar, the table values and potential signals update as new ticks arrive (expected behavior for a real-time dashboard).
• This tool is designed for identifying momentum exhaustion zones. It does not predict direction — use it in confluence with price action, support/resistance, and your broader trading plan.
• Past performance is not indicative of future results. Always use proper risk management.
█ CREDITS & LICENSE
Open source under Mozilla Public License 2.0.
Built with Pine Script™ v6.
