Introduction
Helios Volatility Atlas is an open-source regime and volatility mapping indicator. It combines an adaptive baseline, DMI/ADX trend strength, volatility scoring, VWAP sigma bands, premium/discount structure, squeeze detection, retest zones, right-side level rails, and a top-right dashboard.
The problem Helios addresses is market context. A trend signal means something different in compression than it does during expansion. A retest means something different near discount than it does at an outer volatility channel. Helios brings those layers into one chart so users can interpret price action with regime, volatility, and location in view.
Core Concepts
1. Adaptive Baseline
The baseline blends an EMA-style trend component with an efficiency-ratio adaptive component. When price moves efficiently, the adaptive side reacts more. During choppy movement, the baseline becomes slower and more stable.
2. Volatility Score
ATR is compared against its own moving average and standard deviation. The result is normalized into a 0-100 volatility score so the dashboard can distinguish low, moderate, and high volatility states.
3. Institutional Channels
Helios draws a channel around a mean using ATR-based distances. Inner channels describe normal volatility, while outer pockets mark more extended price areas where reversion or continuation context may matter.
4. Squeeze and Expansion State
The squeeze model compares a Bollinger-style width against a Keltner-style width. When compression releases, the chart highlights a transition from low-energy conditions into expansion.
5. Retest Zones and Rails
Confirmed retests can create projected zones. Right-side rails label important live references such as baseline, VWAP, channels, premium/discount levels, and previous day levels.
Features
- Adaptive baseline: Blends trend-following and efficiency-aware smoothing
- Volatility score: Converts ATR expansion/compression into a dashboard value
- Trend cloud: Fills the space between baseline and VWAP
- VWAP sigma bands: Shows price stretch around VWAP
- Premium/discount map: Uses a rolling anchor range with equilibrium, discount, and premium levels
- Squeeze detection: Highlights compression and release states
- Retest zones: Projects confirmed bullish and bearish retest areas
- Right-side rails: Labels baseline, VWAP, channels, premium/discount, and day levels
- Theme presets: Includes Helios, Consensus Aqua, Sentinel Neon, and Cobalt Risk color families

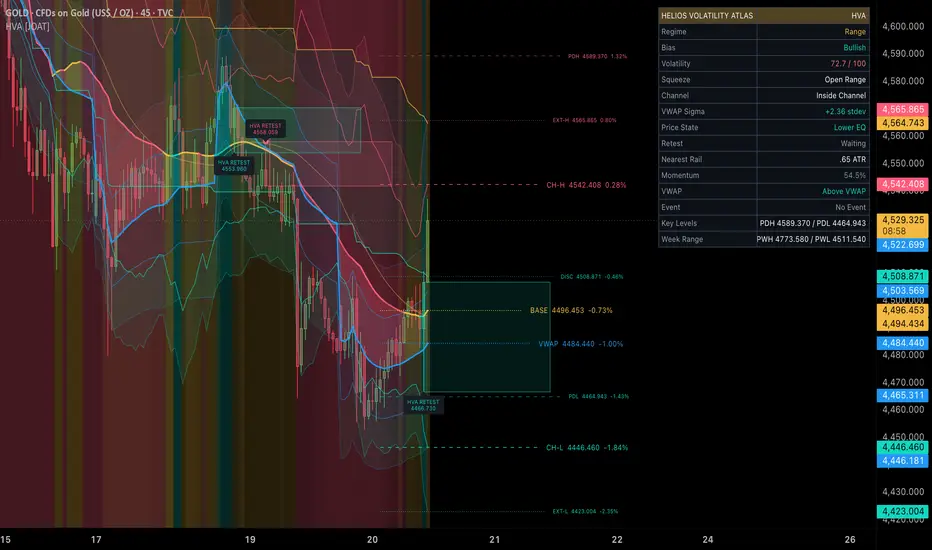

- Top-right dashboard: Shows regime, bias, volatility, squeeze, channel, VWAP sigma, price state, and key levels
Input Parameters
Core Engine:
- Adaptive Baseline Length
- Efficiency Lookback
- ATR Length
- ADX / DMI Length
- Volatility Window
Volatility System:
- Channel Memory
- Base Channel ATR Multiple
- Outer Channel ATR Multiple
- Squeeze Length
- Squeeze BB and KC multipliers
Display:
- Show Trend Cloud
- Show VWAP Sigma Bands
- Show Retest Zones
- Show Right-Side Level Rails
- Theme Preset
- Dashboard Text Size
How to Use This Indicator
Step 1: Read the regime
The dashboard classifies the current state as bullish, bearish, expansion, or range.
Step 2: Check volatility
Use the volatility score and squeeze row to decide whether the market is compressed or expanding.
Step 3: Compare price to VWAP and channels
VWAP sigma and ATR channels show whether price is near value, stretched, or reverting from an outer area.
Step 4: Use retest zones as context
Retest zones mark recent confirmed reactions. They are contextual levels, not automatic entries.
Indicator Limitations
- Adaptive baselines can lag during sudden reversals
- Squeeze release does not define direction by itself
- Retest zones can fail in strong momentum conditions
- Higher volatility symbols may require adjusted ATR/channel settings
Originality Statement
Helios Volatility Atlas combines adaptive trend state, DMI/ADX confirmation, ATR volatility scoring, VWAP sigma distance, squeeze detection, premium/discount location, projected retest zones, and right-edge rails into a single open-source Pine v6 regime atlas. The components are designed to work as one context engine, not as a loose mashup.
Disclaimer
This script is for educational and informational use only. It is not financial advice and does not predict future price direction. Use independent analysis and risk management.
-Made with passion by jackofalltrades
