🎯 Sweep Reclaim Entry Engine [trade_w_samet]
Sweep Reclaim Entry Engine [trade_w_samet] is a structured liquidity-sweep and reclaim analysis indicator designed to help traders study confirmed swing levels, controlled liquidity penetrations, reclaim strength, setup quality, directional alignment, and visual risk/reward models directly on the price chart.
This script focuses on one main concept:
Confirmed swing sweep and reclaim-based entry visualization.
It is not designed to mark every wick beyond every nearby high or low.
It is not designed to treat every penetration as a valid liquidity sweep.
It is not designed to create constant buy/sell labels.
Instead, the goal of Sweep Reclaim Entry Engine is to confirm structural swing levels, monitor their lifecycle, detect controlled penetrations beyond those levels, validate directional reclaims, apply configurable quality and market filters, and visualize accepted setups using one Entry level, one protective Stop Loss level, and one configurable risk/reward target.
The indicator includes:
• Confirmed swing-high and swing-low detection
• Reactive, Balanced, Structural, and Custom swing modes
• ATR-normalized level merging and proximity logic
• Fresh, Armed, Swept, Reclaimed, and Consumed level states
• Wick Only, Wick or Body, and Body Required sweep modes
• Minimum and maximum ATR-normalized sweep-depth filters
• First-penetration-only logic
• Multi-level sweep selection
• Dual-side sweep protection
• Same Candle, Fast, Flexible, and Custom reclaim windows
• Loose, Balanced, Strict, and Custom reclaim-strength modes
• Reclaim close-buffer, close-location, body-strength, and wick-rejection checks
• A transparent 0–100 setup-quality score
• A+, A, and B setup grades
• Loose, Balanced, Strict, and Custom quality-filter modes
• Relative-volume quality context
• Highest Quality and Nearest Level candidate-selection modes
• Direction, cooldown, cluster, duplicate-bar, and opposite-conflict controls
• Chart EMA, confirmed higher-timeframe EMA, and Combined EMA bias
• Optional volatility and market-efficiency filtering
• Entry ATR and Sweep Extreme stop-loss models
• A configurable 0.25R to 15R target
• One-active-trade-at-a-time logic
• Stop First and Target First same-bar assumptions
• Active TP / SL boxes and Entry / TP / SL lines
• SL-specific visual cleanup
• Important-only sweep-label filtering
• Full, Clean, Minimal, and Mobile chart profiles
• Full, Compact, Trade Only, and Off dashboard modes
• Adjustable marker, label, result, and dashboard sizes
• Crimson, Ice Blue, Monochrome, and fully custom colors
• Static TradingView alert conditions
• Optional dynamic alert() messages
• Compact bottom-right dashboard
• Confirmed-close permanent signals
• Confirmed higher-timeframe data handling
The purpose of this script is to help users visually study where a confirmed swing-level sweep is followed by a qualified directional reclaim.
It should be treated as a chart-analysis and educational decision-support tool.
It is not financial advice.
It is not an automated trading system.
It does not guarantee profitable trades.
It does not execute broker orders.
It does not replace personal analysis, risk management, or trade validation.
━━━━━━━━━━━━━━━━━━━━━━
📌 OVERVIEW
━━━━━━━━━━━━━━━━━━━━━━
At a high level, Sweep Reclaim Entry Engine does the following:
• Detects confirmed bullish and bearish swing pivots.
• Stores accepted swing highs and swing lows in separate internal level memories.
• Prevents near-duplicate levels using ATR-based merge tolerance.
• Tracks whether each level is Fresh, Armed, Swept, Reclaimed, or Consumed.
• Arms a level when price moves within the selected ATR distance.
• Detects a new penetration beyond an eligible swing level.
• Measures penetration depth relative to ATR.
• Classifies the sweep as wick-based or body-based.
• Applies minimum depth, maximum depth, first-interaction, multi-level, and dual-side rules.
• Moves the accepted level into the Swept state.
• Waits for price to reclaim the level within the selected reclaim window.
• Checks reclaim close buffer, close location, candle body strength, candle direction, and wick rejection.
• Calculates a 0–100 setup-quality score.
• Assigns an internal A+, A, or B grade.
• Applies the selected minimum-quality requirement.
• Compares multiple eligible reclaim candidates.
• Applies direction, trend-bias, market, cooldown, clustering, duplicate, and conflict rules.
• Confirms final BUY and SELL reclaim signals only after candle close.
• Projects Entry, Stop Loss, and one configurable take-profit target.
• Maintains one active visual trade model at a time.
• Tracks TP and SL events after the entry candle.
• Applies the selected same-candle TP / SL assumption.
• Preserves successful models when historical display is enabled.
• Deletes failed-model boxes, lines, and original signal labels after SL.
• Leaves only a small CLOSED SL HIT label for failed models.
• Displays engine, bias, quality, signal, and trade information in the bottom-right dashboard.
• Provides sweep, signal, grade, trade-open, TP, and SL alerts.
The script is intentionally built as a structured sequence.
It does not include machine-learning prediction.
It does not claim that every sweep will reverse.
It does not treat the quality score as a probability.
It provides a transparent way to study confirmed swing sweeps, directional reclaims, and their visual trade lifecycle.
━━━━━━━━━━━━━━━━━━━━━━
🧠 CORE IDEA
━━━━━━━━━━━━━━━━━━━━━━
The core idea behind Sweep Reclaim Entry Engine is based on the difference between a liquidity penetration and a confirmed reclaim.
A sweep occurs when price trades beyond a previously confirmed swing high or swing low.
A reclaim occurs when price returns through that level and closes with enough directional strength to satisfy the active rules.
The engine does not treat the sweep itself as an entry.
Instead, it separates the process into distinct stages:
Confirmed swing
→ managed level
→ level approach
→ valid penetration
→ sweep classification
→ reclaim window
→ reclaim confirmation
→ quality scoring
→ final filtering
→ confirmed entry model
For a bullish setup, the engine studies a penetration below a confirmed swing low and a later close back above that level.
For a bearish setup, the engine studies a penetration above a confirmed swing high and a later close back below that level.
The reclaim can occur on the same candle or within a configurable number of bars.
The final setup can then be evaluated using:
• sweep depth
• reclaim close quality
• wick rejection
• candle-body strength
• level freshness
• relative volume
• displacement
• market condition
• level cleanliness
• chart EMA alignment
• confirmed higher-timeframe EMA alignment
• cooldown and cluster rules
• opposite-signal conflict handling
The goal is not to maximize signal quantity.
The goal is to create an understandable process that explains how a stored swing level becomes a sweep candidate, how that sweep becomes a reclaim candidate, and how the final entry model is accepted or rejected.
━━━━━━━━━━━━━━━━━━━━━━
🧩 WHY THIS SCRIPT IS NOT A SIMPLE BUY/SELL INDICATOR
━━━━━━━━━━━━━━━━━━━━━━
Sweep Reclaim Entry Engine is not intended to be used as a blind buy/sell system.
The script is structured as a visual review workflow:
A pivot becomes confirmed
→ the swing level is stored
→ duplicate levels are filtered
→ price approaches the level
→ the level becomes Armed
→ price creates a new penetration
→ penetration type and depth are validated
→ the level becomes Swept
→ the reclaim window opens
→ reclaim strength is evaluated
→ a quality score is calculated
→ the setup receives a grade
→ eligible candidates are compared
→ execution filters are checked
→ the signal must remain valid at candle close
→ Entry, SL, and TP are projected
→ the active model is monitored
→ the model closes at TP or SL
→ the visual result is archived or cleaned
Each stage serves a specific purpose.
The confirmed-pivot engine defines the structural reference.
The level-memory engine prevents the script from treating all historical highs and lows as permanently active.
The Armed state separates a distant level from a level that price is actively approaching.
The sweep engine distinguishes a controlled penetration from a deep breakout.
The reclaim engine defines what qualifies as a directional return through the level.
The quality engine combines several independent setup characteristics.
The execution engine prevents clustered, duplicate, conflicting, or bias-opposed entries.
The trade model standardizes the visual Entry, risk, and reward references.
The dashboard explains the engine state and active model.
This makes the script a structured sweep-reclaim analysis tool, not a guaranteed signal generator.
━━━━━━━━━━━━━━━━━━━━━━
⚙️ HOW THE SCRIPT WORKS
━━━━━━━━━━━━━━━━━━━━━━
The script operates through several connected systems.
First, it confirms swing highs and swing lows using the selected pivot sensitivity.
Reactive mode uses shorter pivot lengths.
Balanced mode uses medium pivot lengths.
Structural mode uses wider pivot lengths and is the default.
Custom mode allows manual left-side and right-side pivot lengths.
Pine Script®
After confirmation, accepted swing levels are stored in separate high-side and low-side arrays.
Each level stores contextual information including:
• level price
• original pivot bar
• lifecycle state
• interaction count
• sweep bar
• sweep depth
• sweep extreme
• sweep type
• reclaim bar
• visual line reference
When price approaches a stored level, the level can move from Fresh to Armed.
When price creates a new penetration beyond the level, the engine checks:
• penetration mode
• minimum ATR depth
• maximum ATR depth
• first-attempt permission
• multi-level selection
• dual-side sweep protection
Pine Script®
A valid sweep moves the level into the Swept state.
The reclaim engine then waits for price to close back through the level within the selected window.
The reclaim must pass every enabled strength requirement.
The accepted candidate receives a quality score and grade.
If more than one candidate qualifies, the active Candidate Selection mode chooses the final candidate.
The final signal must also pass direction, bias, market, cooldown, cluster, duplicate-bar, and conflict rules.
Only after the bar closes with all conditions still valid can the permanent BUY or SELL reclaim signal and visual trade model appear.
━━━━━━━━━━━━━━━━━━━━━━
🟢 BULLISH SWEEP RECLAIM LOGIC
━━━━━━━━━━━━━━━━━━━━━━
A bullish sweep-reclaim setup begins with a confirmed swing low.
The swing low must be stored and remain eligible.
Price can then move close enough to place the level in the Armed state.
A bullish sweep is created when price penetrates below the swing-low level and the penetration satisfies the active sweep rules.
The engine may require:
• a wick-only penetration
• a wick or body penetration
• body participation beyond the level
• a minimum ATR-normalized depth
• a maximum ATR-normalized depth
• the first valid penetration attempt
• selection as the nearest valid level
• no simultaneous high-side sweep
After the low-side sweep, the bullish reclaim must occur inside the selected reclaim window.
The reclaim can require:
• a close above the swept level
• an ATR-based close buffer above the level
• a high close location inside the candle
• minimum body strength relative to ATR
• a bullish candle body when enabled
• minimum lower-wick rejection for same-candle reclaims
• a final score above the active quality threshold
• permission from the selected signal direction
• bullish chart and/or HTF EMA alignment
• permission from the active market-condition filter
• cooldown and cluster permission
• no stronger bearish conflict
Pine Script®

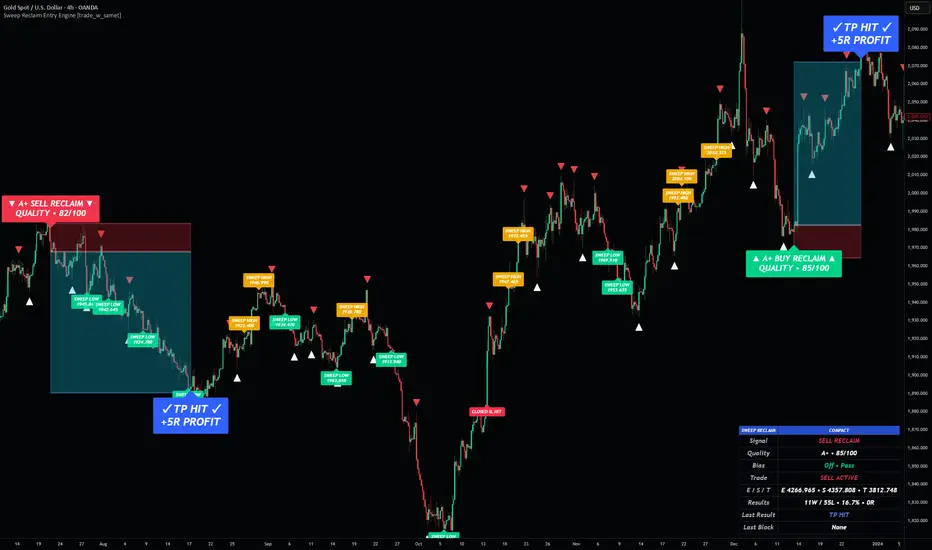

When every enabled rule passes at candle close, the script displays a BUY RECLAIM label.
If the visual trade model is enabled and no trade is active, the setup creates:
• Entry at the confirmed signal-bar close
• Stop Loss below entry or below the sweep extreme
• TP above entry
• blue/cyan reward box
• red risk box
• thick white Entry line
• blue TP line
• red SL line
This does not mean price must continue upward.
It means the configured bullish sweep-reclaim conditions were confirmed at the close of that candle.
━━━━━━━━━━━━━━━━━━━━━━
🔴 BEARISH SWEEP RECLAIM LOGIC
━━━━━━━━━━━━━━━━━━━━━━
A bearish sweep-reclaim setup begins with a confirmed swing high.
The swing high must be stored and remain eligible.
Price can then move close enough to place the level in the Armed state.
A bearish sweep is created when price penetrates above the swing-high level and the penetration satisfies the active sweep rules.
The engine may require:
• a wick-only penetration
• a wick or body penetration
• body participation beyond the level
• a minimum ATR-normalized depth
• a maximum ATR-normalized depth
• the first valid penetration attempt
• selection as the nearest valid level
• no simultaneous low-side sweep
After the high-side sweep, the bearish reclaim must occur inside the selected reclaim window.
The reclaim can require:
• a close below the swept level
• an ATR-based close buffer below the level
• a low close location inside the candle
• minimum body strength relative to ATR
• a bearish candle body when enabled
• minimum upper-wick rejection for same-candle reclaims
• a final score above the active quality threshold
• permission from the selected signal direction
• bearish chart and/or HTF EMA alignment
• permission from the active market-condition filter
• cooldown and cluster permission
• no stronger bullish conflict
When every enabled rule passes at candle close, the script displays a SELL RECLAIM label.
If the visual trade model is enabled and no trade is active, the setup creates:
• Entry at the confirmed signal-bar close
• Stop Loss above entry or above the sweep extreme
• TP below entry
• blue/cyan reward box
• red risk box
• thick white Entry line
• blue TP line
• red SL line
This does not mean price must continue downward.
It means the configured bearish sweep-reclaim conditions were confirmed at the close of that candle.
━━━━━━━━━━━━━━━━━━━━━━
💎 SWEEP RECLAIM QUALITY FILTER SYSTEM
━━━━━━━━━━━━━━━━━━━━━━
The script includes a multi-component quality system to reduce low-context reclaim signals.
This is important because not every sweep has the same structural meaning and not every reclaim candle has the same directional strength.
The quality engine evaluates eight components:
Sweep Depth — maximum 15 points
Measures where the penetration sits inside the active minimum-to-maximum sweep range.
The score favors a controlled sweep depth rather than automatically rewarding the deepest penetration.
Reclaim Close — maximum 20 points
Measures the directional location of the candle close.
A bullish setup receives more points when the reclaim closes near the top of the candle.
A bearish setup receives more points when the reclaim closes near the bottom.
Wick Rejection — maximum 15 points
Measures the directional rejection wick.
For multi-bar reclaims, the engine can also consider the stored sweep type and current reclaim structure.
Level Freshness — maximum 10 points
Newer levels generally receive more freshness points than levels that have remained active for a long time.
Relative Volume — maximum 10 points
Compares current volume with the selected baseline length.
When useful volume is not available, the engine avoids treating the setup as automatically invalid.
Displacement — maximum 15 points
Combines candle-body strength and the distance reclaimed through the level.
Market Condition — maximum 10 points
Uses candle range and ATR-regime information.
Level Cleanliness — maximum 5 points
Rewards levels with fewer prior interaction attempts.
The total is rounded and limited to 0–100.
Pine Script®
The quality score is not a win probability.
It is not a verified accuracy percentage.
It is an internal measurement of how closely the completed setup matches the selected structural rules.
━━━━━━━━━━━━━━━━━━━━━━
📏 SWEEP / ATR FILTER
━━━━━━━━━━━━━━━━━━━━━━
The sweep-depth filter measures the penetration beyond a swing level relative to ATR.
For a high-side sweep:
Sweep Depth = (High − Swing High) / ATR.
For a low-side sweep:
Sweep Depth = (Swing Low − Low) / ATR.
Minimum Sweep Depth rejects penetrations that may be too small to represent a meaningful liquidity event.
Maximum Sweep Depth rejects penetrations that may be too deep to represent a controlled sweep and may instead behave more like a breakout.
The default values are:
Minimum Sweep Depth = 0.05 ATR.
Maximum Sweep Depth = 0.80 ATR.
ATR normalization allows the threshold to adapt to changing volatility.
A 0.20 ATR sweep represents a relative move rather than a fixed number of points.
This helps the engine operate across different price scales.
However, ATR normalization does not make one configuration universally suitable.
A symbol with session gaps, irregular volume, or unusual volatility can still behave differently from another market.
A deeper sweep is not automatically a better setup.
Sweep depth is only one component of the complete reclaim process.
━━━━━━━━━━━━━━━━━━━━━━
🕯️ DISPLACEMENT QUALITY FILTER
━━━━━━━━━━━━━━━━━━━━━━
The displacement component evaluates whether the reclaim candle moves with enough directional force.
The engine considers:
• candle-body size relative to ATR
• distance closed beyond the reclaimed level
• bullish or bearish directional recovery
For bullish setups, stronger displacement generally means:
• a larger bullish body
• a close further above the reclaimed swing low
For bearish setups, stronger displacement generally means:
• a larger bearish body
• a close further below the reclaimed swing high
Reclaim Strength Mode can also impose a minimum body-size requirement before the setup reaches the quality-scoring stage.
Loose mode allows smaller directional bodies.
Balanced mode uses moderate requirements.
Strict mode requires stronger completed-candle behavior.
Custom mode exposes the manual threshold.
Displacement is not used as a prediction.
It is used to measure whether the completed reclaim candle demonstrates the selected degree of directional response.
━━━━━━━━━━━━━━━━━━━━━━
📊 REACTION STRENGTH FILTER
━━━━━━━━━━━━━━━━━━━━━━
The reaction-strength layer evaluates the candle that confirms the reclaim.
The active rules can include:
• close through the swept level
• ATR-based close buffer
• directional close location
• body strength relative to ATR
• bullish or bearish candle direction
• same-candle rejection wick
Reclaim Strength Mode provides:
Loose
Uses lower close-buffer, close-location, body-strength, and wick-rejection requirements.
Balanced
Uses moderate thresholds.
Strict
Uses the strongest built-in thresholds and is the default.
Custom
Uses the manual values selected by the user.
Strict mode applies:
• 0.05 ATR reclaim close buffer
• 0.70 directional close-location threshold
• 0.15 ATR minimum body strength
• 0.28 same-candle wick-rejection ratio
Require Directional Candle Body can additionally require:
• close above open for bullish reclaims
• close below open for bearish reclaims
Require Same-Candle Wick Rejection applies the wick requirement when the sweep and reclaim occur on the same candle.
The reaction-strength system is designed to distinguish a simple touch from a stronger completed directional response.
━━━━━━━━━━━━━━━━━━━━━━
🧼 CONFIRMED RECLAIM FILTER
━━━━━━━━━━━━━━━━━━━━━━
The reclaim layer requires the setup to remain valid at candle close.
Available reclaim windows include:
Same Candle
The penetration and reclaim must complete on the same candle.
Fast
The reclaim can occur on the sweep candle or the next candle.
Flexible
The reclaim can occur within three bars and is the default.
Custom
The user selects the maximum number of bars.
The engine stores the sweep bar and compares the current bar with the allowed reclaim window.
The sweep state timeout is automatically prevented from becoming shorter than the active reclaim window.
A reclaimed setup can also be blocked by:
• insufficient close buffer
• weak close location
• weak candle body
• missing directional body
• missing same-candle wick rejection
• low quality score
• direction restriction
• chart EMA misalignment
• higher-timeframe EMA misalignment
• market-condition failure
• active-trade restriction
• cooldown
• same-direction clustering
• duplicate-bar protection
• opposite-direction conflict
Final permanent BUY and SELL signals require confirmed-bar logic.
This means an unfinished realtime candle can temporarily trade beyond a level, but it does not become a permanent reclaim signal unless the conditions remain valid when the bar closes.
━━━━━━━━━━━━━━━━━━━━━━
🎯 ENTRY MODEL
━━━━━━━━━━━━━━━━━━━━━━
When a final BUY or SELL reclaim signal passes every enabled condition, the script can create a visual entry model.
The Entry reference is the close of the confirmed signal candle.
The engine stores:
• trade direction
• entry bar
• entry price
• stop price
• risk distance
• selected RR
• target price
• setup quality
• setup grade
The trade model opens only when:
• Enable Trade Model is active
• no visual trade is already active
• the final reclaim signal is confirmed
• the calculated risk distance is larger than the symbol’s minimum tick
• same-bar reopening is permitted when the previous model closed on the same candle
Pine Script®
The entry model is a visual analysis reference.
It is not a broker market order.
It does not include spread, slippage, commission, latency, or partial fills.
━━━━━━━━━━━━━━━━━━━━━━
🛑 ATR STOP-LOSS MODEL
━━━━━━━━━━━━━━━━━━━━━━
The script includes two stop-placement models.
Entry ATR Multiplier
For BUY setups:
Stop = Entry − ATR × multiplier.
For SELL setups:
Stop = Entry + ATR × multiplier.
This is the default mode.
The default Entry ATR Stop Multiplier is 2.00 ATR.
The multiplier can be adjusted from 0.10 to 15.00.
Sweep Extreme + ATR Buffer
For BUY setups:
Stop = stored low-side sweep extreme − ATR buffer.
For SELL setups:
Stop = stored high-side sweep extreme + ATR buffer.
The default Sweep-Extreme Buffer is 0.10 ATR.
Pine Script®
The selected stop determines the visual risk distance.
That risk distance also determines the take-profit distance.
The displayed stop is a planning reference only.
It does not place or manage a broker stop order.
━━━━━━━━━━━━━━━━━━━━━━
🎯 TAKE-PROFIT RR MODEL
━━━━━━━━━━━━━━━━━━━━━━
The script uses one configurable take-profit target.
The target is calculated from the distance between Entry and Stop Loss.
For BUY models:
TP = Entry + Risk × RR.
For SELL models:
TP = Entry − Risk × RR.
The Risk / Reward Target can be adjusted from:
0.25R to 15.00R.
The default is 2.00R.
Pine Script®
The displayed RR controls the geometric distance of the projected target.
It does not represent a performance claim.
It does not guarantee that price will reach the target.
Changing the stop model or stop multiplier changes the target distance because both levels are based on the same initial risk.
━━━━━━━━━━━━━━━━━━━━━━
📦 ACTIVE TP / SL BOX SYSTEM
━━━━━━━━━━━━━━━━━━━━━━
When a confirmed reclaim model opens, the script can draw:
• blue/cyan TP box
• red SL box
• thick white Entry line
• blue TP line
• red SL line
• BUY RECLAIM or SELL RECLAIM label
The active boxes and lines extend to the right as new candles appear.
The Entry line is intentionally pure white and visually thicker than the TP and SL references.
When TP is reached:
• the trade model closes
• active boxes and lines stop at the closing bar
• the TP result label appears
• completed visuals can remain when Show Historical Trades is enabled
• completed visuals can be faded using Completed Trade Transparency
When SL is reached:
• the TP box is deleted
• the SL box is deleted
• the Entry line is deleted
• the TP line is deleted
• the SL line is deleted
• the original BUY or SELL signal label associated with that trade is deleted
• only a small CLOSED SL HIT label remains
This SL-specific cleanup keeps failed models visually concise.
The active trade model is educational and bar-based.
It does not simulate real broker execution.
━━━━━━━━━━━━━━━━━━━━━━
🚦 ONE ACTIVE TRADE AT A TIME
━━━━━━━━━━━━━━━━━━━━━━
The script includes one-active-trade-at-a-time logic.
If a visual trade model is active, the engine does not open another trade model until the current model closes.
Block Signals During Active Trade can also prevent new final signal labels from being accepted while the active model is open.
Allow New Signal on Exit Bar controls whether a new model can open on the same candle that closes the current model.
The default is disabled.
This design separates:
• market-level calculation
• sweep and reclaim detection
• permission to create a new trade model
The engine can continue updating structural levels and market context while a model is active.
However, the one-active-model rule prevents overlapping TP / SL boxes and conflicting lifecycle states.
This is a visual-management rule.
It is not a restriction on the user’s personal trading activity.
━━━━━━━━━━━━━━━━━━━━━━
⚠️ SAME-CANDLE TP / SL HANDLING
━━━━━━━━━━━━━━━━━━━━━━
The script begins checking TP and SL after the entry candle.
If both TP and SL are touched on the same later candle, standard OHLC data does not reveal the actual intrabar sequence.
The script therefore provides two selectable assumptions:
Stop First
The stop is processed before the target.
This is the default and more conservative assumption.
Target First
The target is processed before the stop.
This is the more optimistic assumption.
Neither option reproduces exact tick-level broker execution.
The model does not include:
• bid/ask spread
• slippage
• order latency
• partial fills
• queue priority
• execution venue rules
• intrabar tick order
Same-candle handling is a modeling choice required by the limits of standard bar data.
━━━━━━━━━━━━━━━━━━━━━━
🏷️ SWEEP RECLAIM LABELS
━━━━━━━━━━━━━━━━━━━━━━
The script uses separate labels for sweep events, reclaim signals, and trade results.
Sweep labels can display:
SWEEP HIGH
or:
SWEEP LOW
The Sweep Label Filter can show:
Important Only
Only sweeps that meet the active importance threshold receive visible labels.
All Valid
Every accepted sweep can receive a visible label.
The default Minimum Sweep Importance is 65.
BUY and SELL reclaim labels can use three display styles:
Full
Example:
▲ A+ BUY RECLAIM ▲
QUALITY • 87/100
or:
▼ A+ SELL RECLAIM ▼
QUALITY • 84/100
Compact
Displays a shorter direction, grade, and score format.
Icon
Displays a minimal directional icon and optional score.
Show Grade on Signal Labels controls A+, A, or B display.
Show Score on Signal Labels controls the 0–100 score display.
All dynamic label text uses bold and italic formatting.
Independent size controls are available for:
• sweep labels
• BUY / SELL signal labels
• TP / SL result labels
• confirmed pivot triangle markers
━━━━━━━━━━━━━━━━━━━━━━
📍 SWING LEVEL DISPLAY MODES
━━━━━━━━━━━━━━━━━━━━━━
The indicator includes several level-display modes.
All Active
Displays eligible Fresh, Armed, Swept, and Reclaimed swing levels according to the active color and line-style rules.
Armed + Events
Focuses on Armed, Swept, and Reclaimed levels.
Events Only
Shows levels primarily when a sweep or reclaim event has occurred.
Hidden
Keeps the level engine active while removing swing-level lines from the chart.
Level Line Style provides:
Adaptive
Changes the line appearance according to level state.
Solid
Uses solid lines.
Dashed
Uses dashed lines.
Dotted
Uses dotted lines.
Show Swing-High Levels and Show Swing-Low Levels can independently control each side.
Fade Older Levels can reduce the opacity of older stored levels.
Level Width controls line thickness.
The display mode affects chart presentation only.
It does not change the underlying sweep and reclaim calculations.
━━━━━━━━━━━━━━━━━━━━━━
🧹 LEVEL INVALIDATION
━━━━━━━━━━━━━━━━━━━━━━
Stored levels do not remain eligible forever.
A level can be removed or retired because:
• it exceeds Maximum Level Age
• a confirmed breakout exceeds the allowed invalidation distance
• its sweep state exceeds the active timeout
• it completes its reclaimed hold period
• its first penetration is rejected while First Penetration Only is active
• it is consumed after failing a final execution filter
• the maximum active-level capacity removes an older level
Breakout Invalidation uses ATR-normalized distance.
This helps distinguish a controlled sweep from a confirmed close that travels too far beyond an unswept level.
Sweep State Timeout limits how long a Swept level can wait for reclaim.
Reclaimed Level Hold Bars controls how long the line remains highlighted after a successful reclaim.
Consume Filtered Reclaims determines whether a reclaim candidate rejected by direction, bias, market, cooldown, cluster, or conflict rules is permanently retired.
Removing stale or invalid levels helps reduce repeated signals from outdated price references.
━━━━━━━━━━━━━━━━━━━━━━
📟 DASHBOARD
━━━━━━━━━━━━━━━━━━━━━━
The script includes a dashboard positioned in the bottom-right corner.
Dashboard modes include:
Full
Displays the broadest engine diagnostics.
Compact
Shows a reduced selection of important engine and trade information.
Trade Only
Focuses on the active trade lifecycle.
Off
Hides the dashboard.
The Full dashboard can display:
• active swing and reclaim configuration
• quality-filter mode
• Fresh, Armed, Swept, and Reclaimed level counts
• last sweep side
• last sweep type
• sweep depth
• last reclaim signal
• reclaim delay
• close location
• candle-body strength
• setup grade
• setup-quality score
• quality-component information
• selected candidate mode
• signal direction
• cooldown state
• trend-bias state
• market state
• active level
• latest block reason
• trade state
• Entry
• Stop
• Target
• risk distance
• selected RR
• total visual models
• wins and losses
• internal net R
• last model result
• current and best internal streaks
The dashboard is not TradingView Strategy Tester.
Its trade counters are based on the indicator’s own educational bar-based model.
They do not include spread, commission, slippage, latency, or real broker execution.
━━━━━━━━━━━━━━━━━━━━━━
🚨 ALERT SYSTEM
━━━━━━━━━━━━━━━━━━━━━━
Sweep Reclaim Entry Engine includes static TradingView alert conditions for:
• Swing High Swept
• Swing Low Swept
• Any Swing Sweep
• BUY Reclaim Confirmed
• SELL Reclaim Confirmed
• Any Reclaim Signal
• A+ Sweep Reclaim
• A Sweep Reclaim
• B Sweep Reclaim
• Sweep Reclaim Trade Opened
• Sweep Reclaim TP Hit
• Sweep Reclaim SL Hit
The script also includes optional dynamic alert() messages.
Dynamic messages can include:
• direction
• symbol
• timeframe
• grade
• quality score
• reclaimed level
• signal close
• Entry
• Stop Loss
• TP
• RR
• stop mode
• final model result
Dynamic Signal Alerts: A+ Only can restrict dynamic final-signal alerts to A+ setups.
Alert filtering affects alert delivery only.
It does not change chart calculations.
Alerts are monitoring tools.
They do not execute trades or place broker orders.
━━━━━━━━━━━━━━━━━━━━━━
🔔 HOW TO USE ALERTS
━━━━━━━━━━━━━━━━━━━━━━
A practical alert workflow:
1. Add Sweep Reclaim Entry Engine [trade_w_samet] to the chart.
2. Select the desired swing, sweep, reclaim, quality, bias, and trade-model settings.
3. Open TradingView’s Create Alert window.
4. Select the indicator as the alert condition.
5. Choose the required static condition.
6. Use BUY Reclaim Confirmed or SELL Reclaim Confirmed for direction-specific signals.
7. Use Any Reclaim Signal for either direction.
8. Use A+, A, or B conditions when grade-specific monitoring is needed.
9. Enable Dynamic alert() Messages when detailed runtime messages are preferred.
10. Select Any alert() function call for dynamic messages.
11. Choose an alert frequency suitable for confirmed-candle monitoring.
12. Test the alert before depending on it.
13. Confirm every event with personal analysis and risk management.
Alert delivery can depend on:
• TradingView servers
• the user’s alert settings
• symbol data availability
• chart timeframe
• realtime feed status
• webhook destination availability
The indicator cannot guarantee alert delivery or external execution.
━━━━━━━━━━━━━━━━━━━━━━
🧪 HOW TO USE THE INDICATOR
━━━━━━━━━━━━━━━━━━━━━━
A practical workflow:
1. Add Sweep Reclaim Entry Engine [trade_w_samet] to a standard candlestick chart.
2. Begin with the default Structural swing mode.
3. Keep Reclaim Strength Mode on Strict while learning the engine.
4. Keep Quality Filter Mode on Strict when a selective default is preferred.
5. Confirm that the selected higher timeframe is above the chart timeframe.
6. Observe the stored swing-high and swing-low levels.
7. Watch for a level to move from Fresh to Armed.
8. Review whether the penetration appears controlled rather than excessively deep.
9. Wait for the reclaim candle to close.
10. Review the BUY or SELL label, grade, and quality score.
11. Check the bottom-right dashboard for bias, market state, block reason, and active trade.
12. Treat Entry, SL, and TP as visual references only.
13. Compare the setup with personal structure, liquidity, session, volatility, and risk rules.
14. Use alerts for monitoring rather than blind execution.
15. Test the exact symbol, timeframe, session, and settings personally used.
16. Review historical TP models and concise CLOSED SL HIT labels to understand the visual lifecycle.
The indicator is best used as a structured sweep-reclaim review tool.
It should not be used as an automatic decision-maker.
━━━━━━━━━━━━━━━━━━━━━━
⚙️ SETTINGS REFERENCE
━━━━━━━━━━━━━━━━━━━━━━
⚙️ Core Swing Engine
Swing Mode
Selects Reactive, Balanced, Structural, or Custom.
Custom Left Bars
Controls left-side pivot sensitivity in Custom mode.
Custom Right Bars
Controls right-side pivot confirmation in Custom mode.
ATR Length
Controls ATR normalization throughout the engine.
━━━━━━━━━━━━━━━━━━━━━━
📍 Level Management
Maximum Active Levels Per Side
Limits stored swing highs and lows separately.
Maximum Level Age
Removes old inactive levels.
Level Merge Tolerance — ATR
Prevents near-duplicate swing levels.
Armed Distance — ATR
Controls how close price must move before a Fresh level becomes Armed.
Breakout Invalidation — ATR
Controls the confirmed-close distance that invalidates an unswept level.
━━━━━━━━━━━━━━━━━━━━━━
🌊 Sweep Detection
Sweep Penetration Mode
Selects Wick Only, Wick or Body, or Body Required.
Minimum Sweep Depth — ATR
Rejects insignificant penetrations.
Maximum Sweep Depth — ATR
Rejects excessively deep penetrations.
First Penetration Only
Allows only the first interaction attempt.
Multi-Level Sweep Handling
Selects Nearest Valid Level or All Valid Levels.
Block Dual-Side Sweep Bars
Prevents one candle from registering both a high-side and low-side sweep.
Sweep State Timeout
Controls how long a Swept level can wait for reclaim.
━━━━━━━━━━━━━━━━━━━━━━
✅ Reclaim Confirmation
Reclaim Window
Selects Same Candle, Fast, Flexible, or Custom.
Custom Reclaim Bars
Controls the reclaim window in Custom mode.
Reclaim Strength Mode
Selects Loose, Balanced, Strict, or Custom.
Custom Close Buffer — ATR
Controls reclaim distance beyond the level.
Custom Close Location
Controls directional close quality.
Custom Body Strength — ATR
Controls minimum reclaim-candle body size.
Custom Wick Rejection Ratio
Controls same-candle rejection-wick quality.
Require Directional Candle Body
Requires bullish or bearish candle direction.
Require Same-Candle Wick Rejection
Requires the active wick threshold for immediate reclaims.
Block Dual-Side Reclaim Bars
Prevents both directions from confirming on one candle.
Reclaimed Level Hold Bars
Controls how long a reclaimed level remains highlighted.
━━━━━━━━━━━━━━━━━━━━━━
💎 Quality Engine
Quality Filter Mode
Selects Loose, Balanced, Strict, or Custom.
Custom Minimum Quality
Controls the manual minimum from 50 to 100.
Include Relative Volume
Adds the relative-volume component.
Relative Volume Length
Controls the volume baseline.
Volatility Regime Length
Controls the ATR-regime baseline.
Show Grade on Signal Labels
Displays A+, A, or B.
Show Score on Signal Labels
Displays the 0–100 quality score.
━━━━━━━━━━━━━━━━━━━━━━
🎯 Signal Execution
Signal Direction
Selects Both, Long Only, or Short Only.
Candidate Selection
Selects Highest Quality or Nearest Level.
Cooldown Mode
Selects Off, Any Signal, or Same Direction.
Signal Cooldown Bars
Controls the time-based delay.
Use Same-Direction Cluster Filter
Blocks nearby repeated signals.
Minimum Signal Distance — ATR
Controls the required distance from the previous same-direction signal.
Block Duplicate Signal Bar
Prevents repeated final signals on one candle.
Opposite-Signal Conflict
Selects Block Both, Higher Quality, BUY Priority, or SELL Priority.
Consume Filtered Reclaims
Retires reclaim candidates rejected by final execution filters.
━━━━━━━━━━━━━━━━━━━━━━
🧭 Bias & Market Filters
Trend Bias Mode
Selects Off, Chart EMA, Higher Timeframe EMA, or Combined EMA.
Chart EMA Length
Controls current-timeframe trend bias.
Higher Timeframe
Selects the HTF context.
Higher-Timeframe EMA Length
Controls the confirmed HTF EMA.
Require EMA Slope Agreement
Adds directional EMA slope.
Market Condition Filter
Selects Off, Volatility, Efficiency, or Combined.
Efficiency Length
Controls directional-efficiency calculation.
Minimum Efficiency
Controls the required efficiency ratio.
Minimum ATR Regime Ratio
Sets the lower volatility boundary.
Maximum ATR Regime Ratio
Sets the upper volatility boundary.
The default HTF layer uses previous completed higher-timeframe values.
Pine Script®
━━━━━━━━━━━━━━━━━━━━━━
📈 Trade Model
Enable Trade Model
Enables Entry, SL, TP, and lifecycle visualization.
Stop-Loss Mode
Selects Entry ATR Multiplier or Sweep Extreme + ATR Buffer.
Sweep-Extreme Buffer — ATR
Controls protective distance beyond the sweep extreme.
Entry ATR Stop Multiplier
Controls ATR stop distance from Entry.
Risk / Reward Target
Controls target distance from 0.25R to 15R.
TP / SL Same-Bar Priority
Selects Stop First or Target First.
Block Signals During Active Trade
Maintains the one-active-model structure.
Allow New Signal on Exit Bar
Controls same-bar reopening.
Show TP / SL Boxes
Shows or hides risk/reward areas.
Show Entry / TP / SL Lines
Shows or hides price-reference lines.
Show Historical Trades
Keeps completed TP models.
Maximum Historical Trades
Limits stored completed visuals.
Show TP / SL Result Labels
Controls TP HIT and CLOSED SL HIT labels.
━━━━━━━━━━━━━━━━━━━━━━
🔔 Alert System
Enable Dynamic alert() Messages
Activates detailed runtime alerts.
Alert Final BUY / SELL Signals
Enables final-signal messages.
Dynamic Signal Alerts: A+ Only
Restricts dynamic signal messages to A+ setups.
Alert Trade Model Open
Sends Entry, SL, TP, RR, grade, and quality.
Alert TP / SL Result
Sends model-result messages.
━━━━━━━━━━━━━━━━━━━━━━
🎨 Visual Settings
Visual Profile
Selects Full, Clean, Minimal, or Mobile.
Level Display
Selects All Active, Armed + Events, Events Only, or Hidden.
Level Line Style
Selects Adaptive, Solid, Dashed, or Dotted.
Signal Label Style
Selects Full, Compact, or Icon.
Dashboard Mode
Selects Full, Compact, Trade Only, or Off.
Active Trade Zone Transparency
Controls TP / SL fill transparency.
Active Trade Border Transparency
Controls TP / SL borders.
Active Trade Line Width
Controls trade-line thickness.
Fade Completed Trades
Fades completed TP models.
Completed Trade Transparency
Controls historical fading.
Theme
Selects Crimson, Ice Blue, or Monochrome.
Show Swing-High Levels
Controls high-side levels.
Show Swing-Low Levels
Controls low-side levels.
Show Important Sweep Labels
Controls sweep-event labels.
Sweep Label Filter
Selects Important Only or All Valid.
Minimum Sweep Importance
Controls visible sweep quality.
Maximum Important Sweep Labels
Limits sweep-label history.
Show BUY / SELL Reclaim Signals
Controls final reclaim labels.
Maximum Reclaim Labels
Limits final signal-label history.
Fade Older Levels
Reduces old-level opacity.
Level Width
Controls swing-level line thickness.
Show Confirmed Pivot Markers
Controls pivot triangles.
Show Dashboard
Enables the dashboard.
━━━━━━━━━━━━━━━━━━━━━━
🛠️ Customization
Sweep Label Size
Controls SWEEP HIGH / SWEEP LOW labels.
Triangle Marker Size
Controls confirmed pivot triangles.
BUY / SELL Signal Label Size
Controls reclaim labels.
TP / SL Result Label Size
Controls result labels.
Dashboard Header Size
Controls dashboard titles.
Dashboard Text Size
Controls dashboard body text.
Color Mode
Selects Theme or Custom.
Custom color inputs control:
• swing-level states
• BUY / SELL backgrounds and text
• sweep-label backgrounds and text
• Entry, TP, and SL lines
• TP / SL fills and borders
• TP / SL result labels
• dashboard background, header, border, main text, and muted text
Input values and plotted marker values are hidden from the status line.
━━━━━━━━━━━━━━━━━━━━━━
🧠 WHAT MAKES THIS SCRIPT ORIGINAL
━━━━━━━━━━━━━━━━━━━━━━
Sweep Reclaim Entry Engine uses familiar analytical concepts such as:
• pivot highs and lows
• liquidity sweeps
• price reclaims
• ATR
• relative volume
• EMA bias
• market efficiency
• risk/reward projection
These concepts are not unique by themselves.
The originality of this script lies in how they are organized into one transparent sweep-reclaim workflow:
Confirmed pivot
→ separate high-side and low-side memories
→ ATR-normalized duplicate control
→ Fresh state
→ Armed state
→ penetration classification
→ minimum and maximum depth validation
→ Swept state
→ configurable reclaim window
→ close, location, body, and wick validation
→ eight-component quality score
→ A+ / A / B grade
→ multi-candidate comparison
→ cooldown, cluster, and conflict handling
→ chart and confirmed HTF EMA alignment
→ optional market-regime filtering
→ one-active-trade model
→ TP-specific historical preservation
→ SL-specific visual cleanup
→ static and dynamic alert delivery
→ bottom-right diagnostic dashboard
Distinctive implementation features include:
• separate lifecycle arrays for swing highs and swing lows
• a defined Armed state before sweep detection
• controlled minimum and maximum penetration depth
• wick/body sweep classification
• first-attempt retirement logic
• sweep-importance scoring separate from setup-quality scoring
• same-candle and multi-bar reclaim support
• transparent quality-component weighting
• Highest Quality and Nearest Level candidate selection
• multiple opposite-conflict resolution modes
• confirmed higher-timeframe EMA data
• ATR-normalized signal clustering
• full chart cleanup after SL
• independent sizing for every label and marker class
• status-line value suppression without hiding chart markers
• configurable targets up to 15R
The script is not a basic collection of unrelated filters.
Each module supports the same swing-sweep-reclaim process.
━━━━━━━━━━━━━━━━━━━━━━
⚠️ IMPORTANT PRACTICAL NOTES
━━━━━━━━━━━━━━━━━━━━━━
The indicator’s behavior depends heavily on settings and market conditions.
Signal frequency can change based on:
• Swing Mode
• pivot lengths
• maximum level age
• merge tolerance
• armed distance
• sweep penetration mode
• minimum and maximum sweep depth
• first-penetration logic
• multi-level selection
• reclaim window
• reclaim strength
• directional candle requirement
• same-candle wick requirement
• quality filter mode
• volume context
• direction restriction
• cooldown
• signal-cluster distance
• opposite-conflict mode
• chart EMA length
• HTF selection
• HTF EMA length
• market-condition filter
• volatility regime
• efficiency threshold
• active-trade restrictions
• symbol
• timeframe
• session
• data provider
• available chart history
A setting that appears selective on one market may behave differently on another.
Volume behavior can differ across forex, futures, equities, indices, and cryptocurrencies.
The higher-timeframe filter should use a timeframe meaningfully above the chart timeframe.
Structural mode confirms fewer and broader pivots than Reactive mode.
Strict reclaim and quality modes reduce signal frequency but do not guarantee better results.
Reactive or Balanced modes can increase frequency but can also increase chart noise.
Users should test the exact market, timeframe, session, and configuration they personally study.
━━━━━━━━━━━━━━━━━━━━━━
⚠️ LIMITATIONS AND SHORTCOMINGS
━━━━━━━━━━━━━━━━━━━━━━
This script has important limitations:
It does not guarantee profitable trades.
It does not predict future price movement.
It does not replace risk management.
It does not execute trades.
It does not place broker orders.
It does not include spread.
It does not include commissions.
It does not include slippage.
It does not include execution delay.
It does not include partial fills.
It uses bar-based OHLC data.
Same-candle TP / SL order cannot be known from standard OHLC bars.
Stop First and Target First are modeling assumptions.
Confirmed pivots require right-side bars before becoming available.
The quality score is not a win probability.
A+ is not a guaranteed outcome.
The dashboard is not TradingView Strategy Tester.
Internal model counters are not audited brokerage performance.
Historical boxes and labels do not guarantee future behavior.
Relative-volume quality depends on available volume data.
Higher-timeframe bias depends on the selected timeframe.
Market-efficiency filtering cannot identify every ranging condition.
ATR normalization does not make one configuration universal.
One-active-trade logic is a visual-management rule.
Data-feed differences can change historical pivots and signals.
Alert delivery depends on TradingView and user configuration.
Changing settings changes historical calculations.
Changing symbol, session, exchange, or timeframe changes the engine context.
For these reasons, Sweep Reclaim Entry Engine should be used as an educational decision-support and chart-analysis tool, not as a standalone automated strategy.
━━━━━━━━━━━━━━━━━━━━━━
👤 WHO THIS SCRIPT MAY BE USEFUL FOR
━━━━━━━━━━━━━━━━━━━━━━
This script may be useful for traders who:
• study liquidity sweeps
• monitor confirmed swing highs and lows
• distinguish a sweep from a reclaim
• prefer filtered signals instead of every wick event
• want a visible level lifecycle
• want ATR-normalized penetration thresholds
• want same-candle and multi-bar reclaim support
• want a transparent 0–100 quality framework
• want A+, A, and B setup grades
• want chart and confirmed HTF EMA context
• want optional market-regime filtering
• want Entry, SL, and TP visualization
• want one active model at a time
• want clean SL result handling
• want adjustable mobile and desktop presentation
• want alert-based monitoring
• want a structured educational analysis process
It may be less suitable for users who:
• want guaranteed buy/sell signals
• want a fully automated trading bot
• want every wick beyond every high or low
• expect the quality score to represent probability
• expect one configuration to work on every market
• require exact tick-level execution simulation
• expect displayed levels to match broker fills
• want an indicator to replace independent judgment
• expect alerts to execute orders automatically
━━━━━━━━━━━━━━━━━━━━━━
🧭 BEST PRACTICE SUGGESTIONS
━━━━━━━━━━━━━━━━━━━━━━
For a cleaner and more selective review:
• begin with Structural swing mode
• keep First Penetration Only enabled
• use Nearest Valid Level or Highest Quality according to preference
• keep Strict reclaim strength
• keep Strict quality filtering
• use Combined EMA bias
• select a valid higher timeframe
• use Same Direction cooldown
• keep the same-direction cluster filter enabled
• use Stop First for conservative same-candle modeling
• use Important Only sweep labels
• use Clean visual profile
• keep the dashboard in Compact or Full mode while learning
• use alerts for monitoring, not blind execution
For more active signal frequency:
• use Balanced or Reactive swing mode
• use Balanced reclaim strength
• use Balanced quality filtering
• reduce cooldown
• reduce minimum signal distance
• use Chart EMA or disable trend bias
• keep the hard market filter Off
• use All Valid sweep labels only when additional chart detail is useful
Always:
• review the structural level before the sweep
• confirm the reclaim candle has closed
• verify the setup fits personal market context
• compare the stop with nearby structure and volatility
• treat TP as a planning reference
• test the exact symbol and timeframe
• apply independent risk management and position sizing
━━━━━━━━━━━━━━━━━━━━━━
🔓 PUBLICATION NOTE
━━━━━━━━━━━━━━━━━━━━━━
Sweep Reclaim Entry Engine [trade_w_samet] is published as an educational and visual market-analysis tool.
The purpose of this description is to explain:
• what the script does
• how swing points are confirmed
• how levels are stored and managed
• how Fresh, Armed, Swept, Reclaimed, and Consumed states work
• how penetration type is classified
• how minimum and maximum sweep depth work
• how reclaim timing works
• how reclaim strength is evaluated
• how the 0–100 quality score is calculated
• how A+, A, and B grades are assigned
• how candidates are selected
• how cooldown and clustering operate
• how opposite-direction conflicts are handled
• how chart and confirmed HTF bias work
• how market-condition filters operate
• how Entry and Stop Loss are calculated
• how the RR target is projected
• how one-active-trade logic works
• how same-candle ambiguity is handled
• how active and completed visuals behave
• how SL-specific cleanup works
• what the dashboard displays
• what static and dynamic alerts do
• what the timing limitations are
• what the script’s limitations are
• why the implementation is original
The script is designed to support structured analysis.
It does not promise profitable results.
It does not remove market risk.
It does not execute trades.
It should not be used as a blind buy/sell system.
MAIN CHART SCREENSHOT PLAN
Use one clean standard candlestick chart.
Show the indicator with its default settings.
The screenshot should contain:
• one clearly visible confirmed swing level
• one visible SWEEP HIGH or SWEEP LOW event
• one BUY RECLAIM or SELL RECLAIM label
• one active Entry / TP / SL model
• the thick white Entry line
• the blue/cyan TP area
• the red SL area
• the bottom-right dashboard
• the symbol and timeframe
• the indicator title in the status line
Do not include:
• other indicators
• manual drawings
• unrelated labels
• social links
• promotional text
• performance claims
• account-profit screenshots
• non-standard candles
• excessive zoom
• hidden price candles
The screenshot should demonstrate the script’s normal default behavior and make the swing, sweep, reclaim, risk model, and dashboard easy to understand.
━━━━━━━━━━━━━━━━━━━━━━
🛡️ DISCLAIMER
━━━━━━━━━━━━━━━━━━━━━━
Sweep Reclaim Entry Engine [trade_w_samet] is provided for educational and informational purposes only.
It does not constitute financial, investment, trading, legal, or tax advice.
No indicator can guarantee future results.
Markets are uncertain, liquidity conditions change, volatility changes, and historical chart behavior does not ensure future performance.
Every user is responsible for their own:
• analysis
• validation
• risk management
• position sizing
• alert configuration
• trading decisions
• broker execution
• legal and tax obligations
The confirmed swing levels, lifecycle states, sweep labels, reclaim labels, quality scores, setup grades, bias states, market-condition states, Entry references, stop-loss levels, take-profit targets, TP / SL boxes, result labels, dashboard values, internal model counters, and alerts are visual analysis tools only.
The displayed Entry is not a guaranteed fill.
The displayed Stop Loss is not a broker order.
The displayed target is not a guaranteed objective.
The 0–100 quality score is not a win probability.
The A+, A, and B grades are not promises of performance.
The internal trade model does not include spread, commissions, slippage, latency, order-book conditions, or partial fills.
Use this script as a structured sweep-reclaim review and decision-support framework, not as a promise of profitability or a substitute for independent judgment.
Sweep Reclaim Entry Engine [trade_w_samet] is a structured liquidity-sweep and reclaim analysis indicator designed to help traders study confirmed swing levels, controlled liquidity penetrations, reclaim strength, setup quality, directional alignment, and visual risk/reward models directly on the price chart.
This script focuses on one main concept:
Confirmed swing sweep and reclaim-based entry visualization.
It is not designed to mark every wick beyond every nearby high or low.
It is not designed to treat every penetration as a valid liquidity sweep.
It is not designed to create constant buy/sell labels.
Instead, the goal of Sweep Reclaim Entry Engine is to confirm structural swing levels, monitor their lifecycle, detect controlled penetrations beyond those levels, validate directional reclaims, apply configurable quality and market filters, and visualize accepted setups using one Entry level, one protective Stop Loss level, and one configurable risk/reward target.
The indicator includes:
• Confirmed swing-high and swing-low detection
• Reactive, Balanced, Structural, and Custom swing modes
• ATR-normalized level merging and proximity logic
• Fresh, Armed, Swept, Reclaimed, and Consumed level states
• Wick Only, Wick or Body, and Body Required sweep modes
• Minimum and maximum ATR-normalized sweep-depth filters
• First-penetration-only logic
• Multi-level sweep selection
• Dual-side sweep protection
• Same Candle, Fast, Flexible, and Custom reclaim windows
• Loose, Balanced, Strict, and Custom reclaim-strength modes
• Reclaim close-buffer, close-location, body-strength, and wick-rejection checks
• A transparent 0–100 setup-quality score
• A+, A, and B setup grades
• Loose, Balanced, Strict, and Custom quality-filter modes
• Relative-volume quality context
• Highest Quality and Nearest Level candidate-selection modes
• Direction, cooldown, cluster, duplicate-bar, and opposite-conflict controls
• Chart EMA, confirmed higher-timeframe EMA, and Combined EMA bias
• Optional volatility and market-efficiency filtering
• Entry ATR and Sweep Extreme stop-loss models
• A configurable 0.25R to 15R target
• One-active-trade-at-a-time logic
• Stop First and Target First same-bar assumptions
• Active TP / SL boxes and Entry / TP / SL lines
• SL-specific visual cleanup
• Important-only sweep-label filtering
• Full, Clean, Minimal, and Mobile chart profiles
• Full, Compact, Trade Only, and Off dashboard modes
• Adjustable marker, label, result, and dashboard sizes
• Crimson, Ice Blue, Monochrome, and fully custom colors
• Static TradingView alert conditions
• Optional dynamic alert() messages
• Compact bottom-right dashboard
• Confirmed-close permanent signals
• Confirmed higher-timeframe data handling
The purpose of this script is to help users visually study where a confirmed swing-level sweep is followed by a qualified directional reclaim.
It should be treated as a chart-analysis and educational decision-support tool.
It is not financial advice.
It is not an automated trading system.
It does not guarantee profitable trades.
It does not execute broker orders.
It does not replace personal analysis, risk management, or trade validation.
━━━━━━━━━━━━━━━━━━━━━━
📌 OVERVIEW
━━━━━━━━━━━━━━━━━━━━━━
At a high level, Sweep Reclaim Entry Engine does the following:
• Detects confirmed bullish and bearish swing pivots.
• Stores accepted swing highs and swing lows in separate internal level memories.
• Prevents near-duplicate levels using ATR-based merge tolerance.
• Tracks whether each level is Fresh, Armed, Swept, Reclaimed, or Consumed.
• Arms a level when price moves within the selected ATR distance.
• Detects a new penetration beyond an eligible swing level.
• Measures penetration depth relative to ATR.
• Classifies the sweep as wick-based or body-based.
• Applies minimum depth, maximum depth, first-interaction, multi-level, and dual-side rules.
• Moves the accepted level into the Swept state.
• Waits for price to reclaim the level within the selected reclaim window.
• Checks reclaim close buffer, close location, candle body strength, candle direction, and wick rejection.
• Calculates a 0–100 setup-quality score.
• Assigns an internal A+, A, or B grade.
• Applies the selected minimum-quality requirement.
• Compares multiple eligible reclaim candidates.
• Applies direction, trend-bias, market, cooldown, clustering, duplicate, and conflict rules.
• Confirms final BUY and SELL reclaim signals only after candle close.
• Projects Entry, Stop Loss, and one configurable take-profit target.
• Maintains one active visual trade model at a time.
• Tracks TP and SL events after the entry candle.
• Applies the selected same-candle TP / SL assumption.
• Preserves successful models when historical display is enabled.
• Deletes failed-model boxes, lines, and original signal labels after SL.
• Leaves only a small CLOSED SL HIT label for failed models.
• Displays engine, bias, quality, signal, and trade information in the bottom-right dashboard.
• Provides sweep, signal, grade, trade-open, TP, and SL alerts.
The script is intentionally built as a structured sequence.
It does not include machine-learning prediction.
It does not claim that every sweep will reverse.
It does not treat the quality score as a probability.
It provides a transparent way to study confirmed swing sweeps, directional reclaims, and their visual trade lifecycle.
━━━━━━━━━━━━━━━━━━━━━━
🧠 CORE IDEA
━━━━━━━━━━━━━━━━━━━━━━
The core idea behind Sweep Reclaim Entry Engine is based on the difference between a liquidity penetration and a confirmed reclaim.
A sweep occurs when price trades beyond a previously confirmed swing high or swing low.
A reclaim occurs when price returns through that level and closes with enough directional strength to satisfy the active rules.
The engine does not treat the sweep itself as an entry.
Instead, it separates the process into distinct stages:
Confirmed swing
→ managed level
→ level approach
→ valid penetration
→ sweep classification
→ reclaim window
→ reclaim confirmation
→ quality scoring
→ final filtering
→ confirmed entry model
For a bullish setup, the engine studies a penetration below a confirmed swing low and a later close back above that level.
For a bearish setup, the engine studies a penetration above a confirmed swing high and a later close back below that level.
The reclaim can occur on the same candle or within a configurable number of bars.
The final setup can then be evaluated using:
• sweep depth
• reclaim close quality
• wick rejection
• candle-body strength
• level freshness
• relative volume
• displacement
• market condition
• level cleanliness
• chart EMA alignment
• confirmed higher-timeframe EMA alignment
• cooldown and cluster rules
• opposite-signal conflict handling
The goal is not to maximize signal quantity.
The goal is to create an understandable process that explains how a stored swing level becomes a sweep candidate, how that sweep becomes a reclaim candidate, and how the final entry model is accepted or rejected.
━━━━━━━━━━━━━━━━━━━━━━
🧩 WHY THIS SCRIPT IS NOT A SIMPLE BUY/SELL INDICATOR
━━━━━━━━━━━━━━━━━━━━━━
Sweep Reclaim Entry Engine is not intended to be used as a blind buy/sell system.
The script is structured as a visual review workflow:
A pivot becomes confirmed
→ the swing level is stored
→ duplicate levels are filtered
→ price approaches the level
→ the level becomes Armed
→ price creates a new penetration
→ penetration type and depth are validated
→ the level becomes Swept
→ the reclaim window opens
→ reclaim strength is evaluated
→ a quality score is calculated
→ the setup receives a grade
→ eligible candidates are compared
→ execution filters are checked
→ the signal must remain valid at candle close
→ Entry, SL, and TP are projected
→ the active model is monitored
→ the model closes at TP or SL
→ the visual result is archived or cleaned
Each stage serves a specific purpose.
The confirmed-pivot engine defines the structural reference.
The level-memory engine prevents the script from treating all historical highs and lows as permanently active.
The Armed state separates a distant level from a level that price is actively approaching.
The sweep engine distinguishes a controlled penetration from a deep breakout.
The reclaim engine defines what qualifies as a directional return through the level.
The quality engine combines several independent setup characteristics.
The execution engine prevents clustered, duplicate, conflicting, or bias-opposed entries.
The trade model standardizes the visual Entry, risk, and reward references.
The dashboard explains the engine state and active model.
This makes the script a structured sweep-reclaim analysis tool, not a guaranteed signal generator.
━━━━━━━━━━━━━━━━━━━━━━
⚙️ HOW THE SCRIPT WORKS
━━━━━━━━━━━━━━━━━━━━━━
The script operates through several connected systems.
First, it confirms swing highs and swing lows using the selected pivot sensitivity.
Reactive mode uses shorter pivot lengths.
Balanced mode uses medium pivot lengths.
Structural mode uses wider pivot lengths and is the default.
Custom mode allows manual left-side and right-side pivot lengths.
float confirmedSwingHigh = ta.pivothigh(high, swingLeft, swingRight)
float confirmedSwingLow = ta.pivotlow(low, swingLeft, swingRight)
int confirmedHighBar = bar_index - swingRight
int confirmedLowBar = bar_index - swingRight
After confirmation, accepted swing levels are stored in separate high-side and low-side arrays.
Each level stores contextual information including:
• level price
• original pivot bar
• lifecycle state
• interaction count
• sweep bar
• sweep depth
• sweep extreme
• sweep type
• reclaim bar
• visual line reference
When price approaches a stored level, the level can move from Fresh to Armed.
When price creates a new penetration beyond the level, the engine checks:
• penetration mode
• minimum ATR depth
• maximum ATR depth
• first-attempt permission
• multi-level selection
• dual-side sweep protection
f_isValidHighSweep(float levelPrice, int attempts) =>
float depthATR = (high - levelPrice) / safeATR
int kind = f_highSweepKind(levelPrice)
bool depthValid = depthATR >= minSweepDepthATR and depthATR <= effectiveMaxSweepDepthATR
bool attemptValid = not firstInteractionOnly or attempts == 0
bool valid = f_isNewHighPenetration(levelPrice) and depthValid and attemptValid and f_modeAcceptsKind(kind)
valid
f_isValidLowSweep(float levelPrice, int attempts) =>
float depthATR = (levelPrice - low) / safeATR
int kind = f_lowSweepKind(levelPrice)
bool depthValid = depthATR >= minSweepDepthATR and depthATR <= effectiveMaxSweepDepthATR
bool attemptValid = not firstInteractionOnly or attempts == 0
bool valid = f_isNewLowPenetration(levelPrice) and depthValid and attemptValid and f_modeAcceptsKind(kind)
valid
A valid sweep moves the level into the Swept state.
The reclaim engine then waits for price to close back through the level within the selected window.
The reclaim must pass every enabled strength requirement.
The accepted candidate receives a quality score and grade.
If more than one candidate qualifies, the active Candidate Selection mode chooses the final candidate.
The final signal must also pass direction, bias, market, cooldown, cluster, duplicate-bar, and conflict rules.
Only after the bar closes with all conditions still valid can the permanent BUY or SELL reclaim signal and visual trade model appear.
━━━━━━━━━━━━━━━━━━━━━━
🟢 BULLISH SWEEP RECLAIM LOGIC
━━━━━━━━━━━━━━━━━━━━━━
A bullish sweep-reclaim setup begins with a confirmed swing low.
The swing low must be stored and remain eligible.
Price can then move close enough to place the level in the Armed state.
A bullish sweep is created when price penetrates below the swing-low level and the penetration satisfies the active sweep rules.
The engine may require:
• a wick-only penetration
• a wick or body penetration
• body participation beyond the level
• a minimum ATR-normalized depth
• a maximum ATR-normalized depth
• the first valid penetration attempt
• selection as the nearest valid level
• no simultaneous high-side sweep
After the low-side sweep, the bullish reclaim must occur inside the selected reclaim window.
The reclaim can require:
• a close above the swept level
• an ATR-based close buffer above the level
• a high close location inside the candle
• minimum body strength relative to ATR
• a bullish candle body when enabled
• minimum lower-wick rejection for same-candle reclaims
• a final score above the active quality threshold
• permission from the selected signal direction
• bullish chart and/or HTF EMA alignment
• permission from the active market-condition filter
• cooldown and cluster permission
• no stronger bearish conflict
f_isValidLowReclaim(int index) =>
bool valid = false
if index >= 0 and index < array.size(lowPrices) and barstate.isconfirmed
int state = array.get(lowStates, index)
int sweepBar = array.get(lowSweepBars, index)
if state == STATE_SWEPT and sweepBar >= 0
float levelPrice = array.get(lowPrices, index)
int barsAfterSweep = bar_index - sweepBar
bool windowPass = barsAfterSweep >= 0 and barsAfterSweep <= reclaimWindowBars
bool closePass = close >= levelPrice + safeATR * reclaimCloseBufferATR
bool locationPass = f_bullCloseLocation() >= reclaimCloseLocationThreshold
bool bodyPass = f_bodyATR() >= reclaimBodyStrengthATR
bool directionPass = not requireDirectionalCandle or close > open
bool sameBar = barsAfterSweep == 0
bool wickPass = not requireSameCandleWick or not sameBar or f_lowerWickRatio() >= reclaimWickThreshold
valid := windowPass and closePass and locationPass and bodyPass and directionPass and wickPass
valid
When every enabled rule passes at candle close, the script displays a BUY RECLAIM label.
If the visual trade model is enabled and no trade is active, the setup creates:
• Entry at the confirmed signal-bar close
• Stop Loss below entry or below the sweep extreme
• TP above entry
• blue/cyan reward box
• red risk box
• thick white Entry line
• blue TP line
• red SL line
This does not mean price must continue upward.
It means the configured bullish sweep-reclaim conditions were confirmed at the close of that candle.
━━━━━━━━━━━━━━━━━━━━━━
🔴 BEARISH SWEEP RECLAIM LOGIC
━━━━━━━━━━━━━━━━━━━━━━
A bearish sweep-reclaim setup begins with a confirmed swing high.
The swing high must be stored and remain eligible.
Price can then move close enough to place the level in the Armed state.
A bearish sweep is created when price penetrates above the swing-high level and the penetration satisfies the active sweep rules.
The engine may require:
• a wick-only penetration
• a wick or body penetration
• body participation beyond the level
• a minimum ATR-normalized depth
• a maximum ATR-normalized depth
• the first valid penetration attempt
• selection as the nearest valid level
• no simultaneous low-side sweep
After the high-side sweep, the bearish reclaim must occur inside the selected reclaim window.
The reclaim can require:
• a close below the swept level
• an ATR-based close buffer below the level
• a low close location inside the candle
• minimum body strength relative to ATR
• a bearish candle body when enabled
• minimum upper-wick rejection for same-candle reclaims
• a final score above the active quality threshold
• permission from the selected signal direction
• bearish chart and/or HTF EMA alignment
• permission from the active market-condition filter
• cooldown and cluster permission
• no stronger bullish conflict
When every enabled rule passes at candle close, the script displays a SELL RECLAIM label.
If the visual trade model is enabled and no trade is active, the setup creates:
• Entry at the confirmed signal-bar close
• Stop Loss above entry or above the sweep extreme
• TP below entry
• blue/cyan reward box
• red risk box
• thick white Entry line
• blue TP line
• red SL line
This does not mean price must continue downward.
It means the configured bearish sweep-reclaim conditions were confirmed at the close of that candle.
━━━━━━━━━━━━━━━━━━━━━━
💎 SWEEP RECLAIM QUALITY FILTER SYSTEM
━━━━━━━━━━━━━━━━━━━━━━
The script includes a multi-component quality system to reduce low-context reclaim signals.
This is important because not every sweep has the same structural meaning and not every reclaim candle has the same directional strength.
The quality engine evaluates eight components:
Sweep Depth — maximum 15 points
Measures where the penetration sits inside the active minimum-to-maximum sweep range.
The score favors a controlled sweep depth rather than automatically rewarding the deepest penetration.
Reclaim Close — maximum 20 points
Measures the directional location of the candle close.
A bullish setup receives more points when the reclaim closes near the top of the candle.
A bearish setup receives more points when the reclaim closes near the bottom.
Wick Rejection — maximum 15 points
Measures the directional rejection wick.
For multi-bar reclaims, the engine can also consider the stored sweep type and current reclaim structure.
Level Freshness — maximum 10 points
Newer levels generally receive more freshness points than levels that have remained active for a long time.
Relative Volume — maximum 10 points
Compares current volume with the selected baseline length.
When useful volume is not available, the engine avoids treating the setup as automatically invalid.
Displacement — maximum 15 points
Combines candle-body strength and the distance reclaimed through the level.
Market Condition — maximum 10 points
Uses candle range and ATR-regime information.
Level Cleanliness — maximum 5 points
Rewards levels with fewer prior interaction attempts.
The total is rounded and limited to 0–100.
float qualityScore = math.min(100.0, math.max(0.0, math.round(
sweepScore + closeScore + wickScore + freshnessScore +
volumeScore + displacementScore + marketScore + cleanlinessScore
)))
The quality score is not a win probability.
It is not a verified accuracy percentage.
It is an internal measurement of how closely the completed setup matches the selected structural rules.
━━━━━━━━━━━━━━━━━━━━━━
📏 SWEEP / ATR FILTER
━━━━━━━━━━━━━━━━━━━━━━
The sweep-depth filter measures the penetration beyond a swing level relative to ATR.
For a high-side sweep:
Sweep Depth = (High − Swing High) / ATR.
For a low-side sweep:
Sweep Depth = (Swing Low − Low) / ATR.
Minimum Sweep Depth rejects penetrations that may be too small to represent a meaningful liquidity event.
Maximum Sweep Depth rejects penetrations that may be too deep to represent a controlled sweep and may instead behave more like a breakout.
The default values are:
Minimum Sweep Depth = 0.05 ATR.
Maximum Sweep Depth = 0.80 ATR.
ATR normalization allows the threshold to adapt to changing volatility.
A 0.20 ATR sweep represents a relative move rather than a fixed number of points.
This helps the engine operate across different price scales.
However, ATR normalization does not make one configuration universally suitable.
A symbol with session gaps, irregular volume, or unusual volatility can still behave differently from another market.
A deeper sweep is not automatically a better setup.
Sweep depth is only one component of the complete reclaim process.
━━━━━━━━━━━━━━━━━━━━━━
🕯️ DISPLACEMENT QUALITY FILTER
━━━━━━━━━━━━━━━━━━━━━━
The displacement component evaluates whether the reclaim candle moves with enough directional force.
The engine considers:
• candle-body size relative to ATR
• distance closed beyond the reclaimed level
• bullish or bearish directional recovery
For bullish setups, stronger displacement generally means:
• a larger bullish body
• a close further above the reclaimed swing low
For bearish setups, stronger displacement generally means:
• a larger bearish body
• a close further below the reclaimed swing high
Reclaim Strength Mode can also impose a minimum body-size requirement before the setup reaches the quality-scoring stage.
Loose mode allows smaller directional bodies.
Balanced mode uses moderate requirements.
Strict mode requires stronger completed-candle behavior.
Custom mode exposes the manual threshold.
Displacement is not used as a prediction.
It is used to measure whether the completed reclaim candle demonstrates the selected degree of directional response.
━━━━━━━━━━━━━━━━━━━━━━
📊 REACTION STRENGTH FILTER
━━━━━━━━━━━━━━━━━━━━━━
The reaction-strength layer evaluates the candle that confirms the reclaim.
The active rules can include:
• close through the swept level
• ATR-based close buffer
• directional close location
• body strength relative to ATR
• bullish or bearish candle direction
• same-candle rejection wick
Reclaim Strength Mode provides:
Loose
Uses lower close-buffer, close-location, body-strength, and wick-rejection requirements.
Balanced
Uses moderate thresholds.
Strict
Uses the strongest built-in thresholds and is the default.
Custom
Uses the manual values selected by the user.
Strict mode applies:
• 0.05 ATR reclaim close buffer
• 0.70 directional close-location threshold
• 0.15 ATR minimum body strength
• 0.28 same-candle wick-rejection ratio
Require Directional Candle Body can additionally require:
• close above open for bullish reclaims
• close below open for bearish reclaims
Require Same-Candle Wick Rejection applies the wick requirement when the sweep and reclaim occur on the same candle.
The reaction-strength system is designed to distinguish a simple touch from a stronger completed directional response.
━━━━━━━━━━━━━━━━━━━━━━
🧼 CONFIRMED RECLAIM FILTER
━━━━━━━━━━━━━━━━━━━━━━
The reclaim layer requires the setup to remain valid at candle close.
Available reclaim windows include:
Same Candle
The penetration and reclaim must complete on the same candle.
Fast
The reclaim can occur on the sweep candle or the next candle.
Flexible
The reclaim can occur within three bars and is the default.
Custom
The user selects the maximum number of bars.
The engine stores the sweep bar and compares the current bar with the allowed reclaim window.
The sweep state timeout is automatically prevented from becoming shorter than the active reclaim window.
A reclaimed setup can also be blocked by:
• insufficient close buffer
• weak close location
• weak candle body
• missing directional body
• missing same-candle wick rejection
• low quality score
• direction restriction
• chart EMA misalignment
• higher-timeframe EMA misalignment
• market-condition failure
• active-trade restriction
• cooldown
• same-direction clustering
• duplicate-bar protection
• opposite-direction conflict
Final permanent BUY and SELL signals require confirmed-bar logic.
This means an unfinished realtime candle can temporarily trade beyond a level, but it does not become a permanent reclaim signal unless the conditions remain valid when the bar closes.
━━━━━━━━━━━━━━━━━━━━━━
🎯 ENTRY MODEL
━━━━━━━━━━━━━━━━━━━━━━
When a final BUY or SELL reclaim signal passes every enabled condition, the script can create a visual entry model.
The Entry reference is the close of the confirmed signal candle.
The engine stores:
• trade direction
• entry bar
• entry price
• stop price
• risk distance
• selected RR
• target price
• setup quality
• setup grade
The trade model opens only when:
• Enable Trade Model is active
• no visual trade is already active
• the final reclaim signal is confirmed
• the calculated risk distance is larger than the symbol’s minimum tick
• same-bar reopening is permitted when the previous model closed on the same candle
if enableTradeModel and not tradeActive and (allowSignalOnExitBar or not tradeClosedThisBar)
if buyReclaimSignal
float sweepExtreme = array.get(lowSweepExtremes, selectedLowReclaimIndex)
float candidateStop = stopLossMode == "Entry ATR Multiplier" ?
close - safeATR * stopATRMultiplier :
sweepExtreme - safeATR * stopBufferATR
float candidateRisk = close - candidateStop
The entry model is a visual analysis reference.
It is not a broker market order.
It does not include spread, slippage, commission, latency, or partial fills.
━━━━━━━━━━━━━━━━━━━━━━
🛑 ATR STOP-LOSS MODEL
━━━━━━━━━━━━━━━━━━━━━━
The script includes two stop-placement models.
Entry ATR Multiplier
For BUY setups:
Stop = Entry − ATR × multiplier.
For SELL setups:
Stop = Entry + ATR × multiplier.
This is the default mode.
The default Entry ATR Stop Multiplier is 2.00 ATR.
The multiplier can be adjusted from 0.10 to 15.00.
Sweep Extreme + ATR Buffer
For BUY setups:
Stop = stored low-side sweep extreme − ATR buffer.
For SELL setups:
Stop = stored high-side sweep extreme + ATR buffer.
The default Sweep-Extreme Buffer is 0.10 ATR.
float candidateStop = stopLossMode == "Entry ATR Multiplier" ?
close - safeATR * stopATRMultiplier :
sweepExtreme - safeATR * stopBufferATR
The selected stop determines the visual risk distance.
That risk distance also determines the take-profit distance.
The displayed stop is a planning reference only.
It does not place or manage a broker stop order.
━━━━━━━━━━━━━━━━━━━━━━
🎯 TAKE-PROFIT RR MODEL
━━━━━━━━━━━━━━━━━━━━━━
The script uses one configurable take-profit target.
The target is calculated from the distance between Entry and Stop Loss.
For BUY models:
TP = Entry + Risk × RR.
For SELL models:
TP = Entry − Risk × RR.
The Risk / Reward Target can be adjusted from:
0.25R to 15.00R.
The default is 2.00R.
activeTradeRisk := candidateRisk
activeTradeRR := tradeRiskReward
activeTradeTarget := close + candidateRisk * tradeRiskReward
The displayed RR controls the geometric distance of the projected target.
It does not represent a performance claim.
It does not guarantee that price will reach the target.
Changing the stop model or stop multiplier changes the target distance because both levels are based on the same initial risk.
━━━━━━━━━━━━━━━━━━━━━━
📦 ACTIVE TP / SL BOX SYSTEM
━━━━━━━━━━━━━━━━━━━━━━
When a confirmed reclaim model opens, the script can draw:
• blue/cyan TP box
• red SL box
• thick white Entry line
• blue TP line
• red SL line
• BUY RECLAIM or SELL RECLAIM label
The active boxes and lines extend to the right as new candles appear.
The Entry line is intentionally pure white and visually thicker than the TP and SL references.
When TP is reached:
• the trade model closes
• active boxes and lines stop at the closing bar
• the TP result label appears
• completed visuals can remain when Show Historical Trades is enabled
• completed visuals can be faded using Completed Trade Transparency
When SL is reached:
• the TP box is deleted
• the SL box is deleted
• the Entry line is deleted
• the TP line is deleted
• the SL line is deleted
• the original BUY or SELL signal label associated with that trade is deleted
• only a small CLOSED SL HIT label remains
This SL-specific cleanup keeps failed models visually concise.
The active trade model is educational and bar-based.
It does not simulate real broker execution.
━━━━━━━━━━━━━━━━━━━━━━
🚦 ONE ACTIVE TRADE AT A TIME
━━━━━━━━━━━━━━━━━━━━━━
The script includes one-active-trade-at-a-time logic.
If a visual trade model is active, the engine does not open another trade model until the current model closes.
Block Signals During Active Trade can also prevent new final signal labels from being accepted while the active model is open.
Allow New Signal on Exit Bar controls whether a new model can open on the same candle that closes the current model.
The default is disabled.
This design separates:
• market-level calculation
• sweep and reclaim detection
• permission to create a new trade model
The engine can continue updating structural levels and market context while a model is active.
However, the one-active-model rule prevents overlapping TP / SL boxes and conflicting lifecycle states.
This is a visual-management rule.
It is not a restriction on the user’s personal trading activity.
━━━━━━━━━━━━━━━━━━━━━━
⚠️ SAME-CANDLE TP / SL HANDLING
━━━━━━━━━━━━━━━━━━━━━━
The script begins checking TP and SL after the entry candle.
If both TP and SL are touched on the same later candle, standard OHLC data does not reveal the actual intrabar sequence.
The script therefore provides two selectable assumptions:
Stop First
The stop is processed before the target.
This is the default and more conservative assumption.
Target First
The target is processed before the stop.
This is the more optimistic assumption.
Neither option reproduces exact tick-level broker execution.
The model does not include:
• bid/ask spread
• slippage
• order latency
• partial fills
• queue priority
• execution venue rules
• intrabar tick order
Same-candle handling is a modeling choice required by the limits of standard bar data.
━━━━━━━━━━━━━━━━━━━━━━
🏷️ SWEEP RECLAIM LABELS
━━━━━━━━━━━━━━━━━━━━━━
The script uses separate labels for sweep events, reclaim signals, and trade results.
Sweep labels can display:
SWEEP HIGH
or:
SWEEP LOW
The Sweep Label Filter can show:
Important Only
Only sweeps that meet the active importance threshold receive visible labels.
All Valid
Every accepted sweep can receive a visible label.
The default Minimum Sweep Importance is 65.
BUY and SELL reclaim labels can use three display styles:
Full
Example:
▲ A+ BUY RECLAIM ▲
QUALITY • 87/100
or:
▼ A+ SELL RECLAIM ▼
QUALITY • 84/100
Compact
Displays a shorter direction, grade, and score format.
Icon
Displays a minimal directional icon and optional score.
Show Grade on Signal Labels controls A+, A, or B display.
Show Score on Signal Labels controls the 0–100 score display.
All dynamic label text uses bold and italic formatting.
Independent size controls are available for:
• sweep labels
• BUY / SELL signal labels
• TP / SL result labels
• confirmed pivot triangle markers
━━━━━━━━━━━━━━━━━━━━━━
📍 SWING LEVEL DISPLAY MODES
━━━━━━━━━━━━━━━━━━━━━━
The indicator includes several level-display modes.
All Active
Displays eligible Fresh, Armed, Swept, and Reclaimed swing levels according to the active color and line-style rules.
Armed + Events
Focuses on Armed, Swept, and Reclaimed levels.
Events Only
Shows levels primarily when a sweep or reclaim event has occurred.
Hidden
Keeps the level engine active while removing swing-level lines from the chart.
Level Line Style provides:
Adaptive
Changes the line appearance according to level state.
Solid
Uses solid lines.
Dashed
Uses dashed lines.
Dotted
Uses dotted lines.
Show Swing-High Levels and Show Swing-Low Levels can independently control each side.
Fade Older Levels can reduce the opacity of older stored levels.
Level Width controls line thickness.
The display mode affects chart presentation only.
It does not change the underlying sweep and reclaim calculations.
━━━━━━━━━━━━━━━━━━━━━━
🧹 LEVEL INVALIDATION
━━━━━━━━━━━━━━━━━━━━━━
Stored levels do not remain eligible forever.
A level can be removed or retired because:
• it exceeds Maximum Level Age
• a confirmed breakout exceeds the allowed invalidation distance
• its sweep state exceeds the active timeout
• it completes its reclaimed hold period
• its first penetration is rejected while First Penetration Only is active
• it is consumed after failing a final execution filter
• the maximum active-level capacity removes an older level
Breakout Invalidation uses ATR-normalized distance.
This helps distinguish a controlled sweep from a confirmed close that travels too far beyond an unswept level.
Sweep State Timeout limits how long a Swept level can wait for reclaim.
Reclaimed Level Hold Bars controls how long the line remains highlighted after a successful reclaim.
Consume Filtered Reclaims determines whether a reclaim candidate rejected by direction, bias, market, cooldown, cluster, or conflict rules is permanently retired.
Removing stale or invalid levels helps reduce repeated signals from outdated price references.
━━━━━━━━━━━━━━━━━━━━━━
📟 DASHBOARD
━━━━━━━━━━━━━━━━━━━━━━
The script includes a dashboard positioned in the bottom-right corner.
Dashboard modes include:
Full
Displays the broadest engine diagnostics.
Compact
Shows a reduced selection of important engine and trade information.
Trade Only
Focuses on the active trade lifecycle.
Off
Hides the dashboard.
The Full dashboard can display:
• active swing and reclaim configuration
• quality-filter mode
• Fresh, Armed, Swept, and Reclaimed level counts
• last sweep side
• last sweep type
• sweep depth
• last reclaim signal
• reclaim delay
• close location
• candle-body strength
• setup grade
• setup-quality score
• quality-component information
• selected candidate mode
• signal direction
• cooldown state
• trend-bias state
• market state
• active level
• latest block reason
• trade state
• Entry
• Stop
• Target
• risk distance
• selected RR
• total visual models
• wins and losses
• internal net R
• last model result
• current and best internal streaks
The dashboard is not TradingView Strategy Tester.
Its trade counters are based on the indicator’s own educational bar-based model.
They do not include spread, commission, slippage, latency, or real broker execution.
━━━━━━━━━━━━━━━━━━━━━━
🚨 ALERT SYSTEM
━━━━━━━━━━━━━━━━━━━━━━
Sweep Reclaim Entry Engine includes static TradingView alert conditions for:
• Swing High Swept
• Swing Low Swept
• Any Swing Sweep
• BUY Reclaim Confirmed
• SELL Reclaim Confirmed
• Any Reclaim Signal
• A+ Sweep Reclaim
• A Sweep Reclaim
• B Sweep Reclaim
• Sweep Reclaim Trade Opened
• Sweep Reclaim TP Hit
• Sweep Reclaim SL Hit
The script also includes optional dynamic alert() messages.
Dynamic messages can include:
• direction
• symbol
• timeframe
• grade
• quality score
• reclaimed level
• signal close
• Entry
• Stop Loss
• TP
• RR
• stop mode
• final model result
Dynamic Signal Alerts: A+ Only can restrict dynamic final-signal alerts to A+ setups.
Alert filtering affects alert delivery only.
It does not change chart calculations.
Alerts are monitoring tools.
They do not execute trades or place broker orders.
━━━━━━━━━━━━━━━━━━━━━━
🔔 HOW TO USE ALERTS
━━━━━━━━━━━━━━━━━━━━━━
A practical alert workflow:
1. Add Sweep Reclaim Entry Engine [trade_w_samet] to the chart.
2. Select the desired swing, sweep, reclaim, quality, bias, and trade-model settings.
3. Open TradingView’s Create Alert window.
4. Select the indicator as the alert condition.
5. Choose the required static condition.
6. Use BUY Reclaim Confirmed or SELL Reclaim Confirmed for direction-specific signals.
7. Use Any Reclaim Signal for either direction.
8. Use A+, A, or B conditions when grade-specific monitoring is needed.
9. Enable Dynamic alert() Messages when detailed runtime messages are preferred.
10. Select Any alert() function call for dynamic messages.
11. Choose an alert frequency suitable for confirmed-candle monitoring.
12. Test the alert before depending on it.
13. Confirm every event with personal analysis and risk management.
Alert delivery can depend on:
• TradingView servers
• the user’s alert settings
• symbol data availability
• chart timeframe
• realtime feed status
• webhook destination availability
The indicator cannot guarantee alert delivery or external execution.
━━━━━━━━━━━━━━━━━━━━━━
🧪 HOW TO USE THE INDICATOR
━━━━━━━━━━━━━━━━━━━━━━
A practical workflow:
1. Add Sweep Reclaim Entry Engine [trade_w_samet] to a standard candlestick chart.
2. Begin with the default Structural swing mode.
3. Keep Reclaim Strength Mode on Strict while learning the engine.
4. Keep Quality Filter Mode on Strict when a selective default is preferred.
5. Confirm that the selected higher timeframe is above the chart timeframe.
6. Observe the stored swing-high and swing-low levels.
7. Watch for a level to move from Fresh to Armed.
8. Review whether the penetration appears controlled rather than excessively deep.
9. Wait for the reclaim candle to close.
10. Review the BUY or SELL label, grade, and quality score.
11. Check the bottom-right dashboard for bias, market state, block reason, and active trade.
12. Treat Entry, SL, and TP as visual references only.
13. Compare the setup with personal structure, liquidity, session, volatility, and risk rules.
14. Use alerts for monitoring rather than blind execution.
15. Test the exact symbol, timeframe, session, and settings personally used.
16. Review historical TP models and concise CLOSED SL HIT labels to understand the visual lifecycle.
The indicator is best used as a structured sweep-reclaim review tool.
It should not be used as an automatic decision-maker.
━━━━━━━━━━━━━━━━━━━━━━
⚙️ SETTINGS REFERENCE
━━━━━━━━━━━━━━━━━━━━━━
⚙️ Core Swing Engine
Swing Mode
Selects Reactive, Balanced, Structural, or Custom.
Custom Left Bars
Controls left-side pivot sensitivity in Custom mode.
Custom Right Bars
Controls right-side pivot confirmation in Custom mode.
ATR Length
Controls ATR normalization throughout the engine.
━━━━━━━━━━━━━━━━━━━━━━
📍 Level Management
Maximum Active Levels Per Side
Limits stored swing highs and lows separately.
Maximum Level Age
Removes old inactive levels.
Level Merge Tolerance — ATR
Prevents near-duplicate swing levels.
Armed Distance — ATR
Controls how close price must move before a Fresh level becomes Armed.
Breakout Invalidation — ATR
Controls the confirmed-close distance that invalidates an unswept level.
━━━━━━━━━━━━━━━━━━━━━━
🌊 Sweep Detection
Sweep Penetration Mode
Selects Wick Only, Wick or Body, or Body Required.
Minimum Sweep Depth — ATR
Rejects insignificant penetrations.
Maximum Sweep Depth — ATR
Rejects excessively deep penetrations.
First Penetration Only
Allows only the first interaction attempt.
Multi-Level Sweep Handling
Selects Nearest Valid Level or All Valid Levels.
Block Dual-Side Sweep Bars
Prevents one candle from registering both a high-side and low-side sweep.
Sweep State Timeout
Controls how long a Swept level can wait for reclaim.
━━━━━━━━━━━━━━━━━━━━━━
✅ Reclaim Confirmation
Reclaim Window
Selects Same Candle, Fast, Flexible, or Custom.
Custom Reclaim Bars
Controls the reclaim window in Custom mode.
Reclaim Strength Mode
Selects Loose, Balanced, Strict, or Custom.
Custom Close Buffer — ATR
Controls reclaim distance beyond the level.
Custom Close Location
Controls directional close quality.
Custom Body Strength — ATR
Controls minimum reclaim-candle body size.
Custom Wick Rejection Ratio
Controls same-candle rejection-wick quality.
Require Directional Candle Body
Requires bullish or bearish candle direction.
Require Same-Candle Wick Rejection
Requires the active wick threshold for immediate reclaims.
Block Dual-Side Reclaim Bars
Prevents both directions from confirming on one candle.
Reclaimed Level Hold Bars
Controls how long a reclaimed level remains highlighted.
━━━━━━━━━━━━━━━━━━━━━━
💎 Quality Engine
Quality Filter Mode
Selects Loose, Balanced, Strict, or Custom.
Custom Minimum Quality
Controls the manual minimum from 50 to 100.
Include Relative Volume
Adds the relative-volume component.
Relative Volume Length
Controls the volume baseline.
Volatility Regime Length
Controls the ATR-regime baseline.
Show Grade on Signal Labels
Displays A+, A, or B.
Show Score on Signal Labels
Displays the 0–100 quality score.
━━━━━━━━━━━━━━━━━━━━━━
🎯 Signal Execution
Signal Direction
Selects Both, Long Only, or Short Only.
Candidate Selection
Selects Highest Quality or Nearest Level.
Cooldown Mode
Selects Off, Any Signal, or Same Direction.
Signal Cooldown Bars
Controls the time-based delay.
Use Same-Direction Cluster Filter
Blocks nearby repeated signals.
Minimum Signal Distance — ATR
Controls the required distance from the previous same-direction signal.
Block Duplicate Signal Bar
Prevents repeated final signals on one candle.
Opposite-Signal Conflict
Selects Block Both, Higher Quality, BUY Priority, or SELL Priority.
Consume Filtered Reclaims
Retires reclaim candidates rejected by final execution filters.
━━━━━━━━━━━━━━━━━━━━━━
🧭 Bias & Market Filters
Trend Bias Mode
Selects Off, Chart EMA, Higher Timeframe EMA, or Combined EMA.
Chart EMA Length
Controls current-timeframe trend bias.
Higher Timeframe
Selects the HTF context.
Higher-Timeframe EMA Length
Controls the confirmed HTF EMA.
Require EMA Slope Agreement
Adds directional EMA slope.
Market Condition Filter
Selects Off, Volatility, Efficiency, or Combined.
Efficiency Length
Controls directional-efficiency calculation.
Minimum Efficiency
Controls the required efficiency ratio.
Minimum ATR Regime Ratio
Sets the lower volatility boundary.
Maximum ATR Regime Ratio
Sets the upper volatility boundary.
The default HTF layer uses previous completed higher-timeframe values.
float confirmedHTFClose = request.security(
syminfo.tickerid,
higherTimeframe,
close[1],
gaps = barmerge.gaps_off,
lookahead = barmerge.lookahead_on
)
float confirmedHTFEMA = request.security(
syminfo.tickerid,
higherTimeframe,
ta.ema(close, higherTimeframeBiasLength)[1],
gaps = barmerge.gaps_off,
lookahead = barmerge.lookahead_on
)
━━━━━━━━━━━━━━━━━━━━━━
📈 Trade Model
Enable Trade Model
Enables Entry, SL, TP, and lifecycle visualization.
Stop-Loss Mode
Selects Entry ATR Multiplier or Sweep Extreme + ATR Buffer.
Sweep-Extreme Buffer — ATR
Controls protective distance beyond the sweep extreme.
Entry ATR Stop Multiplier
Controls ATR stop distance from Entry.
Risk / Reward Target
Controls target distance from 0.25R to 15R.
TP / SL Same-Bar Priority
Selects Stop First or Target First.
Block Signals During Active Trade
Maintains the one-active-model structure.
Allow New Signal on Exit Bar
Controls same-bar reopening.
Show TP / SL Boxes
Shows or hides risk/reward areas.
Show Entry / TP / SL Lines
Shows or hides price-reference lines.
Show Historical Trades
Keeps completed TP models.
Maximum Historical Trades
Limits stored completed visuals.
Show TP / SL Result Labels
Controls TP HIT and CLOSED SL HIT labels.
━━━━━━━━━━━━━━━━━━━━━━
🔔 Alert System
Enable Dynamic alert() Messages
Activates detailed runtime alerts.
Alert Final BUY / SELL Signals
Enables final-signal messages.
Dynamic Signal Alerts: A+ Only
Restricts dynamic signal messages to A+ setups.
Alert Trade Model Open
Sends Entry, SL, TP, RR, grade, and quality.
Alert TP / SL Result
Sends model-result messages.
━━━━━━━━━━━━━━━━━━━━━━
🎨 Visual Settings
Visual Profile
Selects Full, Clean, Minimal, or Mobile.
Level Display
Selects All Active, Armed + Events, Events Only, or Hidden.
Level Line Style
Selects Adaptive, Solid, Dashed, or Dotted.
Signal Label Style
Selects Full, Compact, or Icon.
Dashboard Mode
Selects Full, Compact, Trade Only, or Off.
Active Trade Zone Transparency
Controls TP / SL fill transparency.
Active Trade Border Transparency
Controls TP / SL borders.
Active Trade Line Width
Controls trade-line thickness.
Fade Completed Trades
Fades completed TP models.
Completed Trade Transparency
Controls historical fading.
Theme
Selects Crimson, Ice Blue, or Monochrome.
Show Swing-High Levels
Controls high-side levels.
Show Swing-Low Levels
Controls low-side levels.
Show Important Sweep Labels
Controls sweep-event labels.
Sweep Label Filter
Selects Important Only or All Valid.
Minimum Sweep Importance
Controls visible sweep quality.
Maximum Important Sweep Labels
Limits sweep-label history.
Show BUY / SELL Reclaim Signals
Controls final reclaim labels.
Maximum Reclaim Labels
Limits final signal-label history.
Fade Older Levels
Reduces old-level opacity.
Level Width
Controls swing-level line thickness.
Show Confirmed Pivot Markers
Controls pivot triangles.
Show Dashboard
Enables the dashboard.
━━━━━━━━━━━━━━━━━━━━━━
🛠️ Customization
Sweep Label Size
Controls SWEEP HIGH / SWEEP LOW labels.
Triangle Marker Size
Controls confirmed pivot triangles.
BUY / SELL Signal Label Size
Controls reclaim labels.
TP / SL Result Label Size
Controls result labels.
Dashboard Header Size
Controls dashboard titles.
Dashboard Text Size
Controls dashboard body text.
Color Mode
Selects Theme or Custom.
Custom color inputs control:
• swing-level states
• BUY / SELL backgrounds and text
• sweep-label backgrounds and text
• Entry, TP, and SL lines
• TP / SL fills and borders
• TP / SL result labels
• dashboard background, header, border, main text, and muted text
Input values and plotted marker values are hidden from the status line.
━━━━━━━━━━━━━━━━━━━━━━
🧠 WHAT MAKES THIS SCRIPT ORIGINAL
━━━━━━━━━━━━━━━━━━━━━━
Sweep Reclaim Entry Engine uses familiar analytical concepts such as:
• pivot highs and lows
• liquidity sweeps
• price reclaims
• ATR
• relative volume
• EMA bias
• market efficiency
• risk/reward projection
These concepts are not unique by themselves.
The originality of this script lies in how they are organized into one transparent sweep-reclaim workflow:
Confirmed pivot
→ separate high-side and low-side memories
→ ATR-normalized duplicate control
→ Fresh state
→ Armed state
→ penetration classification
→ minimum and maximum depth validation
→ Swept state
→ configurable reclaim window
→ close, location, body, and wick validation
→ eight-component quality score
→ A+ / A / B grade
→ multi-candidate comparison
→ cooldown, cluster, and conflict handling
→ chart and confirmed HTF EMA alignment
→ optional market-regime filtering
→ one-active-trade model
→ TP-specific historical preservation
→ SL-specific visual cleanup
→ static and dynamic alert delivery
→ bottom-right diagnostic dashboard
Distinctive implementation features include:
• separate lifecycle arrays for swing highs and swing lows
• a defined Armed state before sweep detection
• controlled minimum and maximum penetration depth
• wick/body sweep classification
• first-attempt retirement logic
• sweep-importance scoring separate from setup-quality scoring
• same-candle and multi-bar reclaim support
• transparent quality-component weighting
• Highest Quality and Nearest Level candidate selection
• multiple opposite-conflict resolution modes
• confirmed higher-timeframe EMA data
• ATR-normalized signal clustering
• full chart cleanup after SL
• independent sizing for every label and marker class
• status-line value suppression without hiding chart markers
• configurable targets up to 15R
The script is not a basic collection of unrelated filters.
Each module supports the same swing-sweep-reclaim process.
━━━━━━━━━━━━━━━━━━━━━━
⚠️ IMPORTANT PRACTICAL NOTES
━━━━━━━━━━━━━━━━━━━━━━
The indicator’s behavior depends heavily on settings and market conditions.
Signal frequency can change based on:
• Swing Mode
• pivot lengths
• maximum level age
• merge tolerance
• armed distance
• sweep penetration mode
• minimum and maximum sweep depth
• first-penetration logic
• multi-level selection
• reclaim window
• reclaim strength
• directional candle requirement
• same-candle wick requirement
• quality filter mode
• volume context
• direction restriction
• cooldown
• signal-cluster distance
• opposite-conflict mode
• chart EMA length
• HTF selection
• HTF EMA length
• market-condition filter
• volatility regime
• efficiency threshold
• active-trade restrictions
• symbol
• timeframe
• session
• data provider
• available chart history
A setting that appears selective on one market may behave differently on another.
Volume behavior can differ across forex, futures, equities, indices, and cryptocurrencies.
The higher-timeframe filter should use a timeframe meaningfully above the chart timeframe.
Structural mode confirms fewer and broader pivots than Reactive mode.
Strict reclaim and quality modes reduce signal frequency but do not guarantee better results.
Reactive or Balanced modes can increase frequency but can also increase chart noise.
Users should test the exact market, timeframe, session, and configuration they personally study.
━━━━━━━━━━━━━━━━━━━━━━
⚠️ LIMITATIONS AND SHORTCOMINGS
━━━━━━━━━━━━━━━━━━━━━━
This script has important limitations:
It does not guarantee profitable trades.
It does not predict future price movement.
It does not replace risk management.
It does not execute trades.
It does not place broker orders.
It does not include spread.
It does not include commissions.
It does not include slippage.
It does not include execution delay.
It does not include partial fills.
It uses bar-based OHLC data.
Same-candle TP / SL order cannot be known from standard OHLC bars.
Stop First and Target First are modeling assumptions.
Confirmed pivots require right-side bars before becoming available.
The quality score is not a win probability.
A+ is not a guaranteed outcome.
The dashboard is not TradingView Strategy Tester.
Internal model counters are not audited brokerage performance.
Historical boxes and labels do not guarantee future behavior.
Relative-volume quality depends on available volume data.
Higher-timeframe bias depends on the selected timeframe.
Market-efficiency filtering cannot identify every ranging condition.
ATR normalization does not make one configuration universal.
One-active-trade logic is a visual-management rule.
Data-feed differences can change historical pivots and signals.
Alert delivery depends on TradingView and user configuration.
Changing settings changes historical calculations.
Changing symbol, session, exchange, or timeframe changes the engine context.
For these reasons, Sweep Reclaim Entry Engine should be used as an educational decision-support and chart-analysis tool, not as a standalone automated strategy.
━━━━━━━━━━━━━━━━━━━━━━
👤 WHO THIS SCRIPT MAY BE USEFUL FOR
━━━━━━━━━━━━━━━━━━━━━━
This script may be useful for traders who:
• study liquidity sweeps
• monitor confirmed swing highs and lows
• distinguish a sweep from a reclaim
• prefer filtered signals instead of every wick event
• want a visible level lifecycle
• want ATR-normalized penetration thresholds
• want same-candle and multi-bar reclaim support
• want a transparent 0–100 quality framework
• want A+, A, and B setup grades
• want chart and confirmed HTF EMA context
• want optional market-regime filtering
• want Entry, SL, and TP visualization
• want one active model at a time
• want clean SL result handling
• want adjustable mobile and desktop presentation
• want alert-based monitoring
• want a structured educational analysis process
It may be less suitable for users who:
• want guaranteed buy/sell signals
• want a fully automated trading bot
• want every wick beyond every high or low
• expect the quality score to represent probability
• expect one configuration to work on every market
• require exact tick-level execution simulation
• expect displayed levels to match broker fills
• want an indicator to replace independent judgment
• expect alerts to execute orders automatically
━━━━━━━━━━━━━━━━━━━━━━
🧭 BEST PRACTICE SUGGESTIONS
━━━━━━━━━━━━━━━━━━━━━━
For a cleaner and more selective review:
• begin with Structural swing mode
• keep First Penetration Only enabled
• use Nearest Valid Level or Highest Quality according to preference
• keep Strict reclaim strength
• keep Strict quality filtering
• use Combined EMA bias
• select a valid higher timeframe
• use Same Direction cooldown
• keep the same-direction cluster filter enabled
• use Stop First for conservative same-candle modeling
• use Important Only sweep labels
• use Clean visual profile
• keep the dashboard in Compact or Full mode while learning
• use alerts for monitoring, not blind execution
For more active signal frequency:
• use Balanced or Reactive swing mode
• use Balanced reclaim strength
• use Balanced quality filtering
• reduce cooldown
• reduce minimum signal distance
• use Chart EMA or disable trend bias
• keep the hard market filter Off
• use All Valid sweep labels only when additional chart detail is useful
Always:
• review the structural level before the sweep
• confirm the reclaim candle has closed
• verify the setup fits personal market context
• compare the stop with nearby structure and volatility
• treat TP as a planning reference
• test the exact symbol and timeframe
• apply independent risk management and position sizing
━━━━━━━━━━━━━━━━━━━━━━
🔓 PUBLICATION NOTE
━━━━━━━━━━━━━━━━━━━━━━
Sweep Reclaim Entry Engine [trade_w_samet] is published as an educational and visual market-analysis tool.
The purpose of this description is to explain:
• what the script does
• how swing points are confirmed
• how levels are stored and managed
• how Fresh, Armed, Swept, Reclaimed, and Consumed states work
• how penetration type is classified
• how minimum and maximum sweep depth work
• how reclaim timing works
• how reclaim strength is evaluated
• how the 0–100 quality score is calculated
• how A+, A, and B grades are assigned
• how candidates are selected
• how cooldown and clustering operate
• how opposite-direction conflicts are handled
• how chart and confirmed HTF bias work
• how market-condition filters operate
• how Entry and Stop Loss are calculated
• how the RR target is projected
• how one-active-trade logic works
• how same-candle ambiguity is handled
• how active and completed visuals behave
• how SL-specific cleanup works
• what the dashboard displays
• what static and dynamic alerts do
• what the timing limitations are
• what the script’s limitations are
• why the implementation is original
The script is designed to support structured analysis.
It does not promise profitable results.
It does not remove market risk.
It does not execute trades.
It should not be used as a blind buy/sell system.
MAIN CHART SCREENSHOT PLAN
Use one clean standard candlestick chart.
Show the indicator with its default settings.
The screenshot should contain:
• one clearly visible confirmed swing level
• one visible SWEEP HIGH or SWEEP LOW event
• one BUY RECLAIM or SELL RECLAIM label
• one active Entry / TP / SL model
• the thick white Entry line
• the blue/cyan TP area
• the red SL area
• the bottom-right dashboard
• the symbol and timeframe
• the indicator title in the status line
Do not include:
• other indicators
• manual drawings
• unrelated labels
• social links
• promotional text
• performance claims
• account-profit screenshots
• non-standard candles
• excessive zoom
• hidden price candles
The screenshot should demonstrate the script’s normal default behavior and make the swing, sweep, reclaim, risk model, and dashboard easy to understand.
━━━━━━━━━━━━━━━━━━━━━━
🛡️ DISCLAIMER
━━━━━━━━━━━━━━━━━━━━━━
Sweep Reclaim Entry Engine [trade_w_samet] is provided for educational and informational purposes only.
It does not constitute financial, investment, trading, legal, or tax advice.
No indicator can guarantee future results.
Markets are uncertain, liquidity conditions change, volatility changes, and historical chart behavior does not ensure future performance.
Every user is responsible for their own:
• analysis
• validation
• risk management
• position sizing
• alert configuration
• trading decisions
• broker execution
• legal and tax obligations
The confirmed swing levels, lifecycle states, sweep labels, reclaim labels, quality scores, setup grades, bias states, market-condition states, Entry references, stop-loss levels, take-profit targets, TP / SL boxes, result labels, dashboard values, internal model counters, and alerts are visual analysis tools only.
The displayed Entry is not a guaranteed fill.
The displayed Stop Loss is not a broker order.
The displayed target is not a guaranteed objective.
The 0–100 quality score is not a win probability.
The A+, A, and B grades are not promises of performance.
The internal trade model does not include spread, commissions, slippage, latency, order-book conditions, or partial fills.
Use this script as a structured sweep-reclaim review and decision-support framework, not as a promise of profitability or a substitute for independent judgment.
Release Note
🔄 Minor UpdateThe default Swing Mode has been changed from Structural to Reactive.
This allows the indicator to detect shorter-term swing levels more quickly and provide a more responsive setup flow by default. All other modes remain available in the settings, and no other calculation logic has been changed.
สคริปต์โอเพนซอร์ซ
ด้วยเจตนารมณ์หลักของ TradingView ผู้สร้างสคริปต์นี้ได้ทำให้เป็นโอเพนซอร์ส เพื่อให้เทรดเดอร์สามารถตรวจสอบและยืนยันฟังก์ชันการทำงานของมันได้ ขอชื่นชมผู้เขียน! แม้ว่าคุณจะใช้งานได้ฟรี แต่โปรดจำไว้ว่าการเผยแพร่โค้ดซ้ำจะต้องเป็นไปตาม กฎระเบียบการใช้งาน ของเรา
Clean indicators & Systems 💻
Free & PRO+ tools, setup guides & books.➡️
🌐 tradewsamet.com
whop.com/joined/tradewsamet
Free & PRO+ tools, setup guides & books.➡️
🌐 tradewsamet.com
whop.com/joined/tradewsamet
คำจำกัดสิทธิ์ความรับผิดชอบ
ข้อมูลและบทความไม่ได้มีวัตถุประสงค์เพื่อก่อให้เกิดกิจกรรมทางการเงิน, การลงทุน, การซื้อขาย, ข้อเสนอแนะ หรือคำแนะนำประเภทอื่น ๆ ที่ให้หรือรับรองโดย TradingView อ่านเพิ่มเติมใน ข้อกำหนดการใช้งาน
สคริปต์โอเพนซอร์ซ
ด้วยเจตนารมณ์หลักของ TradingView ผู้สร้างสคริปต์นี้ได้ทำให้เป็นโอเพนซอร์ส เพื่อให้เทรดเดอร์สามารถตรวจสอบและยืนยันฟังก์ชันการทำงานของมันได้ ขอชื่นชมผู้เขียน! แม้ว่าคุณจะใช้งานได้ฟรี แต่โปรดจำไว้ว่าการเผยแพร่โค้ดซ้ำจะต้องเป็นไปตาม กฎระเบียบการใช้งาน ของเรา
Clean indicators & Systems 💻
Free & PRO+ tools, setup guides & books.➡️
🌐 tradewsamet.com
whop.com/joined/tradewsamet
Free & PRO+ tools, setup guides & books.➡️
🌐 tradewsamet.com
whop.com/joined/tradewsamet
คำจำกัดสิทธิ์ความรับผิดชอบ
ข้อมูลและบทความไม่ได้มีวัตถุประสงค์เพื่อก่อให้เกิดกิจกรรมทางการเงิน, การลงทุน, การซื้อขาย, ข้อเสนอแนะ หรือคำแนะนำประเภทอื่น ๆ ที่ให้หรือรับรองโดย TradingView อ่านเพิ่มเติมใน ข้อกำหนดการใช้งาน
