AetherEdge - Q-Learning Trendline Drawer
🖊️ Overview
A self-evolving auto-drawing engine that learns how to draw trendlines via tabular Q-Learning. It quantizes the market into a discrete state (trend posture, volatility regime, proximity to swing structure) and maps it through a state×action Q-table (a NeuraLib Q-head) to an optimal drawing action — anchor a support line, anchor a resistance line, steepen, flatten, or hold. When price breaks a line, the realized outcome feeds back as reward via Q(s,a) ← Q(s,a) + α[r + γ·maxₐ′Q(s′,a′) − Q(s,a)], so the agent itself learns which drawing behavior pays off in each market state. Every rendered line carries an expiry, with its learned strength (Q-value) reflected in color, width, and opacity.
🔶 Key Features
Tabular Q-Learning — a state×action Q-table held as a NeuraLib Q-head, updated by the Bellman rule
State quantization — trend, volatility, and proximity compressed into discrete bins for an interpretable finite state space
Self-evolving drawing policy — no prior knowledge; the optimal way to draw is learned from the live chart
Reward on break — realized post-break return becomes reward, with an extra reward when a line is respected (bounces)
AI-optimal trendlines — multiple optimal lines auto-generated and adjusted from learned strength
Expiry + strength encoding — each line has a lifespan; Q-derived strength drives color, width, and opacity; old lines fade
Exploration vs. exploitation — ε-greedy over drawing actions
Premium panel — the current state's Q-row (all action values), optimal action, policy decisiveness, and active/broken counts at a glance
🧠 Technical Architecture
The agent first quantizes the market into a discrete state. Three axes — trend posture (ATR-normalized fast/slow EMA gap), volatility regime (ATR ratio), and proximity to the nearest swing structure — are each split into a configurable number of bins and composed into a single state index. The state space is thus a finite trendBins × volBins × distBins, and the Q-table holds the value of every action for every state.
Each bar, the agent picks a drawing action via ε-greedy: with probability ε it explores (a random action); otherwise it exploits (the max-Q action for the current state). Once chosen, a trendline is constructed anchored on two swing pivots, with STEEPEN/FLATTEN actions biasing the slope. New lines too close to an existing one are suppressed to avoid clutter.
Learning is driven by break / respect events. When a line breaks, the lookahead return in the break direction accrues as reward; when price tests a line and respects it (bounces), a separate reward is added. On the next confirmed bar, the update Q(s,a) ← Q(s,a) + α[r + γ·maxₐ′Q(s′,a′) − Q(s,a)] is applied to the prior state-action. Each line's strength is the spawning Q-value squashed logistically to [0,1], driving color saturation, line width (strong lines are thicker), and opacity. As lifecycle management, expired and long-broken lines retire, and when over the cap the weakest (lowest-strength) line is pruned.
⚙️ Recommended Settings & Tuning Guide
BTC (1H–4H): Training Horizon 800–1500, α 0.2–0.3, γ 0.9, ε 0.08, Swing Sensitivity 8. State bins of 3 each give a standard granularity
ETH (1H–4H): As BTC, with Reward Lookahead 5–8 to value post-break follow-through
SOL (15m–1H): High volatility favors Volatility Bins 4 for finer regime classification, Break Buffer 0.1–0.15 to absorb fakeouts, Min Separation ≈ 0.8
XRP (1H–4H): Spike-prone; α ≈ 0.3 to learn fast, Respect Reward 0.4 to favor strong lines that bounce
Learning Rate α: higher (0.3–0.5) learns faster but values are noisier; lower (0.1–0.2) is stable but slower
State bins: more bins raise granularity but enlarge the state space and slow learning — balance against Training Horizon
ε (exploration): ~0.1 when studying drawing behavior; ~0.05 in live use to stabilize the policy
💡 How to Use in Practice

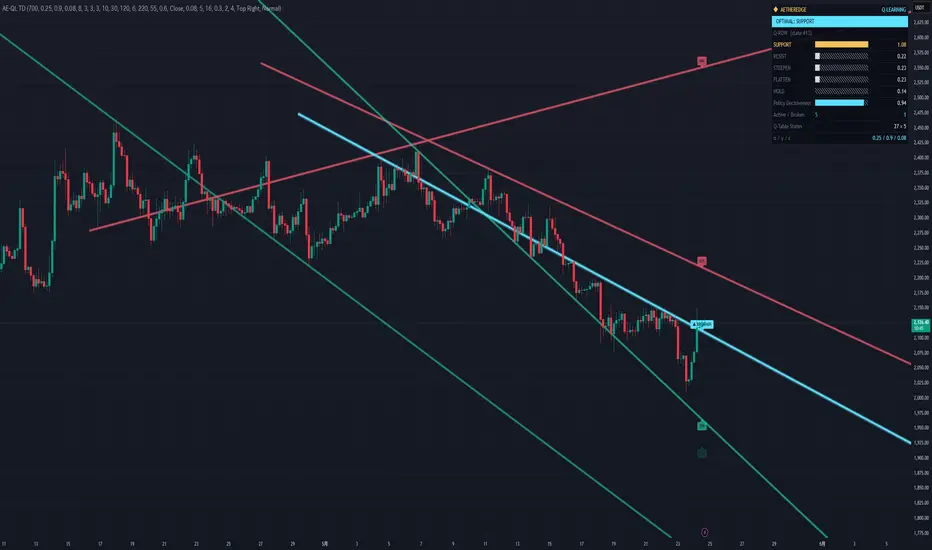

Reacting to AI-optimal lines: thick, saturated lines = high Q (high strength) = levels the agent learned matter. A reliable basis for S/R judgments
Reading strength (color/width): the thicker and more opaque a line, the higher its learned strength; treat faint, thin lines as tentative
Using breaks: on a break the line recolors (cyan up / gold down) and thickens; breaks of higher-strength lines matter more
Using respects (bounces): when price approaches a strong line and bounces, it marks a pullback/throwback entry in that line's direction
Multi-timeframe usage: map the major high-strength lines on the higher timeframe (4H), then time breaks/bounces on the lower one (15m–1H)
Combinations: pair with volume or horizontal S/R, filtering for high-strength lines to lift precision
⚠️ Important Notes
Initial learning period: right after launch the Q-table is near-zero and the drawing policy is immature; treat line strength as low-confidence until enough state visits accumulate (several hundred bars)
Learning resets: changing parameters, switching symbol/timeframe, or recompiling reinitializes the Q-table and the line set, restarting learning from zero
State-space constraint: more bins mean more unvisited states, whose lines rely on near-zero initial Q and thus show lower strength
On forward-looking reward: rewards use confirmed post-break lookahead returns (a standard RL training construct); current-bar drawing is on confirmed values, but as with any adaptive system, historical and live behavior can differ — always forward-test
Constraints: this is a lightweight tabular implementation operating within Pine's compute budget
🚨 Disclaimer
This indicator is an analytical and educational visualization tool. The Q-Learning, Q-table, reward shaping, trendline generation, and strength are quantitative heuristics computed on-chart from price data — they are not financial advice, buy/sell signals, or any guarantee of future performance. Reinforcement-learning agents can and do make wrong calls. Always combine any tool with your own analysis and disciplined risk management.
